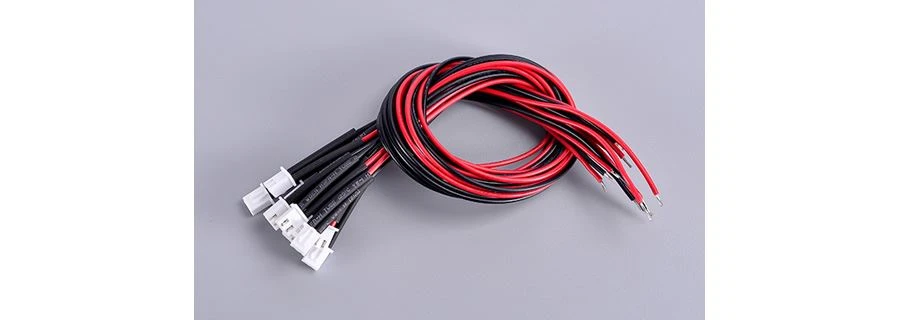

UL3122 shielded terminal wire harness uses the UL series rated voltage below 300. Like electrical and electronic equipment, instruments, machinery and home appliances, power or signal devices, they has certain heat resistance, the conductor can work for a long time at 80 ℃, and it can work at 60 ℃ in the environment exposed to oil and other solvents. The wire is shielded by winding and is relatively soft, especially suitable for recording, audio and video systems.
Structural characteristics of UL3122 shielded terminal wire harness:
1. Single or multiple strands of finely twisted bundles of 30-4AWG (tinned) bare copper wire.
2. Special SRPVC mixed core wire insulation (color can be customized according to customer requirements).
3. Aluminum foil Mylar tape is 100% covered and shielded.
4. (Tinned) copper wire shield braided or wrapped, the coverage rate is 85%.
5. Special PVC mixture outer sheath (color can be customized according to customer requirements).
Technical parameters of UL3122 shield terminal wire:
1. Working voltage: 300V.
2. Insulation resistance:> 20 GOhmxcm.
3. Minimum bending radius: 15x cable outer diameter.
4. Operating temperature range: Mobile installation: -5°C to +80°C, fixed installation: -40°C to +80°C.
5. Anti-radiation intensity: up to 80×106cJ/kg.
