Battery Cable Harness
A battery cable harness is an essential component in automotive and electronic applications, designed to efficiently distribute electrical power and signals. It is a meticulously assembled bundle of wires and cables, often encased in a protective sheath, that ensures a structured and secure electrical pathway. This harness is crucial for connecting multiple battery clusters, providing a centralized point for electrical flow, which simplifies installation and maintenance while enhancing overall safety and reliability.
What does a battery harness do?
A battery Cable Harness, also known as a battery cable harness, is a crucial component in electrical systems, particularly in vehicles and electronic devices
Centralized Power Distribution
It streamlines the flow of electricity from the battery to various components.
Enhanced Safety
Reduces the risk of shorts and electrical fires through organized cabling and protective over-moulding.
Simplified Installation
Offers a plug-and-play solution, minimizing installation time and potential errors.
Durability
Constructed with materials like PVC or XLPE that withstand harsh conditions and wear.
Flexibility
Accommodates different configurations and layouts, adaptable to specific application needs.
Maintenance Efficiency
Facilitates easier troubleshooting and repairs due to organized wiring.
Space Optimization
Saves space by bundling wires, which also protects against vibrations, abrasions, and moisture.

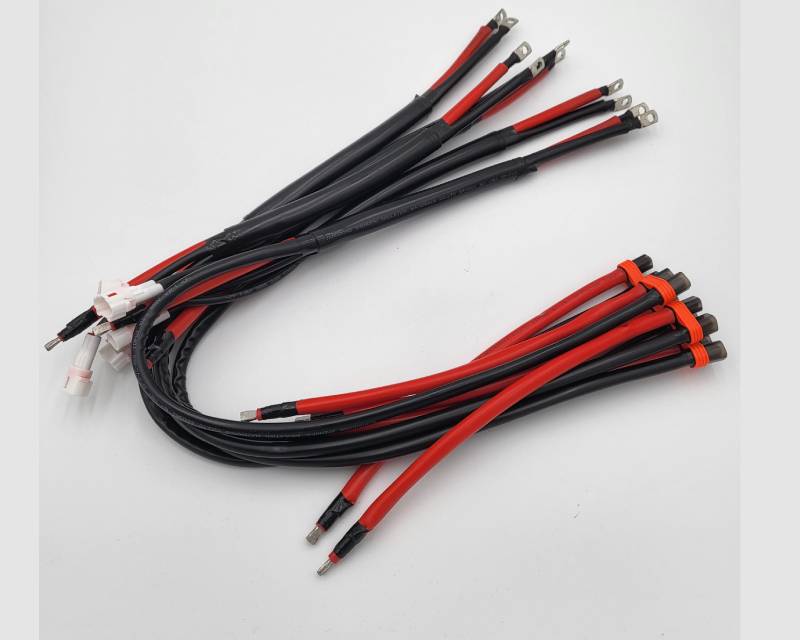

The primary materials available for Battery Cable Harnesses
By carefully assessing the specific needs of the application and the operating environment, can select the most appropriate materials for their Battery Cable Harness to ensure optimal functionality and reliability.
Conductors: Typically made from copper or aluminum, with copper being the preferred choice due to its superior conductivity. Tinned copper is often used for its added corrosion resistance.
Insulation: Common materials are synthetic rubber (Type SGR), thermoplastic (Type SGT), and cross-linked polyethylene (XLPE), each offering different levels of durability and temperature resistance.
When choosing materials for their Battery Cable Harness, they should consider the following factors
Electrical Requirements
The cable size and material should match the current and voltage requirements of the application.
Environmental Conditions
If the harness will be exposed to extreme temperatures, chemicals, or moisture, materials with higher resistance to these conditions should be selected.
Mechanical Stress
For applications involving movement or vibration, materials that offer flexibility and abrasion resistance are important.
Regulatory Compliance
Certain applications may require materials that meet specific industry standards for safety and performance.
The manufacturing process of battery Cable Harness is a complex process that ensures the delivery of a high-quality, reliable product
This structural approach to manufacturing battery Cable Harness guarantees performance and durability, making them a critical component in a variety of electrical systems.

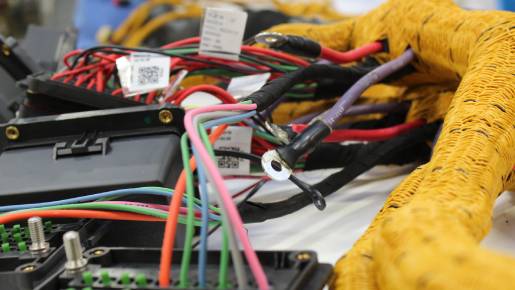

Wire Processing and Insulation
The wires are first cut and stripped to the required length using automated machinery. The exposed wire ends are then fitted with terminals or connectors. Afterwards, the wires are insulated, usually using materials such as silicone rubber, which is chosen for its ability to withstand extreme temperature changes and flexibility. This stage is critical to ensure that the Battery Cable Harness is protected from environmental factors and electrical interference.

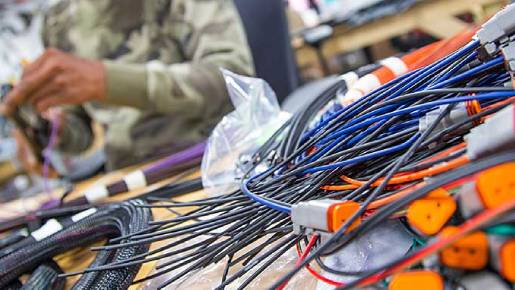

Assembly and Connection Process
During the assembly stage, the prepared wires are organized according to the harness design. They are passed through protective sleeves or conduits, bundled together, and connected to their respective terminals or connectors. This process may involve crimping, soldering, or ultrasonic welding to ensure a secure mechanical and electrical connection. The assembly must be compact, efficient, and easy to install.

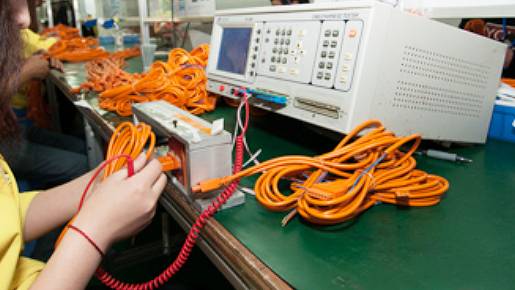

Quality Inspection and Certification
The final stage involves rigorous electrical performance testing, including continuity, insulation resistance, and current carrying capacity. The harness is also inspected for any physical defects and compliance with industry standards, such as IPC/WHMA-A-620, which specifies standards for cable and harness assemblies. After passing all tests, the harness is certified, indicating that it meets the required quality and safety standards.
The battery cable harness in NEVs is not just a cluster of wires
In NEVs, the Battery Cable Harness acts as a lifeline, connecting the high-voltage battery pack to various components that require power, such as electric motors, inverters, on-board chargers, and DC converters.
it's a sophisticated component that plays a pivotal role in the vehicle's performance, safety, and efficiency. As NEVs evolve towards more intelligent and networked systems, the design and functionality of battery cable harnesses will continue to advance to meet the demands of this dynamic field.
Power Transmission
The Battery Cable Harness transmits high-voltage power from the battery to the vehicle's powertrain and auxiliary systems, ensuring efficient vehicle operation.
01
Safety and Reliability
The harness is designed to handle the high currents and voltages unique to NEVs and has safety features to prevent electrical hazards.
02
Electromagnetic Compatibility
The Battery Cable Harness is designed to minimize electromagnetic interference, which is critical to the performance of the vehicle and the functionality of the on-board electronics.
03
Durability
The materials and design are optimized for durability to withstand the vibrations, temperature fluctuations, and other stresses typical of the automotive environment.
04
Energy Efficiency
A properly designed Battery Cable Harness reduces electrical losses, thereby improving overall energy efficiency.
05
Frequently Asked Questions
What is the purpose of battery cable in car?
+
-
• Connect the Battery to the Vehicle's Electrical System: It serves as the primary conduit through which electrical power is supplied from the battery to the starter motor, which starts the engine.
• Power Electrical Components: Once the engine is running, it helps distribute power to various electrical components such as the lights, radio, and air conditioning system.
• Grounding: It provides a path for electrical current to return to the battery, completing the circuit.
• Safety: The cables are insulated to prevent short circuits, which can lead to electrical fires or damage to the vehicle's electrical components.
Where do battery cables connect to the engine?
+
-
In a car's engine, the battery Cable Harness are crucial for providing the electrical energy necessary to start and run the vehicle. Here's where they typically connect:
• Positive Battery Cable: This cable connects the positive terminal of the battery to the starter motor, which is essential for starting the engine. It may also connect to the fuse box or power distribution center to supply power to the vehicle's electrical system.
• Negative Battery Cable: The negative cable is attached to a grounding point on the vehicle's chassis or engine block. This completes the electrical circuit and allows for a return path for the current.
