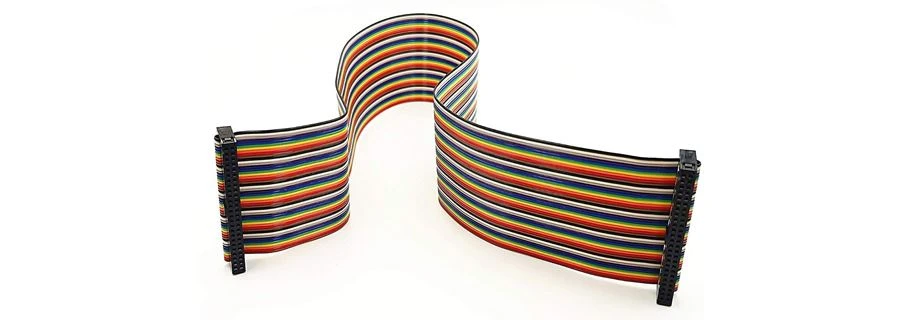

UL2651 rainbow flat ribbon cable is generally used in the internal connecting wires for electronics, electrical appliances and equipment, large transformers and lamps, and motor lead-out wires. It has the characteristics of softness, acid resistance, oil resistance, moisture resistance and mildew resistance.
UL2651 rainbow flat ribbon cable specification parameter introduction:
1. Rated temperature: 80°C ★Rated voltage: 300V~500V.
2. Larger conductor resistance at 20°C: 25Ω/km.
3. Outer diameter of the UL2651 rainbow flat ribbon cable is: 1.32MM, the spacing is: 0.15MM
4. Adhesive material: PVC polyvinyl chloride insulation material 45 Pa rubber material.
5. Conductors use 26-16AWG single or stranded bare copper or tinned copper wire.
6. Conductor structure of the product: using multi-copper wire stranding (AS stands for bare copper, TS stands for tinned copper), and jacket is called polyvinyl chloride (commonly known as PVC).
The colors of UL2651 rainbow flat ribbon cable are mainly red, black, white, yellow, green, blue, purple, brown, etc., other colors can be produced according to customer requirements.
