LVDS Cable Assemblies
LVDS cable assemblies are key components in modern electronics designed to enable fast and reliable data transmission. These assemblies utilize low voltage differential signaling, a technology that transmits information over twisted pair cables to minimize electromagnetic interference and power consumption while enabling high-speed data transmission. The LVDS standard, defined by ANSI/TIA/EIA-644-A, supports high data rates up to 2 Gigabits per second, making these cable assemblies suitable for demanding applications that require stable and efficient data transmission, including LCD TVs, automotive infotainment systems, industrial cameras, and communication systems due to their ability to efficiently handle large amounts of data. Their versatility and performance make them a must-have for engineers and designers when developing mixed-signal systems.
Advantages of LVDS Technology in High-Speed Data Transmission
At the heart of an LVDS cable assembly is a twisted pair cable that reduces crosstalk and electromagnetic interference. It uses differential signaling, where two wires transmit opposite signals. The receiving end measures the difference between the two, which is less susceptible to noise and can be transmitted faster and over longer distances without performance degradation. The low voltage nature of LVDS means it operates at around 1.2V, which significantly reduces power consumption and heat generation compared to other signal transmission methods.
High Data Rates
LVDS can achieve data rates of gigabits per second, making it ideal for applications that require fast data transmission, such as video streaming or high-speed networking.
Longer Cable Lengths
Due to its noise immunity, LVDS can transmit data over longer cable lengths without signal degradation, which is beneficial for large installations or equipment with dispersed components.
Low Power Consumption
The low voltage operation of LVDS means lower power consumption, which is critical for battery-powered devices and helps improve energy efficiency in large systems.
Reduced EMI
The differential signaling method inherently reduces EMI, minimizing the risk of interference with other electronic devices and enabling more stable, reliable data transmission.
About LVDS Cable Assemblies product types
LVDS Cable Assemblies come in various configurations to cater to different applications and requirements. These assemblies are typically used for connecting LCD screens, computer monitors, and other devices that require high-speed data transfer with minimal signal degradation. The choice of a particular type of LVDS Cable Assembly depends on the specific requirements of the application, such as the required data rate, the distance of data transmission, and the physical space available for the connectors and cables.

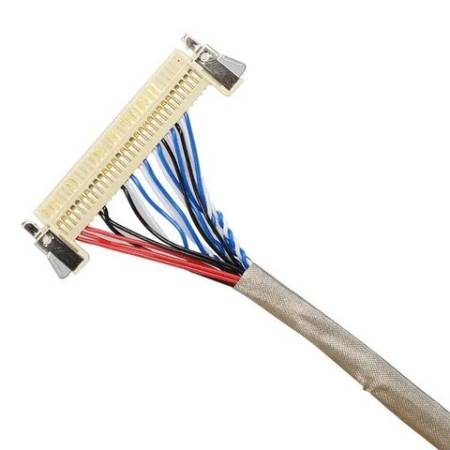

20-40 Pin 50cm CA4 Type
This type of LVDS cable assembly features a 20-position connector on one end and a 40-position connector on the other, with a cable length of 500mm. It's suitable for applications requiring medium-range data transmission.

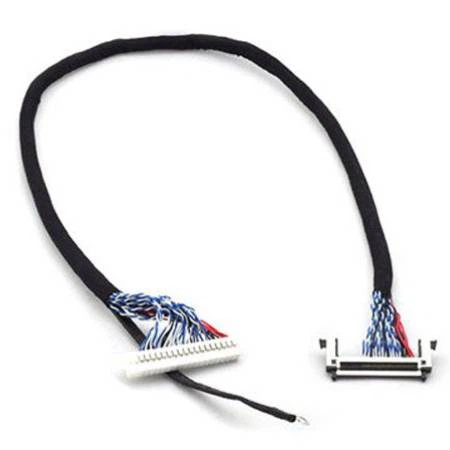

20-20 Pin 50cm CG2 Type
With both ends having a 20-position connector and a cable length of 500mm, this assembly is commonly used for standard video and data communication tasks.

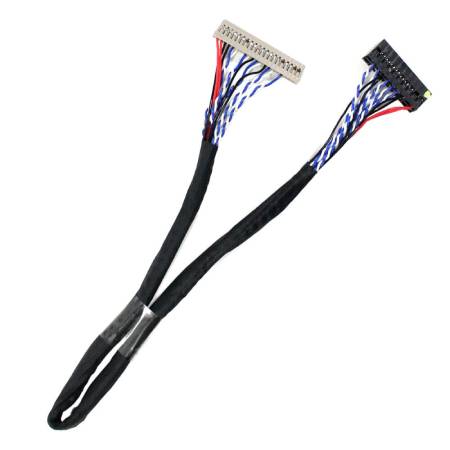

20-14 Pin 50cm IDA Type
This variant has a 20-position connector on one end and a 14-position connector on the other, also with a 500mm cable. It's often used in compact devices where space is limited.

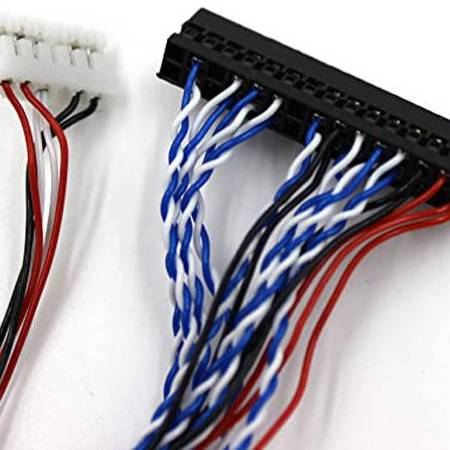

40-45 Pin 50cm BB4 Type
Featuring a 40-position connector and a 45-position connector with a 500mm cable, this type is designed for high-density connections, often found in advanced video applications and large displays.

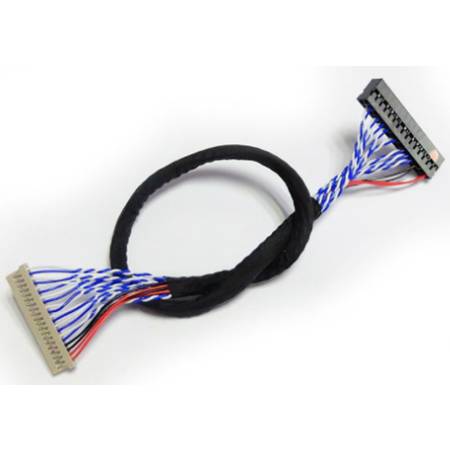

20-20 Pin 50cm AE2 Type
Similar to the CG2 type, the AE2 type also has 20-position connectors on both ends and a 500mm cable, but it may differ in the specific connector design or compatibility with certain devices.
LVDS Cable Assemblies Main Applications
These applications highlight the versatility and efficiency of LVDS Cable Assemblies in transmitting data across different platforms, ensuring performance and reliability in high-speed digital communication.
Computer Monitors and LCD Displays
LVDS Cable Assemblies are extensively used to connect LCD panels to the control circuitry in computer monitors and laptops. The high data transfer rate of LVDS technology is perfect for supporting the high-resolution and color depth of modern displays. It ensures smooth video playback and crisp image quality, which is essential for graphic design, gaming, and multimedia consumption.
Industrial Machine Vision Systems
In industrial settings, machine vision systems rely on LVDS Cable Assemblies for their ability to quickly transmit high volumes of data from cameras to processing units. The robustness of LVDS against noise and its low-voltage operation make it ideal for these environments, where precision and reliability are critical. These systems are used for quality control, inspection, and automation processes, where they help in identifying defects, guiding robotic arms, and other complex tasks.
Automotive Infotainment and Control Systems
The automotive industry utilizes LVDS Cable Assemblies in infotainment and control systems due to their high-speed data capabilities and resistance to the electromagnetic interference commonly found in vehicles. They enable the transfer of audio, video, and control signals between various components such as displays, cameras, and sensors. This is crucial for driver assistance systems, navigation, and providing entertainment to passengers.
