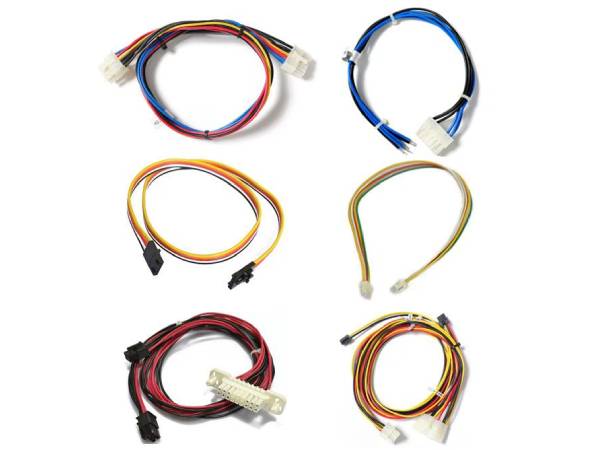

Molex Wiring Harness
What is the Molex wiring harness used for
Molex Wiring Harness are cable assemblies that provide reliable connections for a variety of industries. Molex offers a broad range of cable and wire harness technologies, including custom cable assemblies and wire harnesses, with high power, over molded, sealed and RF configuration options.
Molex wiring harnesses are used to transmit signals or electrical power within a device or between devices. They support reliable connections across almost every industry, including automotive, consumer electronics, telecommunications, industrial automation, and medical devices. Molex harnesses are known for their design flexibility , quality, and ability to meet specific application needs with custom and off-the-shelf solutions. They are essential components in systems where organized, durable, and efficient wire management is critical.
Features of Molex Wiring Harness
These characteristics ensure that Molex wiring harnesses can provide reliable and durable connections for a wide range of industrial applications
• Design Flexibility: Molex provides a variety of configurations, such as single- or dual-ended, straight or branched, and more, to meet specific design requirements.
• Quality Materials: They use UL-approved discrete wires that are ready for use in electronic appliance applications.
• Customization: Molex offers custom cable assemblies for production to meet unique design needs after prototyping is complete.
• High-Power Options: Their high-power cable assemblies deliver medium- to high-voltage options, ranging from 300 to 600V.
• Overmolded Cable Assemblies: These are designed with over-moulded strain relief, providing rugged protection at the interface between the connector and the jacketed cable.
• Positive Latching on Housings: This feature prevents accidental disconnects.
• Clean Body Terminals: They protect against the potential damage of terminals during handling and mating.
• Multiple Termination Options: Including IDT, crimp, solder, and welded terminations for application flexibility.
Customized Molex wiring harness Supplier and manufacturer-ECOCABLES
Over 20 years of custom wire harness manufacturing experience.
ECOCABLES has over 20 years of experience manufacturing wire harness kits and cable assemblies, and we can provide a variety of OEM wire harnesses for your project.
UL certification
ECOCABLES has a complete quality management system. All of our wire harness cables and raw materials are UL-listed.
Automatic wire harness production line
The automated production line meets a high production capacity of up to 1,000,000 PCS.
ROHS, REACH, HF, SGS
Our wire harness raw materials comply with ROHS, REACH and HF standards and pass SGS testing.
Various wire types
High-performance wires, PVC, SR-PVC, TFE, PTFE, PU, XLPE, etc., to meet unique applications.
Molex wiring harness includes

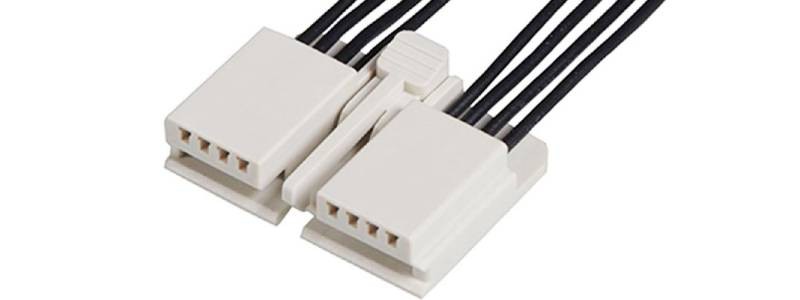

Discrete Wire Cable Assemblies
These Molex Wiring Harness assemblies are designed to be flexible and can accommodate either single-ended or double-ended configurations. They work with a variety of Molex connectors, ensuring compatibility with a variety of applications.

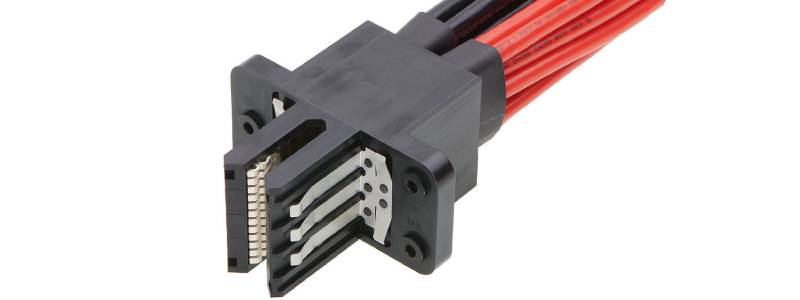

High Power Cable Assemblies
Molex's high-power cable assemblies handle medium to high-voltage applications with options ranging from 300 to 600V. These components are suitable for applications requiring strong power transmission.

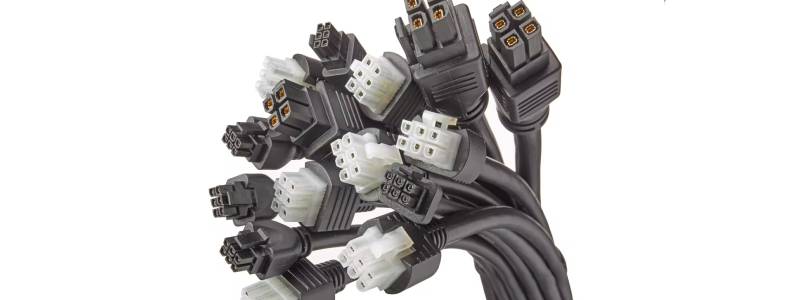

Overmolded cable assemblies
Molex's over-moulded cable assemblies provide rugged strain relief at the connector cable interface, making them ideal for applications requiring durability and reliability.

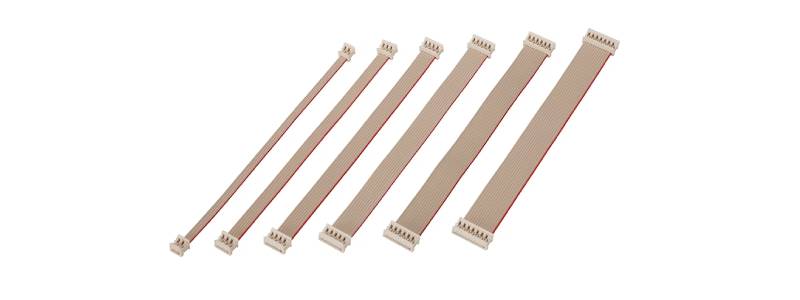

Picoflex Ribbon Cable Assemblies
Molex's Picoflex ribbon cable assemblies are available in multiple configurations using different IDT connector families, such as Picoflex and Milli-Grid and feature high vibration and strong impact resistance.

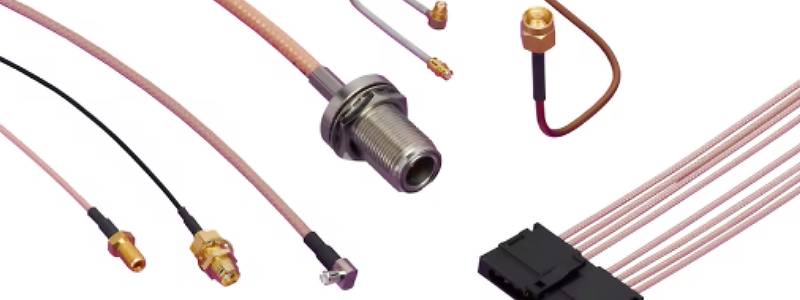

RF Custom Cable Assembly Solutions
Molex offers high-quality RF custom cable assembly solutions that accommodate a variety of cable types, including standard RG braided cable, micro coax, and semi-rigid cable for use in challenging environments.

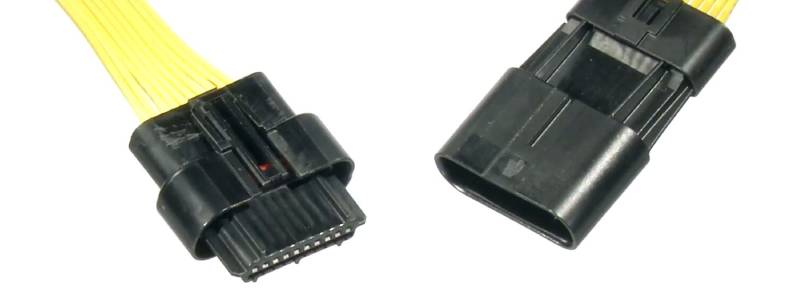

Sealed cable assemblies
Designed for harsh environment applications, Molex's sealed cable assemblies feature IP67 or IP69-rated connectors to ensure reliable connections even in the most demanding conditions.
Each Molex Wiring Harness product is precision crafted and reflects Molex's commitment to quality and innovation in providing efficient connectivity solutions
Molex Wire Harness Application
Molex wiring harnesses are integral components in a wide array of applications due to their reliability and versatility
Automotive And Commercial Vehicles
Molex wiring harnesses are used in a variety of automotive components such as headlight modules, firewall harnesses, taillights and power control modules. They ensure reliable electrical connections in vehicles, which are essential for safety and functionality.
Marine Equipment
In marine applications, Molex wire harnesses provide connections that can withstand the harsh conditions of the marine environment, including moisture and salt water exposure.
Military Equipment
The durability and reliability of Molex wire harnesses make them suitable for use in military equipment, which must meet stringent performance specifications under extreme conditions.
Recreational Vehicles
Molex wiring harnesses are also used in recreational vehicles where they aid in the operation of various systems within these vehicles.
Industrial Vehicles And Equipment
In industrial environments, Molex wire harnesses are used to ensure consistent performance and connectivity in demanding industrial environments.
Construction Equipment
Molex wiring harnesses in construction equipment provide rugged, durable connections that can withstand the harsh conditions of a construction site.
Frequently asked questions about Molex wiring harnesses
How Do Molex Wire Harnesses Ensure Signal Integrity?
Molex harnesses are engineered with quality materials and precision manufacturing to maintain excellent signal integrity.
What Certifications Do Molex Wire Harnesses Have?
Molex products are often UL-certified and meet various industry standards for safety and performance.
How Are Molex Wire Harnesses Tested For Quality?
Molex employs rigorous testing procedures, including electrical, mechanical, and environmental tests, to ensure product quality.
Are Molex Wire Harnesses Environmentally Friendly?
Molex is committed to sustainability and offers products that comply with environmental regulations like RoHS.
What Are The Benefits Of Using Molex Wire Harnesses In Automotive Applications?
Molex wire harnesses provide reliable signal and power transmission with features like polarized housing and terminal dimple to prevent incorrect insertion, crucial for automotive reliability.
How Do Molex BiPass I/O Connector Systems Serve As A PCB Alternative?
The BiPass I/O connector system uses low-insertion-loss copper twinax cables to enable efficient and reliable implementation of high-speed protocols, serving as an alternative to traditional PCB designs.
We're well-known as one of the leading molex wiring harness manufacturers and suppliers in China. Our factory offers customized molex wiring harness made in China with competitive price. Welcome to contact us for free sample.
