Flat Ribbon Cables
What Is Ribbon Cable?
Ribbon cable is a type of cable that has many conductors running parallel to each other on the same plane, making the cable design wide and flat. Its name comes from its resemblance to a ribbon. Ribbon cables are commonly used for internal computer peripherals such as hard drives, CD drives, and floppy drives.
The design of ribbon cable assemblies allows consistent spacing between wires, which is beneficial in reducing signal interference. This spacing is often called pitch and is often standardized to fit the connector.
What Are The Types Of Ribbon Cables?
Standard Ribbon Cable: Identified in gray and typically used in large-scale termination applications.

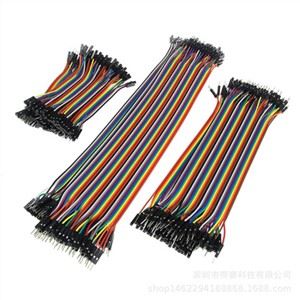

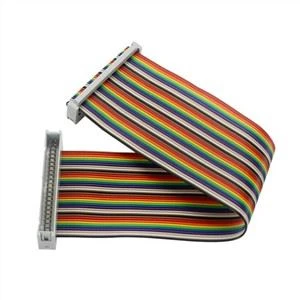

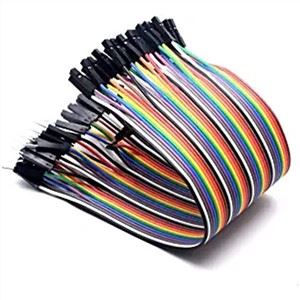

Rainbow Ribbon Cable: Similar to standard ribbon cable, but the wires are colored like a rainbow to aid organization and identification.

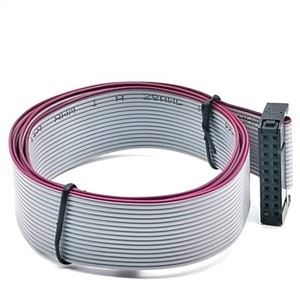

IDC Ribbon Cable: Features insulation piercing connectors (IDC) for easy connection without stripping.
Bonded Ribbon Cable: Can include single-connector, coaxial, and multi-conductor cables.
Coaxial Ribbon Cable: Sold in different widths and configurations, including gray, rainbow, and shielded.

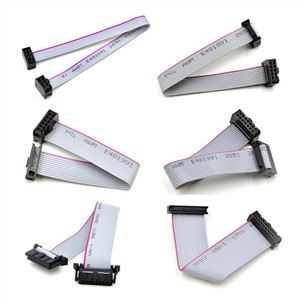

Custom
ECOCABLES has been involved in the harness cable industry since 2000. We are a professional manufacturer and supplier of wire and cable for customers. As a UL and ISO-certified company with more than 200 employees, we are committed to providing our customers with the highest level of customer service and product quality.
As a specialist manufacturer of wire harnesses and cable assemblies, we deliver positive results for every customer. You can rely on ECOCABLES to provide the best quality service at the best price for all your needs, including cable assemblies, custom wiring harnesses and more.
Please contact our ribbon cable supplier to learn more about our services or get a quote on your ribbon cable needs.
15K
Finished Projects
1280+
professional staff
15K
happy clients
92+
qin awards & certifacates
Its features and advantages
Ribbon cable has become a staple material in electronics due to its reliability and practicality, especially in the internal connections of computer systems, industrial machines, medical equipment, and automotive electronics. Their adaptability and efficiency make them the best choice for a variety of applications.
advantages of ribbon cable
Simple and easy to install: Its simple design allows for easy wiring in small spaces, and color coding facilitates fast and accurate connections.
Space Efficiency: The flat, low-profile design allows ribbon cables to be easily routed in compact equipment, saving valuable space.
Reduce signal crosstalk: The parallel arrangement of wires helps minimize signal interference between adjacent wires, thereby improving signal quality and reliability.
Customizability: Ribbon cables can be customized with length and number of conductors, making them suitable for a variety of applications.
Noise Reduction: Due to its design, ribbon cable reduces electromagnetic interference, helping to reduce noise in signal transmission.
Flexibility: Ribbon cables are semi-flexible and can be bent without breaking, which is especially useful in applications involving movement or tight configurations.
Lightweight and less rigid: Ribbon cable is lighter and less rigid than other types of cable, making it easier to physically handle.
Features of ribbon cable
Flat and Flexible Design: Ribbon cable is characterized by its flat, wide appearance, similar to a ribbon. The design consists of multiple wires running parallel to each other, enclosed within a single insulating material.
Color Coding: Often referred to as "rainbow cable," ribbon cables feature color-coded wires to simplify identification and connection to the correct pins.
Pitch: The pitch, or spacing between wires, typically ranges from 0.05 inches (1.27 mm) to 0.1 inches (2.54 mm), which allows the cable to fit into standard connectors.
Materials: The conductor is usually made from tinned copper wire, while the insulator is usually PVC, balancing flexibility, durability and effective insulation.

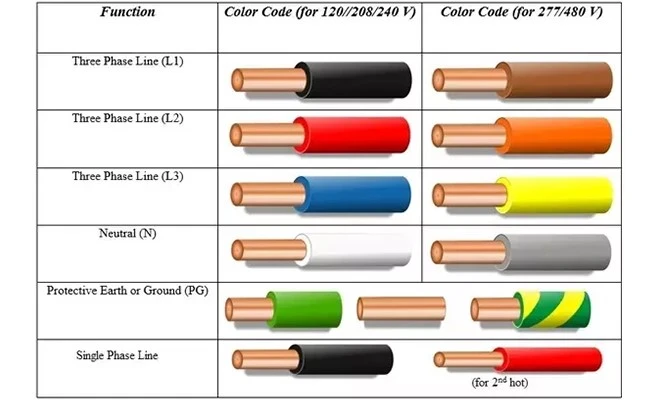

What Do The Ribbon Cable Color Codes Represent?
Color coding on the cables helps users identify individual conductors and prevents reverse connections.
Red Stripe: Typically used to mark one side of a cable. By convention, the edge with the red stripe connects to the pin on connector 1.
Rainbow Colors: To make it easier to identify individual conductors, ribbon cables often use a repeating color pattern. The pattern borrows from standard resistor color codes. For example, brown represents pin 1 (or pin 11, pin 21, etc.), red represents pin 2 (or pin 12, pin 22, etc.), and so on.
The use of color coding in ribbon cables simplifies the process of connecting the cable to the correct pins on the connector, reducing the risk of errors during electronic component installation.
Ribbon Cables Are Mainly Used For

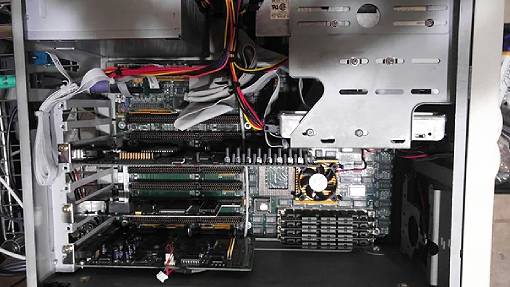

Computers: They are typically used in older computer systems to connect internal components such as hard drives, optical drives, and motherboards to the motherboard.

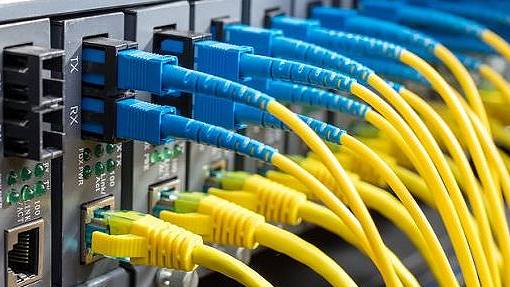

Telecommunications: Ribbon cables connect switches, routers, and other network equipment in telecommunications systems.

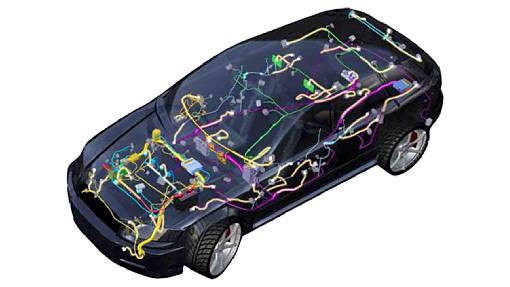

Automotive: In modern vehicles, ribbon cables are used to connect sensors, control units and other electronic components within the vehicle infrastructure.
Medical Devices: They are used in medical devices such as diagnostic equipment and patient monitoring systems, where reliability and compact form factor are critical.

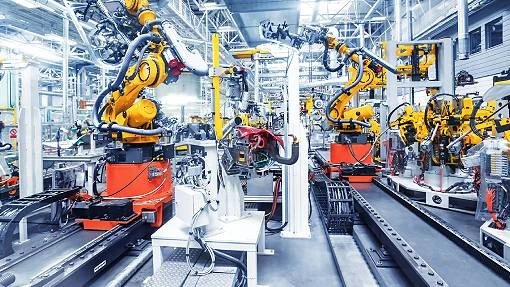

Industrial Machines: Ribbon cables are used in industrial machines, test and measurement equipment, automated termination equipment, robots, and pick and place equipment.

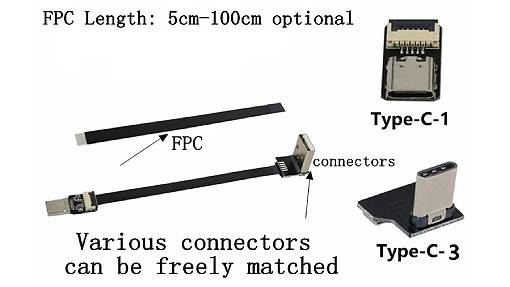

Consumer Electronics: They are also a part of many consumer electronics products, providing connectivity within the device due to their flexibility and space efficiency.
Computers
Telecommunications
Automotive
Medical Devices
Industrial Machines
Consumer Electronics
What Is Flexible Flat Cable?
A Flexible Flat Cable (FFC) is a type of electrical cable that is both flat and flexible, characterized by flat solid conductors. It’s a form of flexible electronics commonly found in high-density electronic applications such as laptops and cell phones1. FFCs are similar to ribbon cables but are typically thinner and used in situations where space is at a premium.

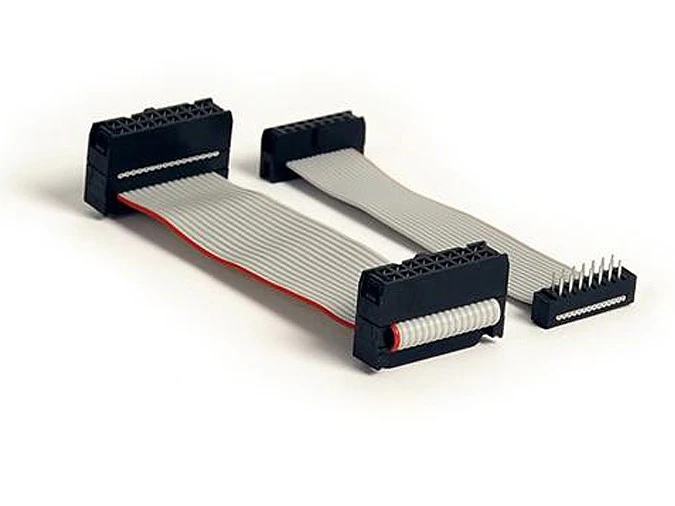

Ribbon Cable VS FFC
Ribbon cables and flexible flat cables (FFC) are both used to connect electronic components, but they have distinct differences in design and application.
Ribbon cables have multiple wires running parallel to each other, enclosed within a single insulating material. They are generally more durable and suitable for connections that do not require constant bending. Less flexible than FFC, making it less suitable for applications where the cable needs to be bent frequently.
Flexible Flat Cable (FFC) is similar to ribbon cable but is typically thinner and used where space is very limited. They are designed to be extremely flexible so they can be used in applications where the cable is frequently bent. Although they are flexible, they may not be as durable as ribbon cables in terms of handling and installation.
We're well-known as one of the leading flat ribbon cables manufacturers and suppliers in China. Our factory offers customized flat ribbon cables made in China with competitive price. Welcome to contact us for free sample.
