These 6 pin communication wire harnesses are 47mm long. One end of the cable has a matching molex 505565-0601 connector. The other end of cable has a matching female JST GH type receptacle connector. We like the solid and compact nature of these connectors and the latch that keeps the cable from coming apart easily.
| Product Name | 6 pin communication wire harness |
| Wire | UL AWM 10368#AWG26, 105℃ |
| Wire Length | 47.0mm±3.0 |
| Wire Color | Grey/orange/black/white/red/purple |
| Tube | Acetate cloth |
| Housing 1 | Molex 505565-0601 |
| Terminal 1 | Molex 5054311000 |
| Housing 2 | JST GHR-06V-S |
| Terminal 2 | JST SSHL-002T-P0.2 |
| Application | E-bike battery, MTB battery, range extender, in-tube battery E-motorcycle battery, moped battery, cargo battery Smart device battery, smart puricare mask battery |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |

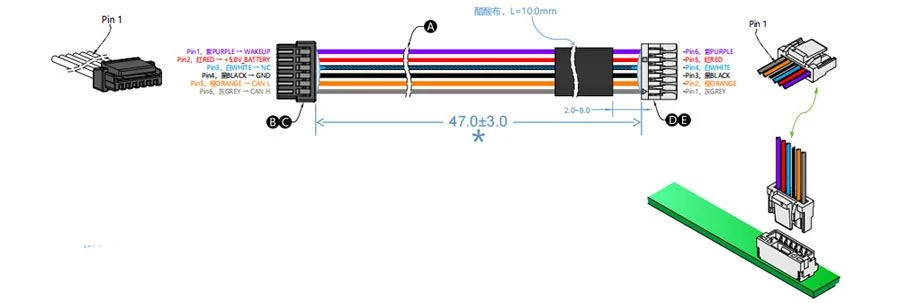

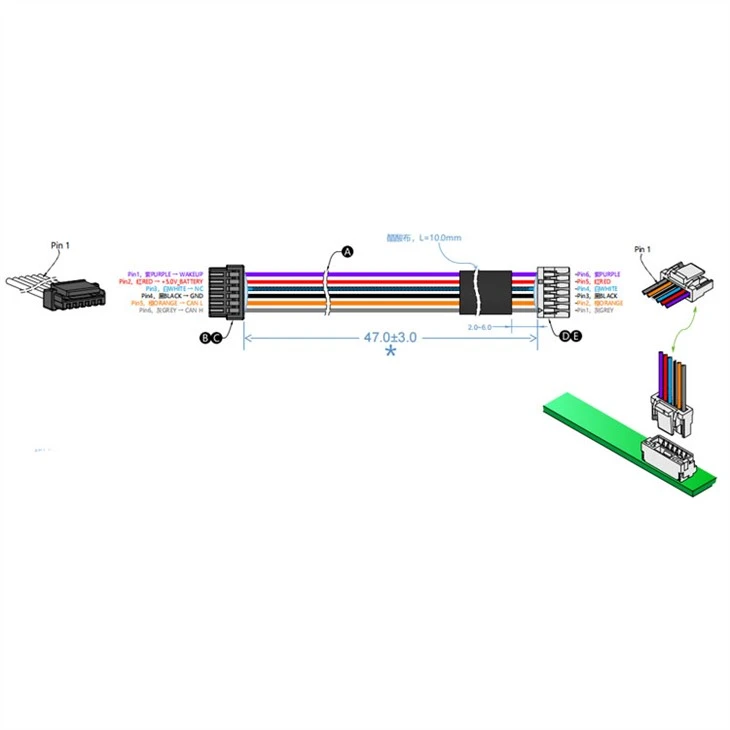

Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Shipping And Payment
FAQ
Q1: Do you customize products?
A1: Yes,we custom wire harness according to customers' requirement. Pls send us samples or drawing then we can move on.
Q2: Can you provide sample? Are they free?
A2: Yes, we could offer the sample for free charge but you need pay the cost of freight.
Q3: What is essential in order to get a wire harness quote?
A3: Drawing of wire harness.
Q4: If customer doesn't have a drawing, what else solution in order to get a quote?
A4: You just provide as many details as possible about your products including wire lengths, gauges, circuits, connector type, etc., and we can quote for you.You can also send us the sample, we will quote and make the sample for your approval.
