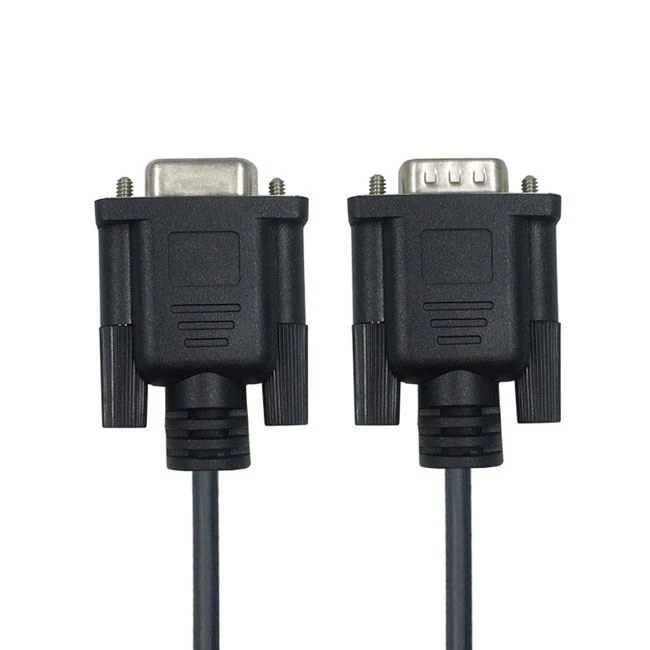

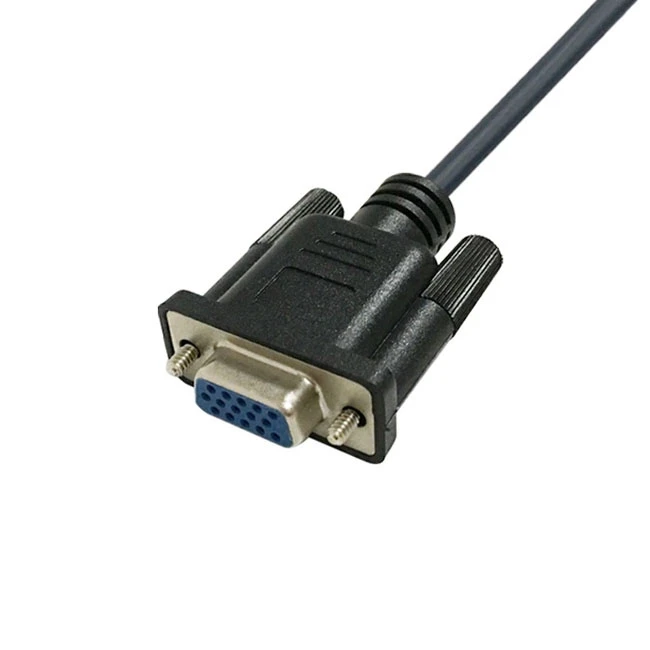

| Product Name | HD15 HD26 male female molded D-SUB cable |
Cable type | coaxial, 26AWG cable |
| Cable length | 1 ft to 25 ft or custom |
Jacket | PVC, black, light gray or custom |
Conductor | Bare Copper, Gold Plated, Nickel Plated |
Connector Type | D-SUB DB 15Pin male to female connector D-SUB DB 15Pin male to male connector D-SUB DB 26pin male to female connector D-SUB DB 26pin male to male connector |
Connector Color | light gray, black or custom |
| Application | Data transfer High density signal transmission OEM applications Serial communications |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Sample | available |
| Delivery Time | 3-15 days |
| Test | 100% tested before shipment |
| Service | OEM and ODM |
These HD15 HD26 male female molded D-SUB cable assemblies are completely shielded the entire cable to prevent data corruption EMI/RFI. The molded back shell provides superior strain relief, while robust 26 AWG conductor is wired through for compatibility. Metal screws ensure quick and convenient connection. Custom lengths and latches provide appropriate minimum requirements.
Features
● HDB15 HDB26 male to female / male to male connectors
● Wired straight through for extending serial devices/peripherals
● 360 degree fully shielded for protection against EMI/RFI
● Gold plated contacts provide reliable connections with repeated mating cycles
● Hex nuts on female connectors are removable to expose 4-40 thumb screws
● Molded backshells provide durability and increased strength at cable entry point
More D-SUB Cables
CHD15MF-1 | CHD15MF-10 | CHD15MF-15 | CHD15MF-2.5 |
CHD15MF-7.5 | CHD15MM-1 | CHD15MM-10 | CHD15MM-15 |
CHD15MF-25 | CHD15MF-5 | CHD15MM-2.5 | CHD15MM-25 |
CHD15MM-5 | CHD15MM-7.5 | CHD26MM-2.5 | CHD26MM-5 |
CHD26MF-1 | CHD26MF-10 | CHD26MF-15 | CHD26MF-2.5 |
CHD26MF-25 | CHD26MF-5 | CHD26MF-50 | CHD26MM-10 |
CHD26MM-1 | CHD26MM-15 |
Application
Applicable to computer and tax control machine, CNC machine tool, PDA, MODEM, set-top box, bar code machine, PLC, touch screen, industrial control, industrial control, industrial machine, instrument and other serial port equipment connection and transmission of their signals (RS232, 485, 422, etc.)
Production Process
Test Equipment
Good Quality comes from strict control on every process. The best equipment and the excellent technology make us get a lot of recognition from our customers.
 |  |  |  |
Our Advantage
● Low MOQ 100-500pcs
● 1-3 days prototyping
● DDU DDP terms
● BMW supplier
● ISO certified
● Rohs compliant material
● Original & equivalent/cross/replacement parts available: We offer original connectors such as Tyco, Delphi, AMP, Molex, JST, JAE, Deutsch, Hirschmann, FCI as well as its equivalent/cross/replacement to save money and shorten lead time.
● Other services: help customer to design custom connector and cable and connector mold/tooling
Certificate
How to Order
1. Talk to us about your ribbon cable - 2. You (or our engineer) provide drawing - 3. Confirm drawing - 4. quote - 5. Sample built - 6. Sample approved - 7. Payment - 8. Mass production - 9. Test before shipment - 10. Delivery
