| Product Name | Electric battery cable assembly |
| Housing 1 | JST PAP-02V-S |
| Terminal 1 | JST SPHD-001T-P0.5 |
| Housing 2 | MOLEX 505565-1001 |
| Terminal 2 | MOLEX 5054311000 |
| Housing 3 | JST VHR-3N |
| Terminal 3 | JST SVH-41T-P1.1 |
| Grommet | PVC hardness 65P |
| Cable 1 | 5.6 2×22AWG+2×16AWG, PVC+PVC |
| Connector 4 | 1206 female |
| Cable 2 | 3.7 4×26AWG, PVC+PVC |
| Connector 5 | Signal C female |
| Cable 3 | 5.8 3×1.20mm2+6×0.20mm3, FEP+PVC |
| Connector 6 | 1009 female |
| Range Of Working Temperature | -25C℃~80℃ |
| Voltage Resistance Test | AC 500V/2mA0.05S |
| Application | E-bike battery, MTB battery, range extender, in-tube battery E-motorcycle battery, moped battery, cargo battery Smart device battery, smart puricare mask battery |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |

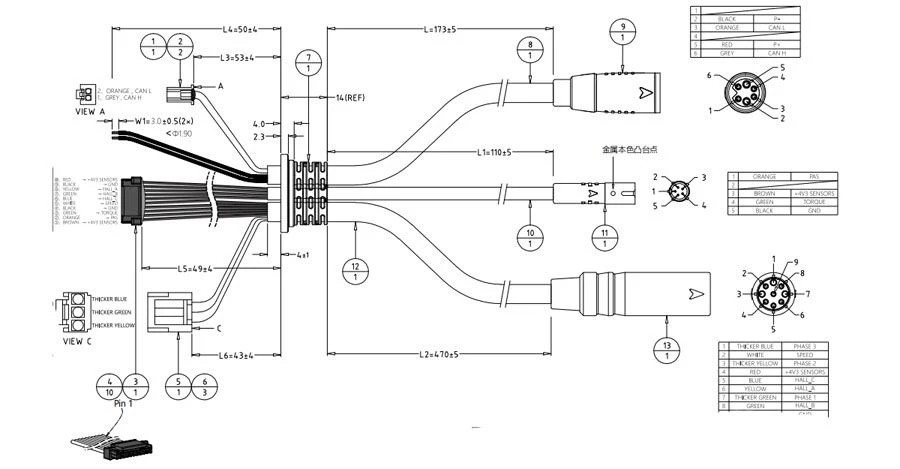

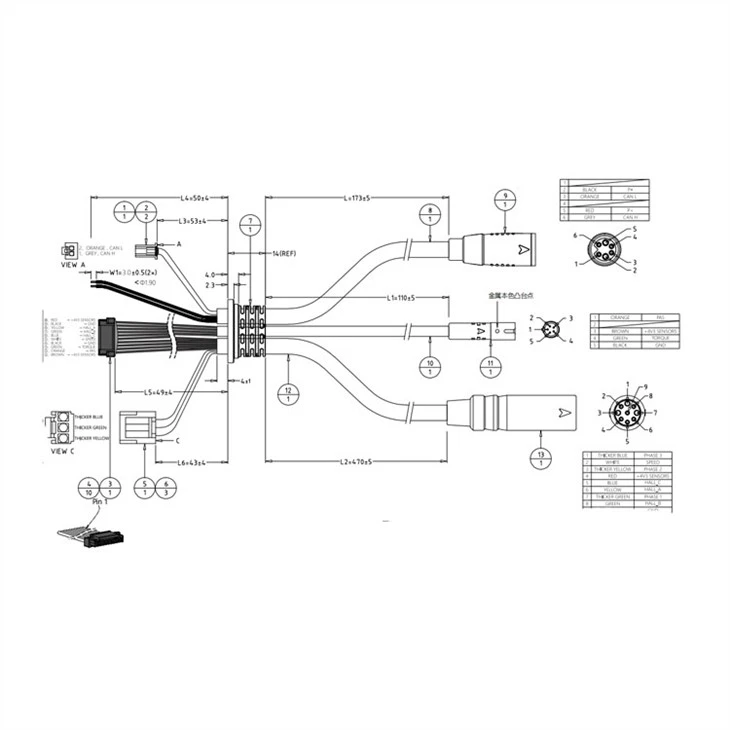

Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Shipping And Payment
FAQ
Q1. Can you provide the OEM service？
A1: Yes, we can offer the OEM service according to your requires.
Q2. What's the standard of the material quality?
A2: Our material can pass ROHS, Reach, HF.
Q3. Could I have a sample?
A3: Yes, the free sample can be offered but you need pay the cost of freight.
Q4. What is the production time?
A4: Sample time around 3~5 days. And mass production is in 15 days.
