This 65 pin voltage wiring harness length is 52.0mm. One end of the wire is a 5-pin Molex 505565-0501 housing with Molex 5054311000 terminal. The other end of the wire is a JST 5P-SZN housing with JJST SZN-002T-P0.7K terminal.
| Product Name | 5 pin voltage wiring harness |
| Wire | UL AWM 10368#AWG26，105℃ |
| Wire Length | 52.0±3.0 |
| Wire Color | red white white white white |
| Housing 1 | Molex 505565-0501 |
| Terminal 1 | Molex 5054311000 |
| Housing 2 | JST 5P-SZN |
| Terminal 2 | JST SZN-002T-P0.7K |
| Application | E-bike battery, MTB battery, range extender, in-tube battery E-motorcycle battery, moped battery, cargo battery Smart device battery, smart puricare mask battery |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |

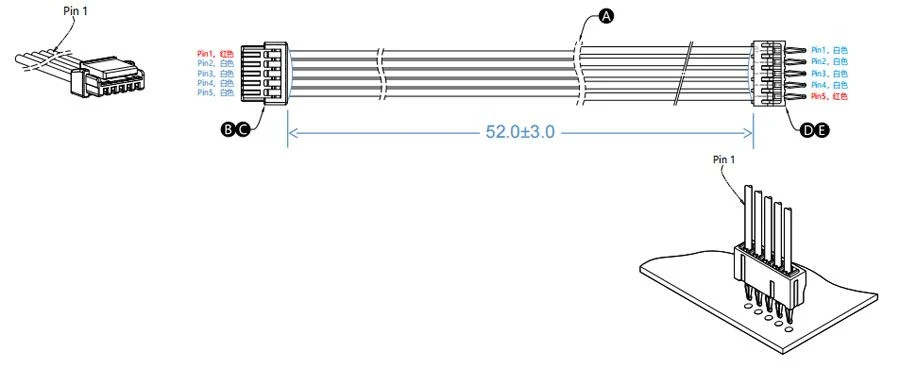

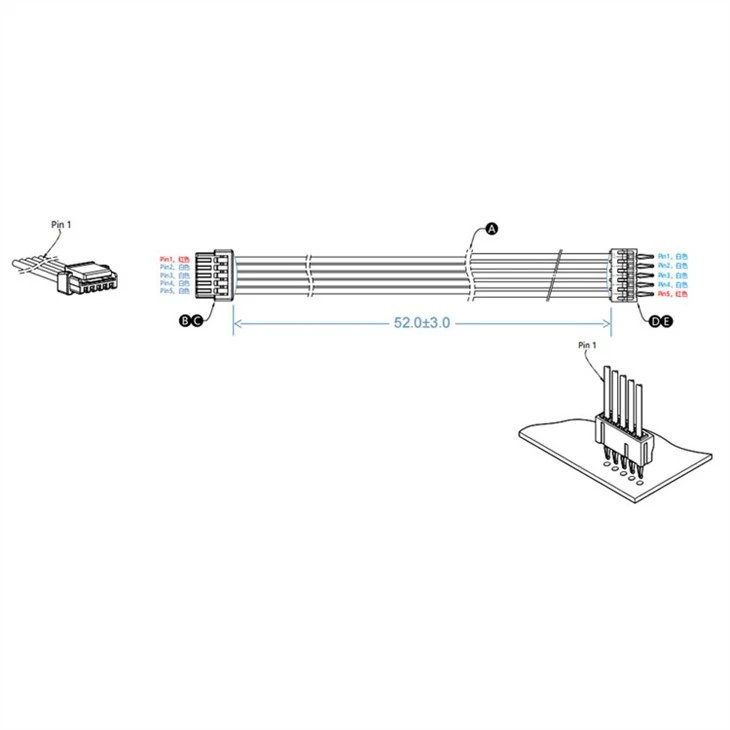

Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Shipping And Payment
FAQ
Q: Do you provide OEM Service?
A: OEM & ODM order is warmly welcome. More importantly, our R & D team will provide you professional suggestions.
Q: When will ship my order?
A: We will try our best to ship within 3-5 days once we get the payment confirmation.
Q: Which shipping term you can supply?
A: Air shipment, sea shipment, UPS, FEDEX, DHL, etc.
Q: How can I trace my order?
A: We will email you the tracking number.
