| Product Name | Molex 505565 series cable assembly |
| Housing | MOLEX 505565-1401 |
| Terminal | MOLEX 5054311000 |
| Cable 1 | 3.7 6×26AWG, PVC+ PVC |
| Cable 2 | 4.1 8×26AWG, PVC+PVC |
| Grommet | PVC hardness 65P |
| Connector 3 | 1109 female |
| Connector 4 | 1109 female |
| Range Of Working Temperature | -25C℃~80℃ |
| Voltage Resistance Test | AC 500V/2mA0.05S |
| Application | E-bike battery, MTB battery, range extender, in-tube battery E-motorcycle battery, moped battery, cargo battery Smart device battery, smart puricare mask battery |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |

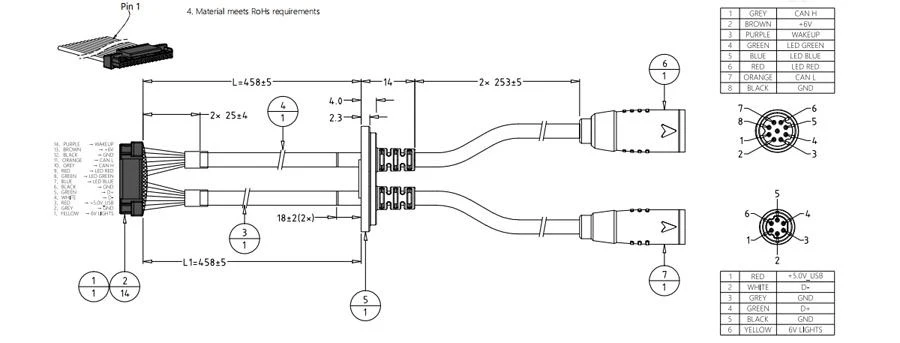

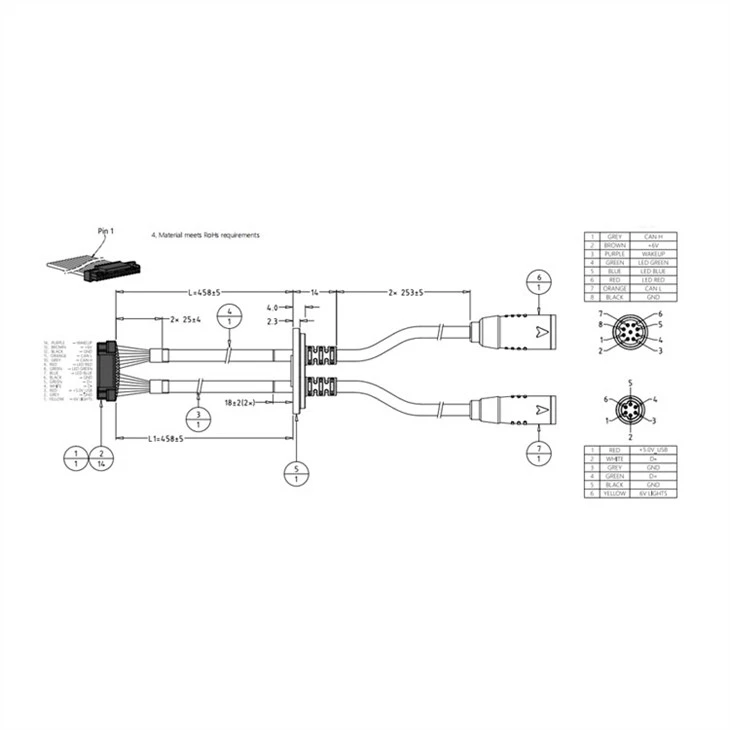

Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Shipping And Payment
FAQ
Q1: Do you customize products?
A: Yes, we can provide customized products according to the requirements of customers.
Q2: Can you provide sample? Are they free?
A: We can provide free samples, but we need you to pay for the cost of transportation.
Q3: What is your transport method?
A: Air shipment, sea shipment, UPS, FEDEX, DHL etc.
Q4: When can we receive the goods?
A: After receiving your payment, it usually takes 3-7 days for express delivery, but the actual time depends on the mode of transportation you choose.
