Smart Device Cable Assembly

Smart Device Cable Assembly

1. Molex 502578-0600
2. JST ZER-06V-S
3. C0606F, Impedance: 12.57mΩ
4. C0806F, Impedance: 2.32mΩ
Send Inquiry
Product Name
Smart device cable assembly
Cable 1AWG#26x6C(UL AWM 10368#AWG26)(105℃)
Tube 1PHR 65Pa, matte black, PVC, OD:Φ3.70±0.15mm
Cable 2AWG#26x6C(UL AWM 10368#AWG26)(105℃)
Tube 2PHR 65Pa, matte black, PVC, OD:Φ3.70±0.15mm
SRPVC(PHR 65Pa / 80 Shore A)
Housing 1Molex 502578-0600
Terminal 1
Molex 502579-0000
Housing 2Molex 502578-0600
Terminal 2Molex 502579-0000
Housing 3JST ZER-06V-S
Terminal 3JST SZE-002T-P0.3
Connector 4

C0606F, Impedance: 12.57mΩ

Connector 5C0606F, Impedance: 12.57mΩ
Connector 6

C0806F, Impedance: 2.32mΩ

Application

E-bike battery, MTB battery, range extender, in-tube battery

E-motorcycle battery, moped battery, cargo battery

Smart device battery, smart puricare mask battery

CertificationUL/VDE/CCC/CE/ROHS/SGS/REACH
ServiceOEM and ODM

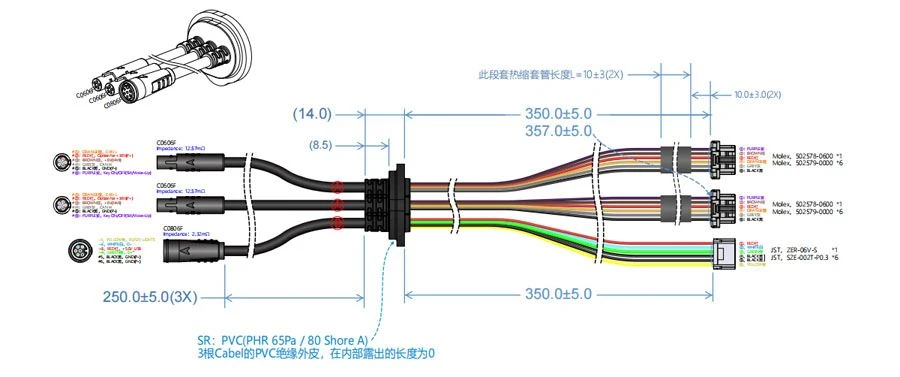

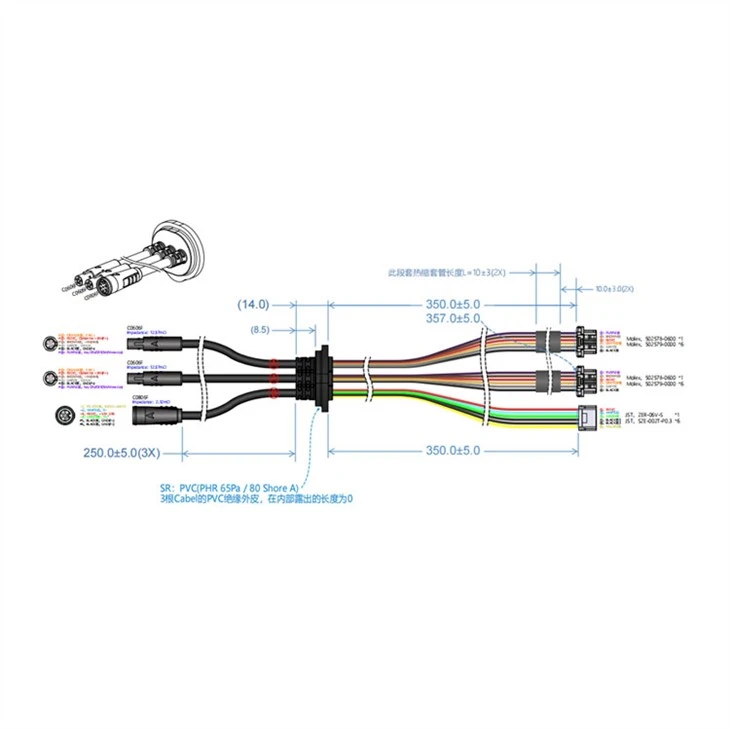

Drawing

Smart Device Cable Assembly (2)


Production Process

Wire cutting 1Terminal crimp 2Peeling 3Tin plating 4
Wire cuttingTerminal crimpPeelingTin plating
Assembly 5Twist 6Inspection 7Test 8
AssemblyTwistInspectionTest


Test Equipment

Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.

1-Salt spray tester2-Wire rod swing testing machine3-Conduction test machine4-Double-column electric force-control testing machine


Why Choose Us

wire harness 9wire harness 10wire harness 13wire harness 8wire harness 12wire harness 11
Professional teamBMW supplierFree sample
Quality guaranteeProcessing customDrawing customized


Shipping And Payment

Wiring Harness 2

FAQ

Q1. Can you provide the OEM cable assembly service？

A1: Yes, we can offer the OEM service according to your requires.


Q2. What's the standard of the material quality?

A2: Our material can pass ROHS, Reach, HF.


Q3. Could I have a sample?

A3: Yes, the free sample can be offered but you need pay the cost of freight.


Q4. What is the production time?

A4: Sample time around 3~5 days. And mass production is in 15 days.
