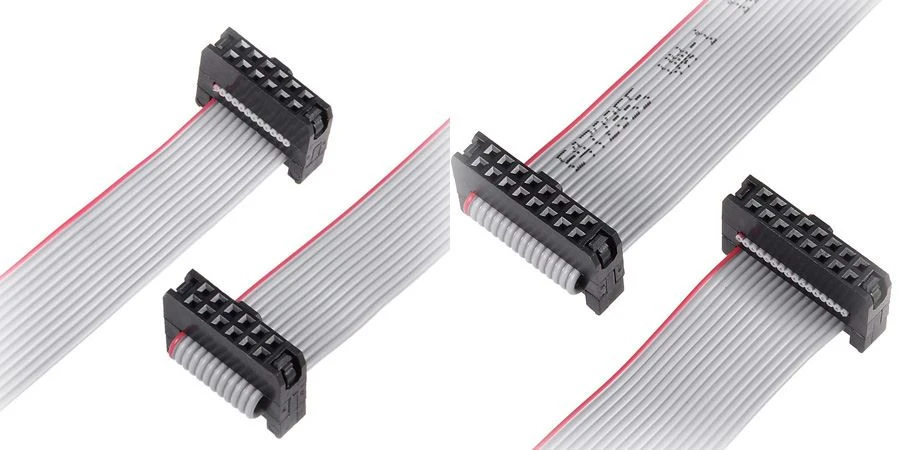

Terminal wire is a kind of electrical connection wire, you can choose the conductor wire number and the pitch between them. It is widely used in the connection of various printers and motherboards, such as fax machines, stereos, plotters, copiers, LCD appliances, scanners and many more.
1. Pitch P: the distance between the centerlines of two adjacent conductors;
2. Full pitch TP: the distance between the centerlines of the two outermost conductors, TP = P * (N-1);
3. Insertion thickness TT: the thickness of the two flat cables connecting ends;
4. Number of conductors N: the number of flat cables copper conductors;
5. Total length TL: the distance between the two ends of the flat cables;
6. Margin M: the distance between the center line of the outermost conductor and the flat cable edge.
7. Total width W: the distance between the two edges of the flat cables, W = P * (N + 1);
