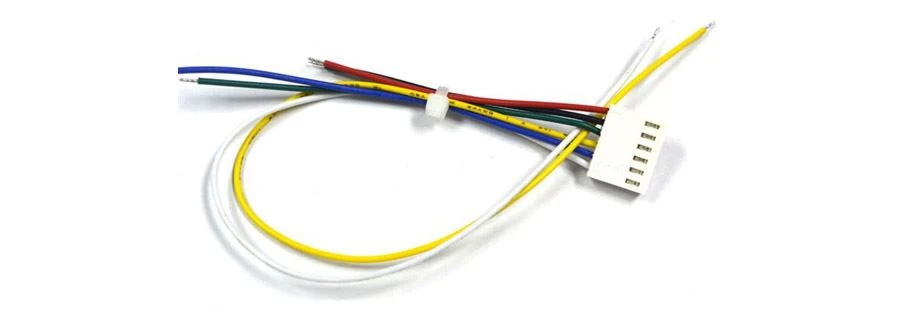

Product Name | Molex 2510 Radiator Fan Wire Harness |
Wire | UL1007 24AWG |
Length | 225MM Or Custom |
Connector | Molex 2510 |
Pin | 6 Pins |
Application | Radiator Fan |
Trial Order | 10PCS Molex 2510 Radiator Fan Wire Harness |
Molex 2510 Connectors
Rated Voltage | 250V AC.DC |
Rated Current | 3A |
Contact Resistance | 0.02 Ohm Max |
Insulation Resistance | 1000M Ohm Min |
Withstand Voltage | 1000V AC / MIN |
Temperature Range For Usage | -25ºC ~ +85ºC |
Housing | PA66 UL94V-2 |
Contacts | Brass Or Phosphor Bronze |
Plating | Tin 50u "Over 100u" Nickel |
