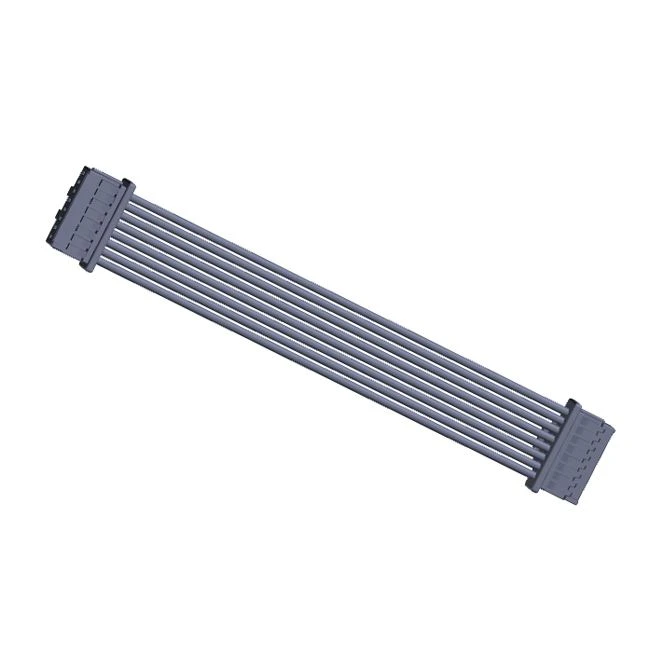

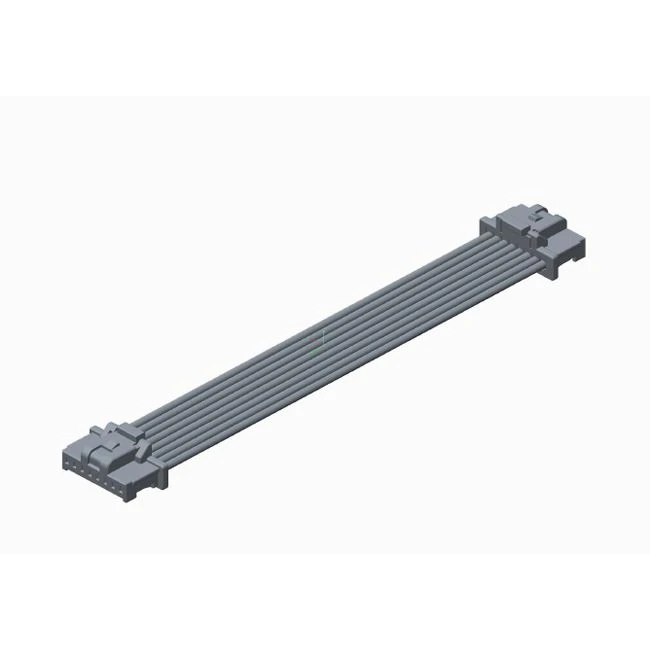

Product Name	Molex 15133 Series Connector Cable Assembly
Cable	28AWG; plated; PVC; BK; OD=0.60MM; UL1571
Cable Length	50.00mm
Series	Molex 15133 Series Connector
Circuits (Loaded)	8
Color - Resin	white
Gender	Female-Female
Lock to Mating Part	Yes
Material - Metal	Phosphor Bronze
Material - Plating Mating	Tin
Material-Plating Termination	Tin
Material - Resin	Nylon
Net Weight	0.798/g
Number of Rows	1
Pitch - Mating Interface	1.00mm
Single Ended	No
Termination Interface: Style	Crimp or Compression
MOQ	100PCS Molex 15133 Series Connector Cable Assembly

Pico-Clasp Wire-to-Board Connectors

The circuit size of the Pico-Clasp 1.00mm-pitch wire-board connector system ranges from 2 to 50, and a wide-head version is provided, which is ideal for space-constrained applications.

A wide range of design options include gold and tin plating, allowing additional design flexibility and simplicity to stay in the product family.

This product is used in electronic modules, air conditioner, mobile POS terminals, notebook PC, smart metering devices, TVs, televisions, UAVs/Drones, patient monitor etc.

More Molex Connectors

151330600	151330601	151330602
151330603	151330605	151330606
151330700	151330701	151330702
151330703	151330705	151330706
151330800	151330801	151330802
151330803	151330805	151330806

Production Process


Wire cutting	Terminal crimp	Peeling	Tin plating

Assembly	Twist	Inspection	Test

Test Equipment

Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
