Molex 15131 Series Connector Wiring Harness

1. Low profile, high current-carrying capacity, and a robust positive lock
2. Maintain the connection even when subjected to shock or vibration
3. Available in 1.00, 1.50 and 2.00 mm pitch versions
4. The first miniature wire-board connector system

Cable	1X28AWG SR-PVC BK OD=0.6MM UL1571 hook up
Length	50.00mm length
Connector series	15131 series
Application	Signal, Wire-to-Board
Assembly Configuration	Dual Ended Connectors
Connector to Connector	Pico-Lock-to-Pico-Lock
Housing	1.0W/B Side latch H=1.5 Rec Hsg
Terminal	1.0 WtB Side latch H=1.5 Rec Term
Label	Blank White label 12.7x25.4 mm
Type	Discrete Wire Assembly
Product Name	Molex 15131 Series Connector Wiring Harness
EU ROHS	Compliant
UPC	191128284615
Service	OEM ODM Accepted

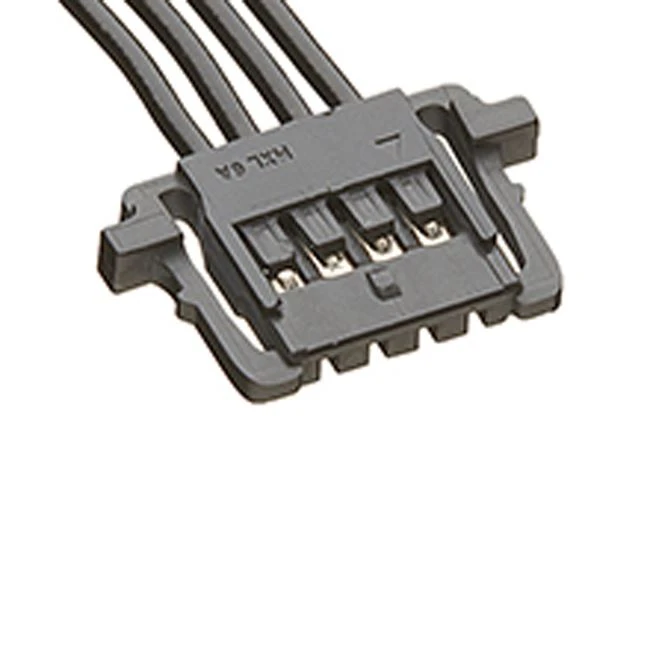

Pico-Lock Connector System

Notebooks and tablets with large graphics displays are becoming thinner and more powerful in design. This combination has created a need for a new type of connector that provides a very low profile, high current-carrying capacity, and a robust positive lock that maintains the connection even when subjected to shock or vibration.

The Pico-Lock system, available in 1.00, 1.50 and 2.00 mm pitch versions, is the first miniature wire-board connector system that combines all these functions to meet these needs.

More Molex Connectors:

151310200	151310201	151310202	151310203
151310205	151310206	151310400	151310401
151310402	151310403	151310405	151310406
151320500	151320501	151320502	151320503
151320505	151320506	151320600	151320601
151320602	151320603	151320604	151320605
