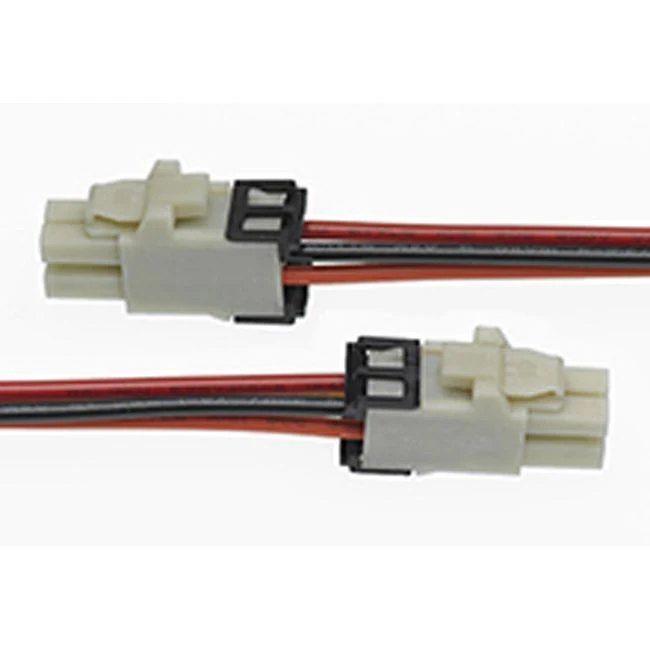

Product Name	Molex 45134 Series Connector Wiring Harness
Cable	16AWG; Plated; SR-PVC; Black/Red/Yellow/Orange; OD1.95mm; UL1061
Length	300mm length
Connector series	45134 series
Application	Signal, Wire-to-Board
Assembly Configuration	Dual Ended Connectors
Connector to Connector	Ultra-Fit-to-Ultra-Fit
Housing	Ultra-Fit Rcpt Hsg Dual V0 Nat Tpa 04 Ck
Terminal	Ultra-Fit Crimp Term 16-18awg Tin
Label	Blank label 25.4x36.5mm (WHT:12.7mm)
Type	Discrete Wire Assembly
Test	100% testing for continuity and polarity.
EU ROHS	Compliant
MOQ	100PCS Molex 45134 Series Connector Wiring Harness
Service	OEM ODM Accepted

Ultra-Fit Power Connectors

Multiple mechanically keyed color-coded options

Allow same-circuit, multiple-connector use with virtually no chance of cross mating

Color coding provides visual indication of the proper mating connector — enabling faster assembly

Optional TPA (Terminal Position Assurance) retainer

Guarantees the terminal is fully seated in the housing to reduce terminal back-out

Retains terminal if main retention feature fails

Positive-lock housing with anti-snag design

Ensures mated connector assemblies will not accidentally disengage

Provides an audible click while mating

Protects latch from damage due to wire snags

Terminal interface with six independent points of contact (split-box terminal design)

Offers redundant, secondary current paths for long-term performance and reliability

More Molex Connectors

451340201	451340203	451340210
451340401	451340403	451340410
451340601	451340603	451340610
451340801	451340803	451340810

Production Process


Wire cutting	Terminal crimp	Peeling	Tin plating

Assembly	Twist	Inspection	Test

Test Equipment

Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
