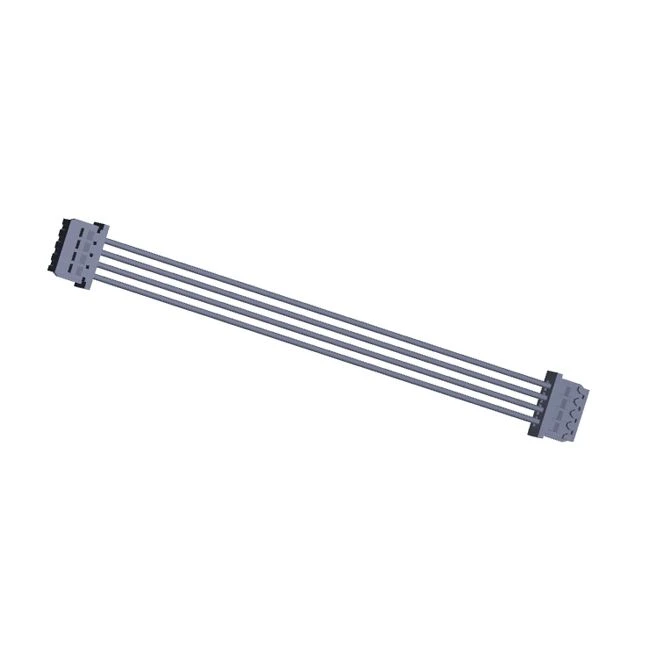

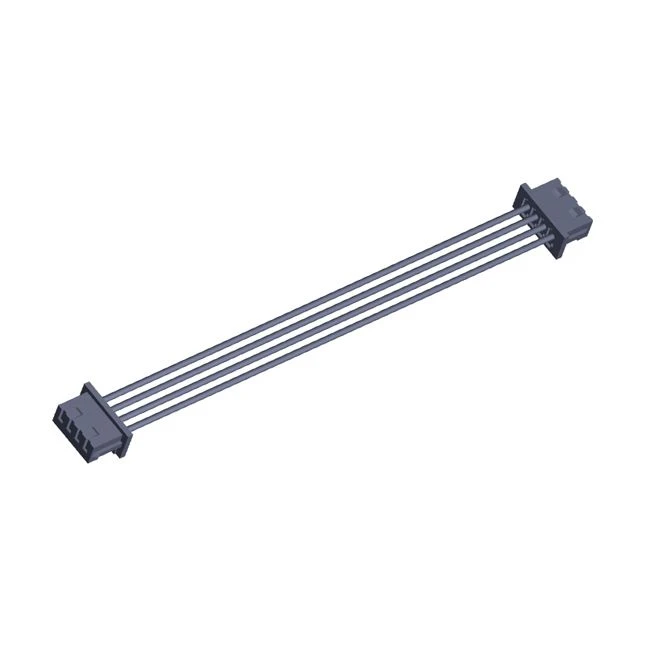

Molex 15134 Series Connector Wiring Harness

1. Provides space savings
2. Offers superior reliability and durability in harsh environmental conditions
3. Assures a reliable electrical connection under low-current, low-voltage and high-vibration conditions
4. Allows high-volume placement using industry-standard pick up nozzles

Cable	28AWG; UL1061 Molex 15134 Series Connector Wiring Harness
Cable Length	100mm
Series	Molex 15134 Series Wiring Harness
Connector Circuits	10
Color - Resin	Natural
Gender	Female-Female
Lock to Mating Part	Yes
Material - Metal	Phosphor Bronze
Material - Plating Mating	Tin
Material-Plating Termination	Tin
Material - Resin	Polyester
Net Weight	4.550/g
Number of Rows	1
Pitch - Mating Interface	1.25mm
Plating min - Mating	0.889µm
Plating min - Termination	0.914µm
Termination Interface: Style	Crimp or Compression
MOQ	100PCS Molex 15134 Series Connector Wiring Harness

PicoBlade Connector System

PicoBlade provides wire-to-board and wire-to-wire options. Compared with the typical 2.00 mm wire system, this system saves about 45% of PCB space. This is a single-row system, available in 2 to 15 circuits, with surface mount and through-hole headers.

A full range of automatic, semi-automatic, and manual tools can be used to support crimped wire harness assemblies that use discrete wires.
