Product Name | JST TZ/TZW Connector Wiring Harness |
Wire/Cable | UL/VDE Cable |
Length | Custom Length |
Connector Series | TZ/TZW Connector |
Pitch | 1.5MM Pitch JST TZ/TZW Connector Wire Harness |
Current Rating | 2A (AWG#26) |
Voltage Rating | 100V |
Service | OEM ODM Accepted |
MOQ | 100PCS JST TZ/TZW Connector Wiring Harness |

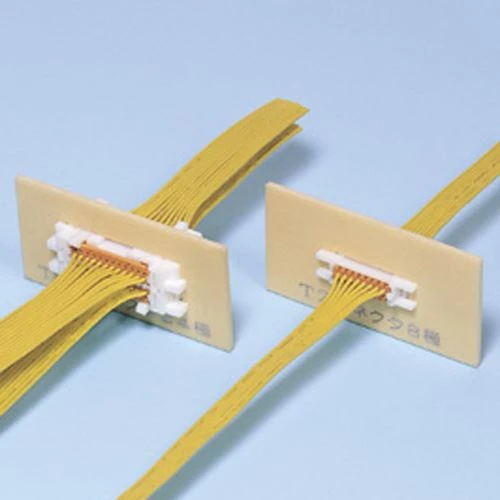

TZ/TZW Connector
With the CZ receptacles, TZ (single-row) or TZW (dual-row) connectors allow wire-to-wire connection. By adding CZ and CZW connectors, more complicated harness design is possible.
*Applicable to wide range of panel thickness
*The design of the panel lock does not allow the wires to be caught there before mounting on the panel.
More Connectors
TZ Connector
BUO2P-TZ-S | BUO3P-TZ-S | BUO4P-TZ-S | BUO5P-TZ-S | BUO6P-TZ-S |
BUO7P-TZ-S | BUO8P-TZ-S | BUO9P-TZ-S | BU10P-TZ-S | BU11P-TZ-S |
BU12P-TZ-S | BU13P-TZ-S | BU14P-TZ-S | BU15P-TZ-S | BU16P-TZ-S |
BU17P-TZ-S | BU18P-TZ-S | BU19P-TZ-S | BU20P-TZ-S |
TZW Connector
BU16P-TZW-S | BU18P-TZW-S | BU20P-TZW-S | BU22P-TZW-S | BU24P-TZW-S |
BU26P-TZW-S | BU28P-TZW-S | BU30P-TZW-S | BU32P-TZW-S | BU34P-TZW-S |
BU136P-TZW-S | BU38P-TZW-S | BU40P-TZW-S |
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Our Advantage
1. Low MOQ 10pcs
2. 1-3 days prototyping
3. Competitive prices
4. BMW supplier
5. ISO certified
6. Design service
7. 24 hours service
8. Fast delivery
Shipping And Payment
FAQ
1. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
2. What about the lead time for mass production?
Honestly, it depends on the order quantity you place the order.
The lead time is about 3 to 5 days.
Generally speaking, all of the goods can be reach your address within 2 weeks.
