Wire/Cable | 4 6 Pin JST ACHF Connector Wire Harness |
Length | Custom length wire harness |
Connector | JST ACHF connector |
Connector type | Wire-to-Broad |
Pitch | 1.2 mm pitch |
Feature | Low-profile |
Current rating | 2.5 A AC, DC (AWG #28) |
Voltage rating | 50 V AC, DC |
Applicable wire | Conductor size/ AWG #30 to #28 Insulation O.D./ 0.5 to 0.63 mm |
Housing | ACHFR-03V-H ACHFR-04V-H ACHFR-06V-H |
Certification | ISO9001:2008; ROHS; Reach; HF |
Delivery time | 3-15 days upon receipt of payment |
Sample | Available |
Service | OEM ODM accepted |
MOQ | 100PCS 4 6 Pin JST ACHF Connector Wire Harness |

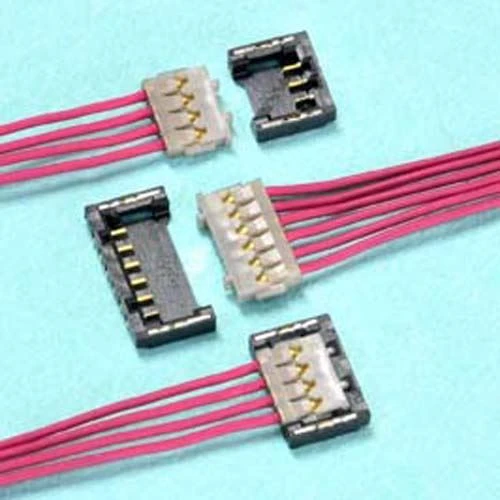

JST ACHF connector
This ACHF connector is compact and low profile type, height 1.43mm and width 4.95mm, 1.2mm pitch wire-to-board connector.
• High-strength
• Top entry but side feed type
• Connector for power supply (Power supply circuit: 2.5 A, Signal circuit: 1.0 A )
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Our Advantage
1. Low MOQ 10pcs
2. 1-3 days prototyping
3. Competitive prices
4. BMW supplier
5. ISO certified
6. Design service
7. 24 hours service
8. Fast delivery
Shipping And Payment
FAQ
Q1: Can I get the samples for testing before place an order?
A1: Yes,3-10 pcs free samples can be provided for testing.
Q2: How long will it takes to delivery the goods after we make payment?
A2: In general, cargoes can be sent out in 3 working days if in stock, If not in stock, It will takes about 7 workings for production, lead time can be ahead if your order urgent.
Q3: Can you custom made as per our own drawing?
A3: Yes,we have our own professional engineer ,can design die mould and custom made as your requested.
Q4: How many departments are there in your company?
A4: We have six departments, marketing department, design department, R&D(research and development) department, quality inspection department, purchasing department, financial department, and administration department.
Q5: Will the goods be inspected before send out?
A5: Yes, We have 14 people in quality inspection department, you know, quality is most important, we always put quality as the first consideration.
Q6: Are you a factory or trading company?
A6: We are a wire harness factory.
