Wire/Cable | UL/VDE JST HL Wire-to-Board Connector Wire Harness |
Length | Custom length |
Connector Series | JST HL connector |
Category | Wire-to-Board type |
Pitch | 3.96mm Pitch |
Housing | HLP-04V, HLP-08V, HLP-12V, |
Current rating | 7A (4 circuits/AWG#18) |
Voltage rating | 300V |
Temperature range | -25˚C to +90˚C |
Service | OEM ODM accepted |
MOQ | 100PCS JST HL Wire-to-Board Connector Wire Harness |

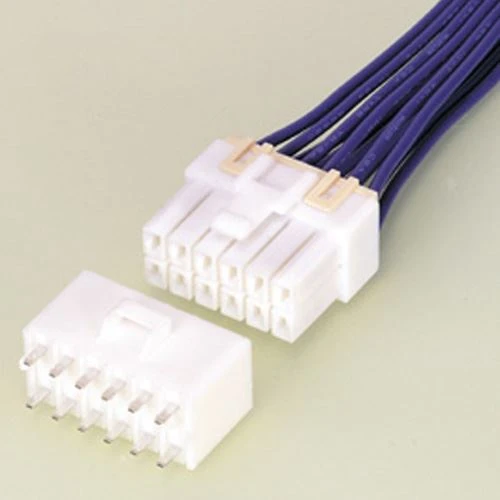

HL connector (Wire-to-Board type)
HL connector can be used for wire-to-wire or wire-to-board connection.
● The inner box lock fixes the plug on the socket to prevent accidental disconnection.
● Secondary retainers (optional)
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Our Advantage
1. Low MOQ 10pcs
2. 1-3 days prototyping
3. Competitive prices
4. BMW supplier
5. ISO certified
6. Design service
7. 24 hours service
8. Fast delivery
Shipping And Payment
FAQ
Q: Can we have them with different size or our own design?
A: Yes, we can make different size and design as per customer request.
Q: Can you send samples to us ?
A: We could provide sample for wire harness, but freight collected.
Q: Any discount about wire harness?
A: Yes,We could offer discount upon your order quantities.
