Wire/Cable | UL/VDE JST ACH connector wire harness |
Length | Custom length wire harness |
Connector | JST ACH connector |
Connector type | Wire-to-Board |
Pitch | 1.2 mm pitch |
Feature | For LED lamp |
Current rating | 2A/1to3-circuit (AWG#28) |
Voltage rating | 50V |
Applicable wire | Conductor size/ AWG #32 to #28 Insulation O.D./ 0.38 to 0.63 mm |
Applicable housing | ACHR-01V-A-S ACHR-02V-S ACHR-03V-S ACHR-04V-A-S ACHR-05V-A-S |
| MOQ | 100PCS JST Wire To Board ACH Connector Wire Harness |

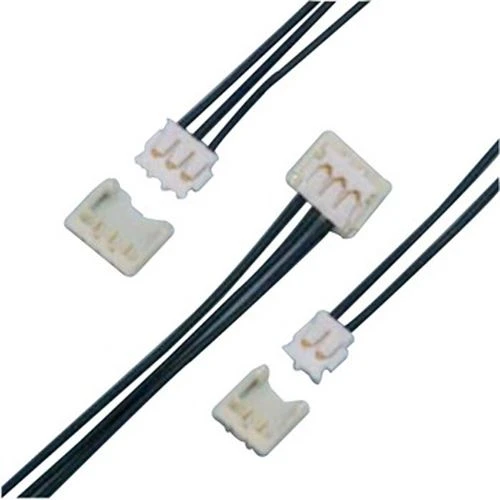

ACH connector
This ACH connector is 1.2mm pitch wire-to-board connector, the connector is compact and low profile type, height 1.4mm and width 4.3mm.
• Top entry but side feed type
• DC power supply connector
• Corresponding to suction nozzle of pick and place machine
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Our Advantage
1. Low MOQ 10pcs
2. 1-3 days prototyping
3. Competitive prices
4. BMW supplier
5. ISO certified
6. Design service
Shipping And Payment
FAQ
Q1. How about your delivery time?
A: Generally, it will take 3 to 15 days after receiving your advance payment. The exact delivery time depends on the products and quantity you ordered.
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or your drawings.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
