Wire/Cable | UL/VDE HR JST IDC Type Connector Wire Harness |
Length | Custom length wire harness |
Connector Series | JST HR connector (IDC type) |
Type | Disconnectable type |
Pitch | 2.5mm Pitch |
Current rating | 2A (AWG#24) |
Voltage rating | 250V |
MOQ | 100PCS HR JST IDC Type Connector Wire Harness |
Service | OEM ODM accepted |

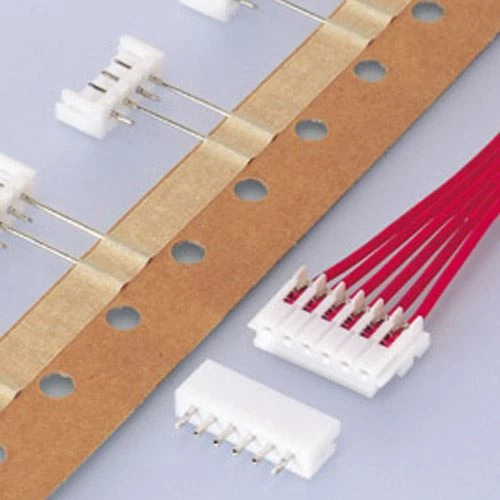

HR connector (IDC type)
This 2.5mm PCB connector has a thin structure. The inline method provides high-density functionality for end users.
● Double u-groove insulation displacement section
● Thin design
● High reliability
● Strain relief
● Interchangeabillity
More Connectors
02HR-8M-P-N | 03HR-8M-P-N | 04HR-8M-P-N | 05HR-8M-P-N | 06HR-8M-P-N |
07HR-8M-P-N | 08HR-8M-P-N | 09HR-8M-P-N | 10HR-8M-P-N | 11HR-8M-P-N |
12HR-8M-P-N | 13HR-8M-P-N | 02HR-6S-P-N | 03HR-6S-P-N | 04HR-6S-P-N |
05HR-6S-P-N | 06HR-6S-P-N | 07HR-6S-P-N | 08HR-6S-P-N | 09HR-6S-P-N |
10HR-6S-P-N | 11HR-6S-P-N | 12HR-6S-P-N | 03HR-6S-P-N | 02HR-4K-P-N |
03HR-4K-P-N | 04HR-4K-P-N | 05HR-4K-P-N | 06HR-4K-P-N | 07HR-4K-P-N |
08HR-4K-P-N | 09HR-4K-P-N | 10HR-4K-P-N | 11HR-4K-P-N | 12HR-4K-P-N |
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Our Advantage
1. Low MOQ 10pcs
2. 1-3 days prototyping
3. Competitive prices
4. BMW supplier
5. ISO certified
6. Design service
7. 24 hours service
8. Fast delivery
Shipping And Payment
FAQ
1. I wonder if you accept small wire harness order?
A: Do not worry, feel free to contact us. In order to build long-terms business and give our clients more trust and convenience,we can accept small order.
2. Can you do OEM for me?
A: We can accept the OEM orders, just contact us and give me your design. We will offer you a reasonable price and make samples for you ASAP.
3. What about the quality control in your factory?
A: We have our own quality control system and professional quality inspectors, we would guarantee that you can know every step.
