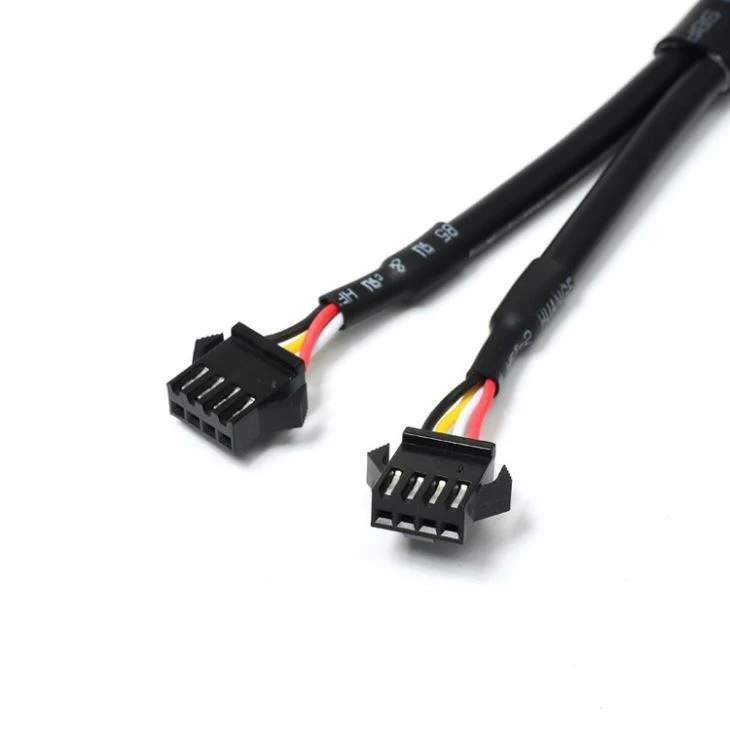

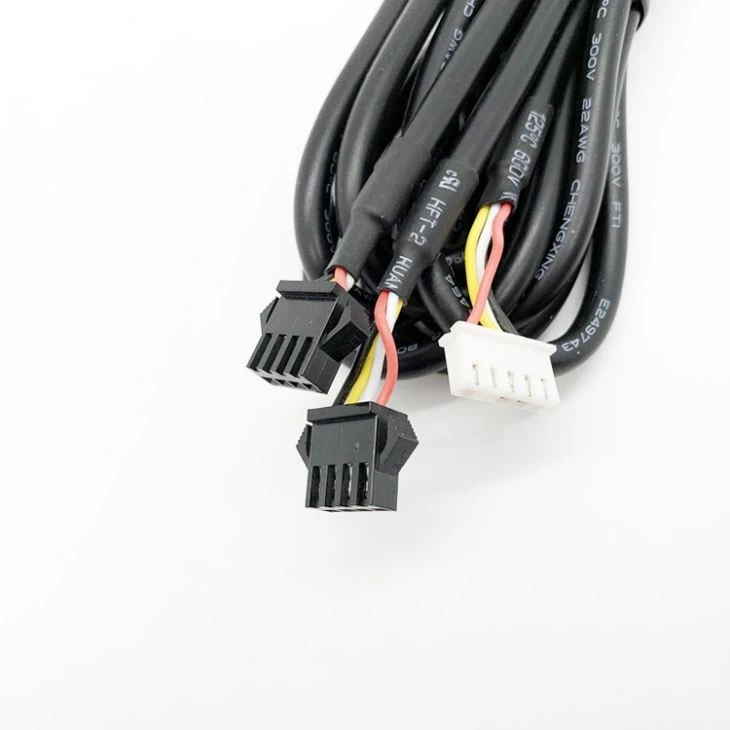

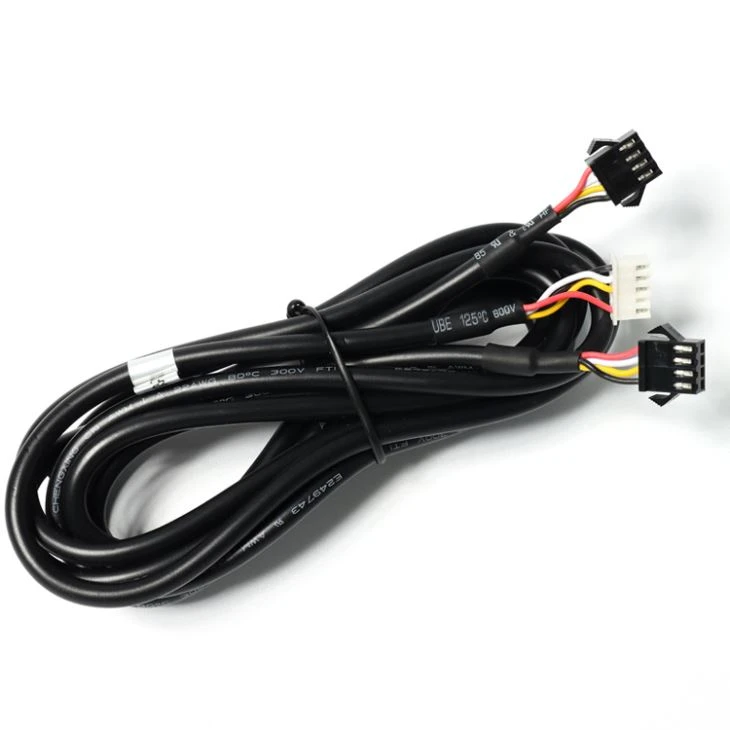

Product Name | Coaxial 4 Pins JST Connector Wire Harness |
Application | controller addressable led |

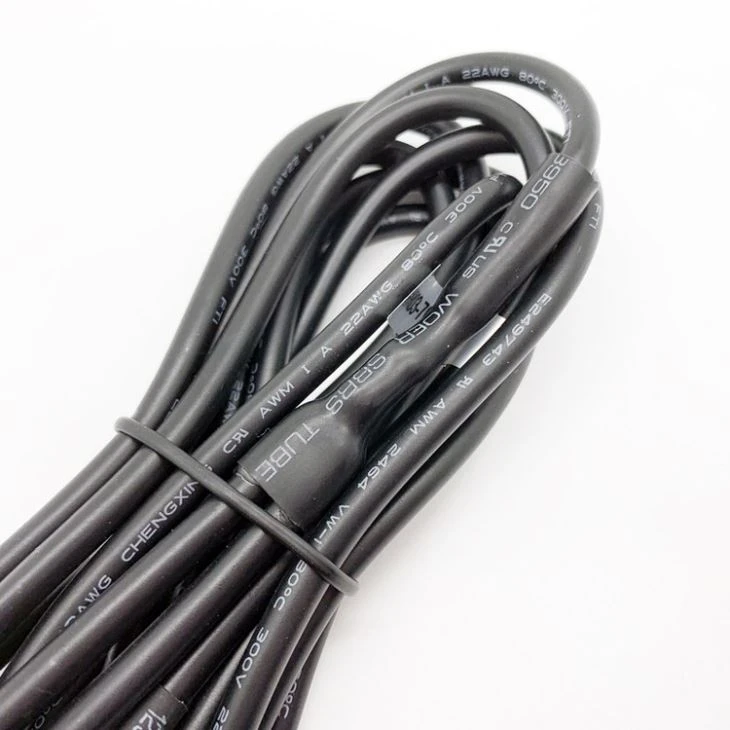

Cable | 22awg * 4c |
Cable Color | black |
Core Color | red, black, yellow, white |
Housing 1 | 5 pos., pitch: 2.5 mm, jst xhp-5 |
Terminal 1 | 24awg, jst sxh-001t-p06 |
Housing 2 | 4 circ., pitch: 2.5mm, jst: #smp-04v-b; tyu: #ty3081hno-04w |
Terminal 2 | jst: #shf-001t-08bs; tyu: #ty3081tbo |
Sample | free |
OEM Design | accepted |
MOQ | 100 pcs Coaxial 4 Pins JST Connector Wire Harness |
The XH connector is developed based on the high reliability and versatility of our NH series connectors. The connector is very small and the mounting height is 9.8 mm.
1. Original folded beam contact
2. Box-shaped shrouded header
3. Header with a boss
4. Interchangeability
5. Conforming to the HA terminal
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Shipping And Payment
FAQ
Q1: Are you factory or trading company?
We are a factory, can save the agent fee for you.
Q2: Can we visit your factory?
We warmly welcome you to visit our factory anytime. When you arrive in Shenzhen or Guangzhou airport, please tell us and we will pick you up.
Q3: What's your and delivery time for MOQ?
Our minimum order quantity is 10 pieces, and the delivery time is 3-15 days
Q4: Do you offer sample? What is your sample lead time?
Yes, the free sample can be sent first,the custom sample lead time will be 5-7 days.
Q5: If I have my own design, can you make it?
Yes, please advise your design or sketch, as well as the measurement.
Q6: How do your pack the products?
1pcs/poly bag, or as you required.
