2.54mm JST XH Connector Cable Wire
video

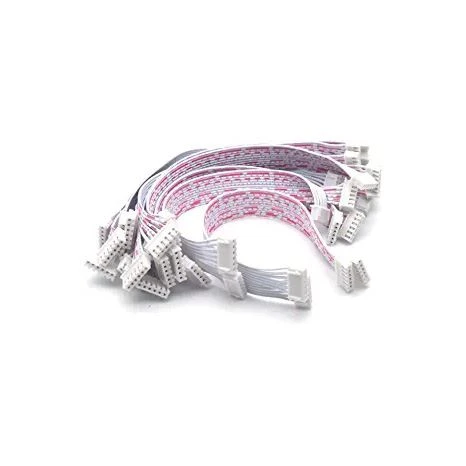

2.54mm JST XH Connector Cable Wire

2.54mm JST XH Connector Cable Wire

1. 6 Pin female to 6 pin female header with both end
2. Compatible with 2.54mm mil spacing pin headers

Product Name

6 Pin 2.54mm Pitch Female to Female JST XH Connector Cable Wire

Material

Copper Wire, PVC Coated

Each Cable Length(Approx)

20cm/8"

Pin Number

6 Pin

Connector

Female to Female JST XH Connector

Total Lenght

20.5cm/8.1"

Pin Spacing

2.54mm/0.1"

Color

White Pink

Certification

UL/VDE/CCC/CE/ROHS/SGS/REACH

Delivery Time

3-15 Days

Test

100% tested before shipment

6 Pin female to 6 pin female header with both end.

Compatible with 2.54mm mil spacing pin headers. Super copper wire, durable with strong conductivity.

Widely used to connect arcade joystick to encoder board. Almost all the 6 Pin type joysticks could use these cables.



Application

Can used for PCB project, pc motherboard etc. Allow you plug and unplug easily for prototyping.

Applicable to computers, LED, copiers, fax machines, speakers, household appliances, toys, cars, motorcycles, audio, power amplifier, etc.


Production Process

Wire cutting 1Terminal crimp 2Peeling 3Tin plating 4
Wire cuttingTerminal crimpPeelingTin plating
Assembly 5Twist 6Inspection 7Test 8
AssemblyTwistInspectionTest


Test Equipment

Good Quality comes from strict control on every process. The best equipment and the excellent technology make us get a lot of recognition from our customers.

1-Salt spray tester2-Wire rod swing testing machine3-Conduction test machine4-Double-column electric force-control testing machine


Our Advantage

● Low MOQ 100-500pcs

● 1-3 days prototyping

● DDU DDP terms

● BMW supplier

● ISO certified

● Rohs compliant material

● Original & equivalent/cross/replacement molex connectors available

● Other services: help customer to design custom connector and cable and connector mold/tooling


Certificate

Wire harness ISO Certificate


How to Order

1. Talk to us about your ribbon cable - 2. You (or our engineer) provide drawing - 3. Confirm drawing - 4. quote - 5. Sample built - 6. Sample approved - 7. Payment - 8. Mass production - 9. Test before shipment - 10. Delivery


Shipping And Payment

wire harness
