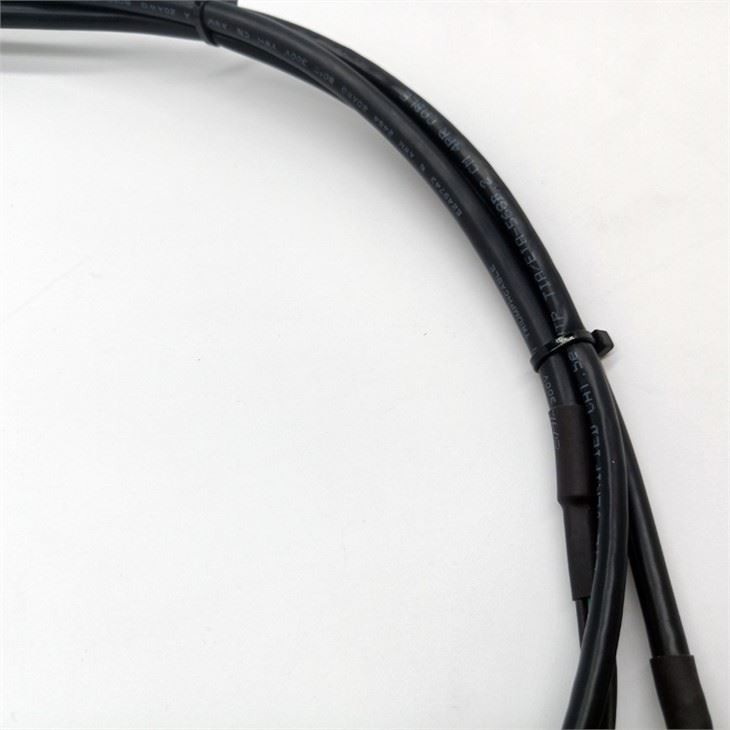

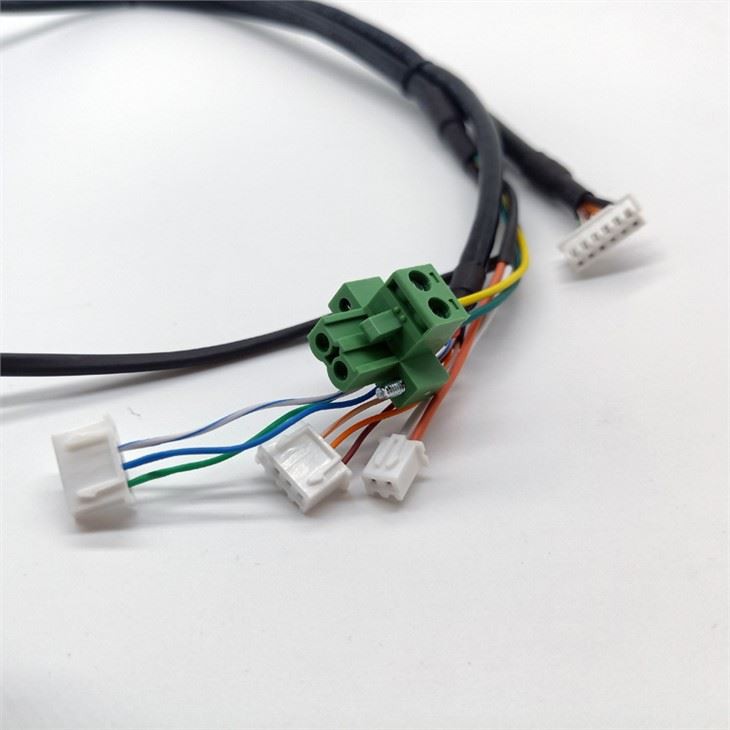

Product Name | smart machine wiring harness |
Cable | ethernet, cat5e shielded, belden 74003PU |
Cable | multi-conductor, 6C+E shielded alpha wire 80124 |
Wire | 22awg, black, 300V, 7/38, UL1061 80°C |
| Connector Housing | molex micro-fit 3.0 |
| Terminal | molex micro-fit rmf female 20-24awg 46235 |
Terminal | JST, BXH-001T-P0.6, XH, 28-22AWG |
| Connector housing | 6-position, JST XHP-6 |
| Connector housing | 4-position, JST XHP-4 |
| Connector housing | 2-position, JST XHP-2 |
| Terminal block | 2-W with screw, MSTB 2,5/ 2-STF-5,08 |
| Bootlace ferrule | insulated, for wire size 0.5mm2 (white) |
| Terminal | spade, receptacle, 4.8 mm, insulated, wire size 20-18awg (red) |
| Terminal | spade, lug, 4.8mm, insulated, wire size 20-18awg (red) |
| Tube 1 | heat shrink, 12mm, 2:1 |
| Tube 2 | heat shrink, 9.5mm, 2:1 |
| Cable tie | 2.1mm width, min length 75mm |
| Label | heat shrink tubing, 20mm dia. |
| Heatshrink tubing | black, Polyolefin 3mm |
The MSTB series Printed-Circuit Board Connector with 5 to 7.62mm pitch and a screw connection. It has plug-in direction parallel to the conductor axis, versions with screw flange, pull-out aid and lock and release levers. It has individual position coding by inserting the coding profiles.

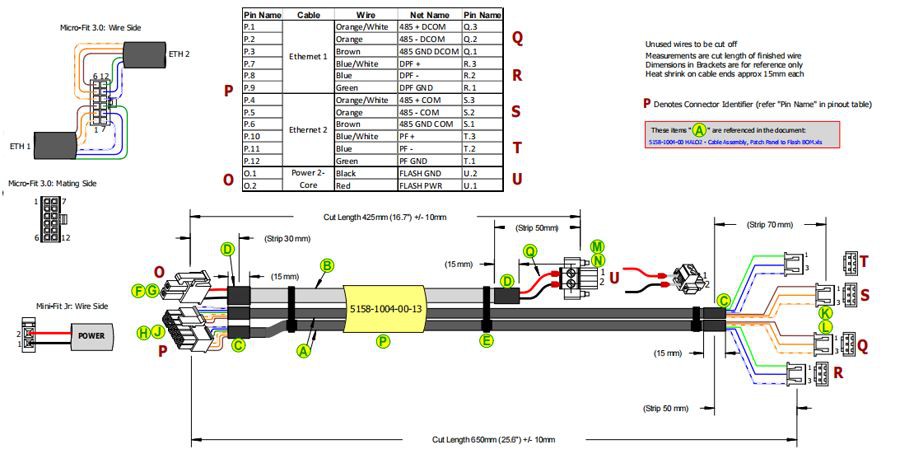

Drawing
