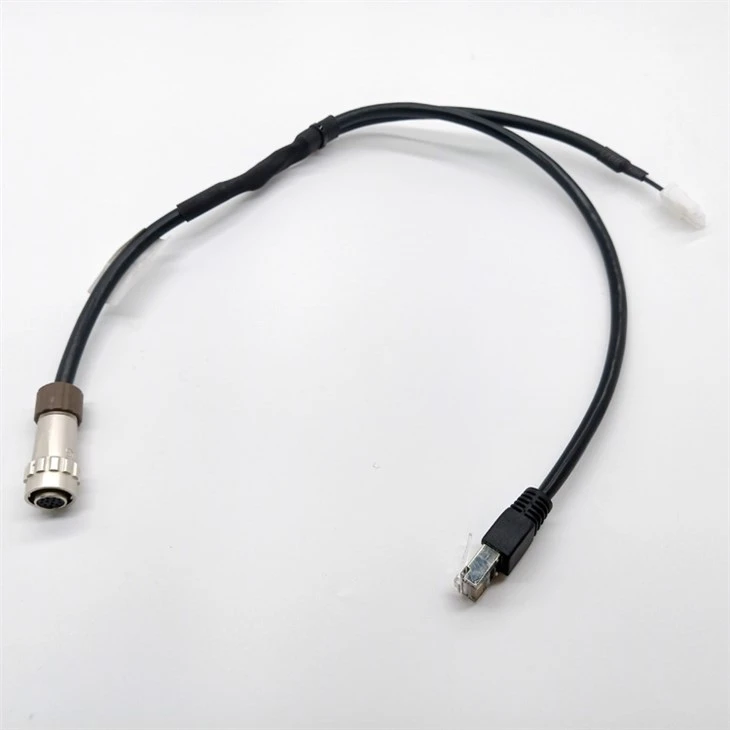

Product Name | industrial radar cable assembly |
Cable | Carol brand/general cable 300V 7/32 strand 24AWG 6C |
Cable | ethernet, CAT5e shielded, belden 74003PU |
Cable | 2 core 20awg alpha wire 3231 |
Connector 1 | hirose 12way cable SKT LF10WBPD-12S |

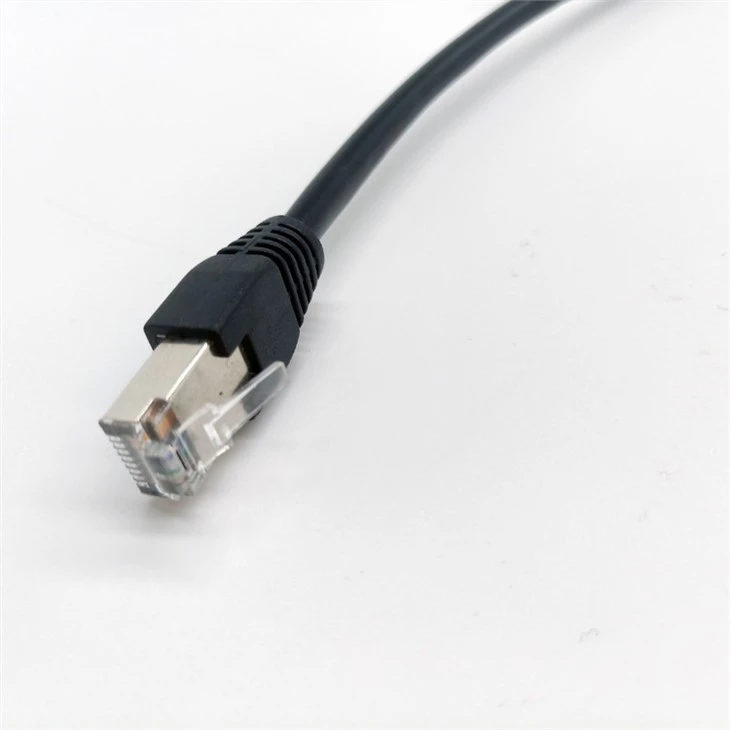

Connector 2 | ethernet CAT5e, shielded, stranded cable |
Connector accessory | ethernet strain relief |

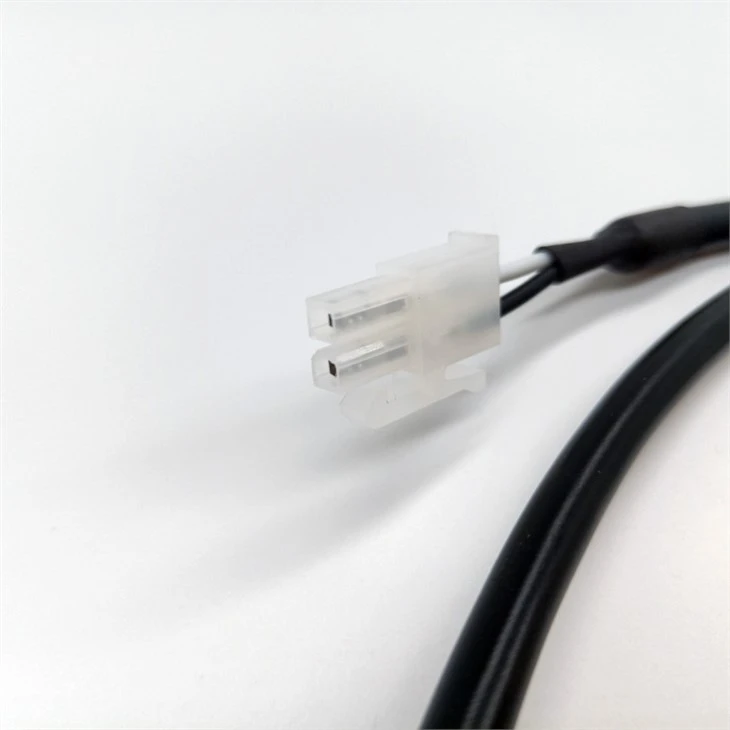

Connector 3 | molex microfit 3.0, 2-w |
| Terminal 3 | molex micro-fit rmf female 20-24awg 46235 |

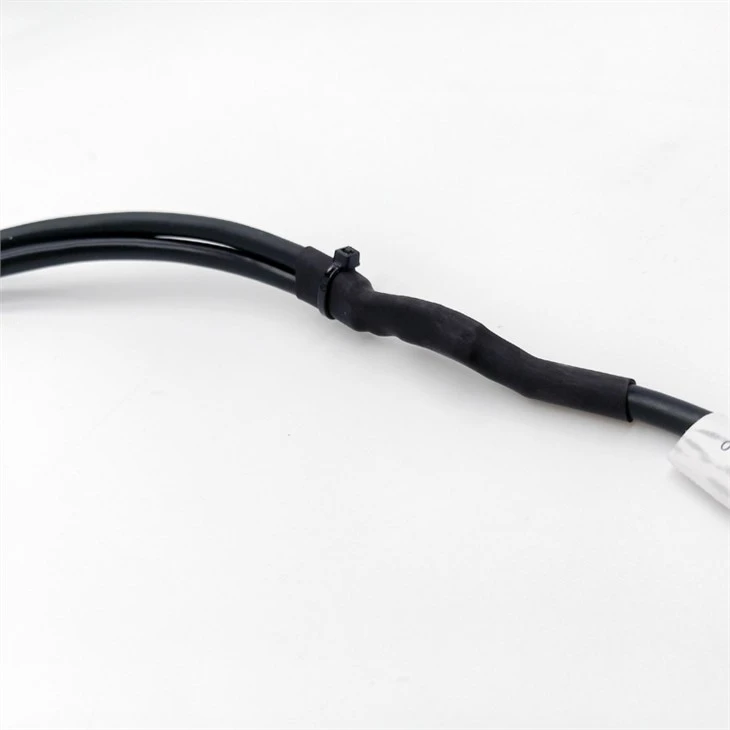

| Tube | heat shrink tubing, 1.5mm, 2:1 |
| Tube | heat shrink tubing, 12mm, 2:1 |
| Tube | teat shrink tubing, 6mm, adhesive filled, 2:1 |
| Cable Tie | 3.5mm x 150mm |
LF10WBPD-12S Connector
All components are self-aligning and do not requirecomplex assembly tooling. The shield of the cabie isconnected with the metal housing of the connectorusing simple shielding clamp, supplied with theconnector.
The LF series is a rugged, waterproof connectorseries that is lP67 and lP68 rated in the matedcondition.
IP67 : Left in water at a depth of 1 m for 30 minutesIP68 : Left in water at a depth of 2 m for 14 days.
No use of screws makes wiring and mounting easier.

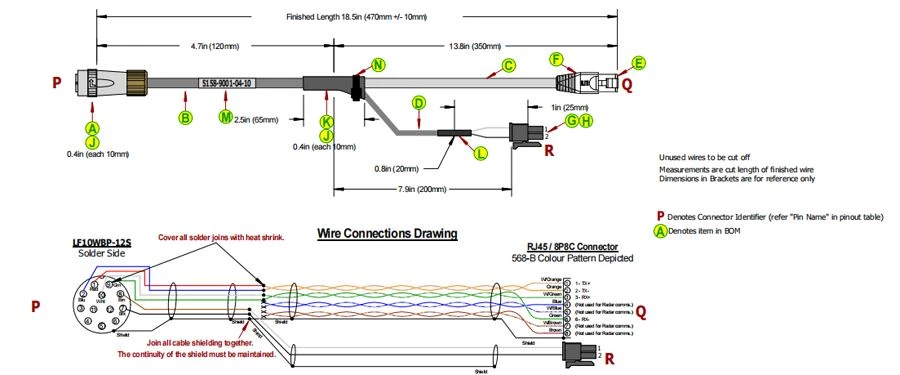

Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Shipping And Payment
FAQ
Q1: Do you customize products?
A1: Yes,we custom wire harness according to customers' requirement. Pls send us samples or drawing then we can move on.
Q2: Can you provide sample? Are they free?
A2: Yes, we could offer the sample for free charge but you need pay the cost of freight.
Q3: What is essential in order to get a wire harness quote?
A3: Drawing of wire harness.
Q4: If customer doesn't have a drawing, what else solution in order to get a quote?
A4: You just provide as many details as possible about your products including wire lengths, gauges, circuits, connector type, etc., and we can quote for you.You can also send us the sample, we will quote and make the sample for your approval.
