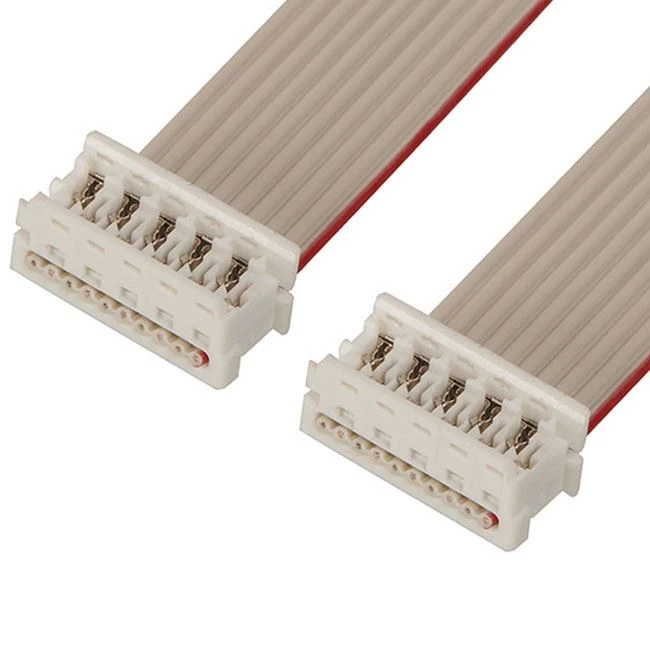

Picoflex ribbon cable assemblies are available in various standard lengths and circuit sizes. They are easily available and ideal for early project development. Polarized connectors avoid mismatches between the cable assembly and the head. The one-piece connector housing provides excellent cable retention and easy inventory control. The double beam contacts provide 4 contacts for each circuit on the matching interface to achieve a reliable connection.
| Product Name | Picoflex Ribbon Cable |
| Cable AWG | 28AWG |
| Cable Length | 240mm |
| Color | Gray with red edge |
| Connector Type | molex 92315, picoflex ribbon-cable connector |
| Connector to Connector | Picoflex IDT-to-IDT |
| Gender | Female-Female |
| Circuits | 10 |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Material - Resin | Polyester |
| Net Weight | 1.478/g |
| Pitch - Mating Interface | 1.27mm |
| Plating min - Mating | 2.032µm |
| Plating min - Termination | 2.032µm |
| Current - Maximum per Contact | 1.2A |
| Voltage - Maximum | 250V |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
More Picoflex IDT Connectors
|
923150890 |
923151006 |
923151007 |
923151010 |
923151013 |
923151015 |
|
923151020 |
923151024 |
923151025 |
923151027 |
923151030 |
923151033 |
|
923151040 |
923151047 |
923151054 |
923151060 |
923151065 |
923151206 |
|
923151207 |
923151210 |
923151215 |
923151220 |
923151225 |
923151230 |
|
923151240 |
923151260 |
923151280 |
923151407 |
923151410 |
923151415 |
|
923151420 |
923151425 |
923151607 |
923151609 |
923151610 |
923151615 |
|
923151625 |
923151635 |
923151640 |
923151650 |
923151660 |
923151811 |
|
923151813 |
923152006 |
923152007 |
923152009 |
923152010 |
923152011 |
Application
Production Process
Why Choose Us
|
|
|
|
|
|
| Professional team | BMW supplier |
Free sample |
Quality guarantee | Processing custom |
Drawing customized |
Certificate
FAQ
Q1: Do you customize products?
A1: Yes,we custom wire harness according to customers' request, please contact us!
Q2: Can I get some samples?
A2: Yes, free samples are available for evaluation and freight cost to be collected by customer.
Q3: What is essential in order to get a wire harness quote?
A3: It is best if we have your drawing, but if not, you can provide our details, and the drawing and quotation will be sent to you accordingly.
Q4: Do you test all your goods before delivery?
A4: Yes, we have 100% test and check all goods before shipment.
Q5: How can I make sure the cargo is going to be produced is correct?
A5: First, ECOCABLES engineering drawing will be sent to customer to verify before production. Second, first piece will be made, which can be taken pictures or sent directly to customer to verify before production.
