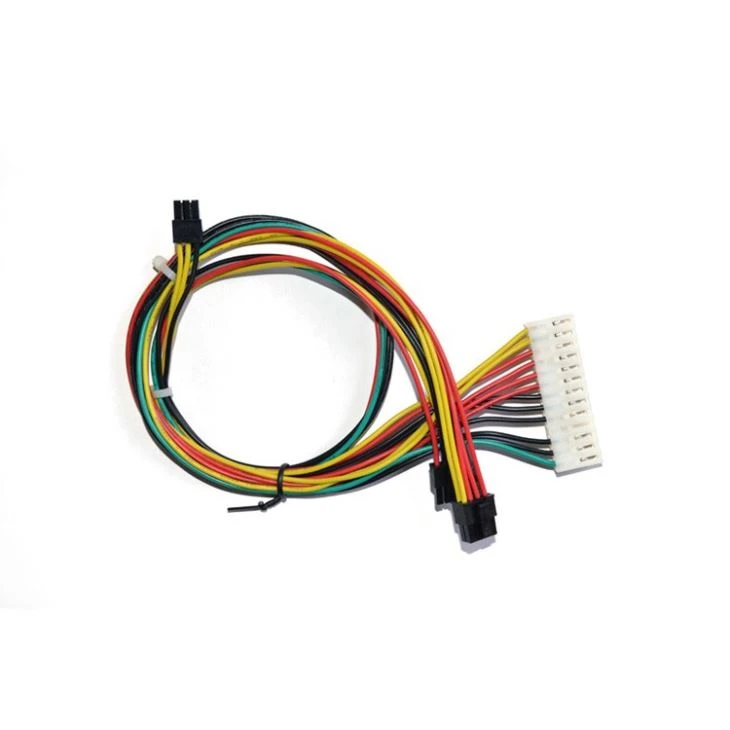

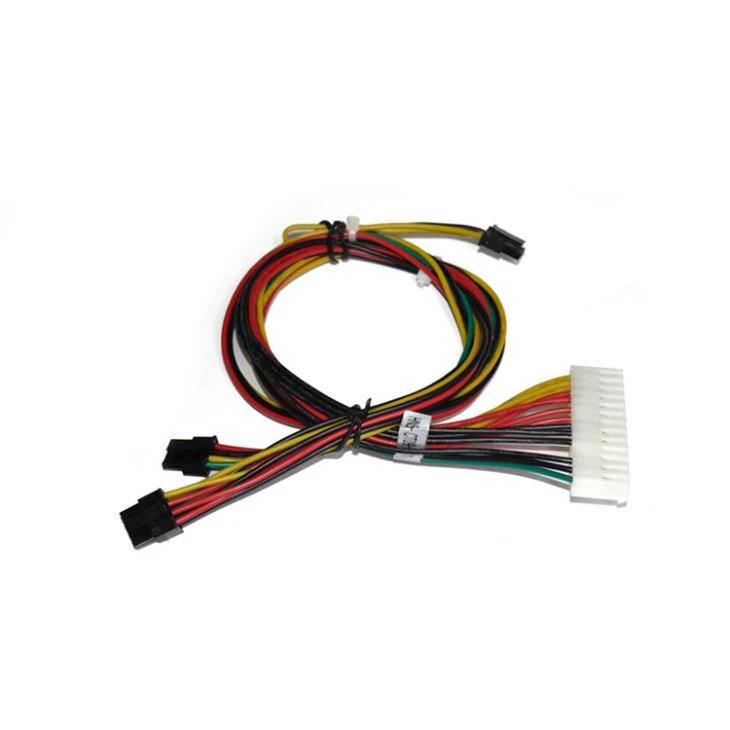

Product Name | ISO 3 Pin Connector Power Wiring Harness |
Application | power |
Wire | 20awg (red, black, yellow), 24awg -green ISO 3 Pin Connector Power Wiring Harness |
Housing 1 | pitch 3.0mm, 8pos. molex 43025-0800; tyu ty3085hno-2x04 |
Housing 2 | pitch 3 mm, 3 pos. molex 0436450300; tyu ty3085hno-1x03 |
Housing 3 | pitch 3 mm, 4 pos. molex 0436450400; tyu ty3085hno-1x04 |
Terminal 1.2.3 | molex 0430300007; tyu ty3085tph-a |

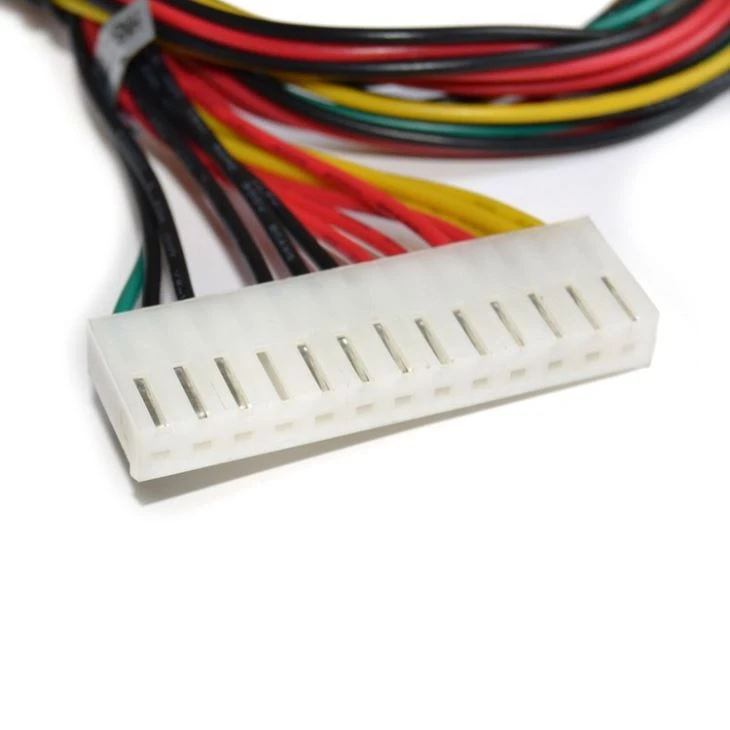

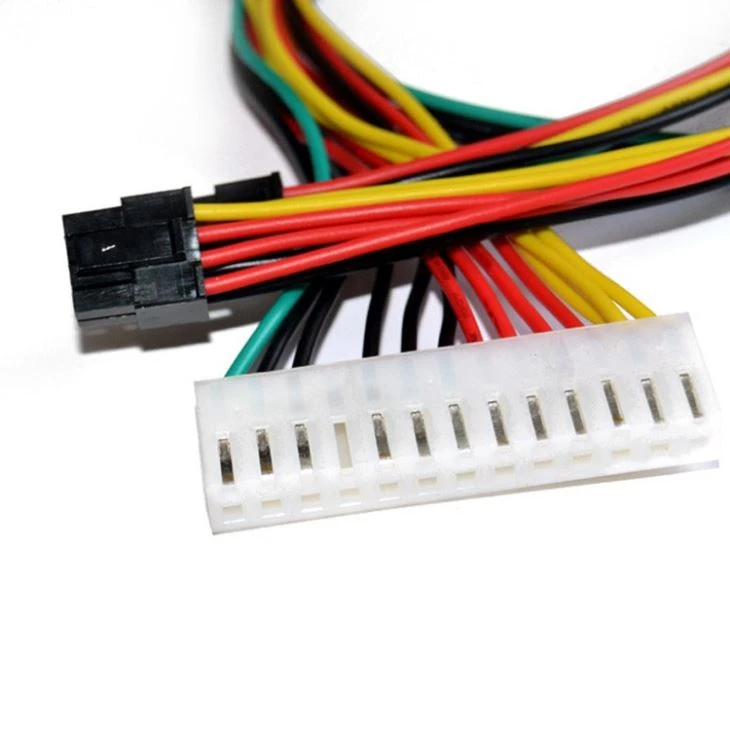

Housing 4 | pitch 3.96 mm, 13 pos. molex 009524134; tyu tu6002hno-13p |
Terminal 4 | molex 0008700012; tyu tu6002tp3-ae |
Samples | Free charge |
OEM ODM | OEM & ODM are Welcomed |
Advantage | Safe, High quality |
Micro-Fit Connector System
The micro-fit 3.0 CPI(compatible with Pin) connector provides a compatible Pin interface while maintaining all the functionality of the standard micro-fit 3.0 connector.Robust pinhole design provides a reliable interface when the recommended board layout is followed.
The micro-fit 3.0 CPI header is used in conjunction with the micro-fit 3.0 interface to allow running changes as the circuit board transitions from solder to a pressed application.To reduce application costs, OEM generally prefers standard-compliant pin connectors to those requiring welding.

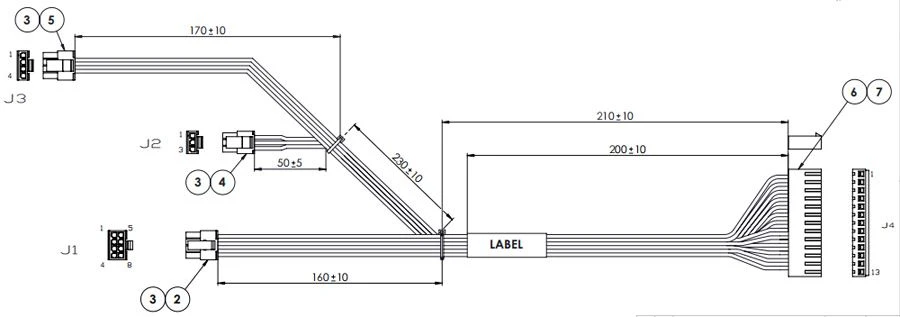

Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Shipping And Payment
FAQ
Q1: Can I have samples to test?
A: Yes, we are pleased to supply free samples to test and check quality.
Q2: Do you accept which payment methods?
A: We accept T/T, western union, Paypal, L/C or others terms.
Q3: What's the lead time?
A: Sample : 1-3working days. Mass production: 3-15working days depend on the order quantity.
Q4: Do you have any MOQ limited?
A: Small quantity 10pcs.
Q5: How do you ship the goods?
A: We usually ship by DHL,UPS,FEDEX,TNT. And we also can ship according to your requests.
