The biggest advantage of 10 pin 10 way ribbon cable is that they allow quality terminations to be specially designed Insulation Displacement Connectors (IDC), although ribbon cables can also be terminated by using crimp contacts or solder barrel connections. The IDC termination method allows the conductors of insulated wires or cables to be contacted through a connection process that forces a sharp blade through the insulation, eliminating the need to strip the insulated wires before connecting. IDC connectors are classified by pin spacing, pin number and row number.

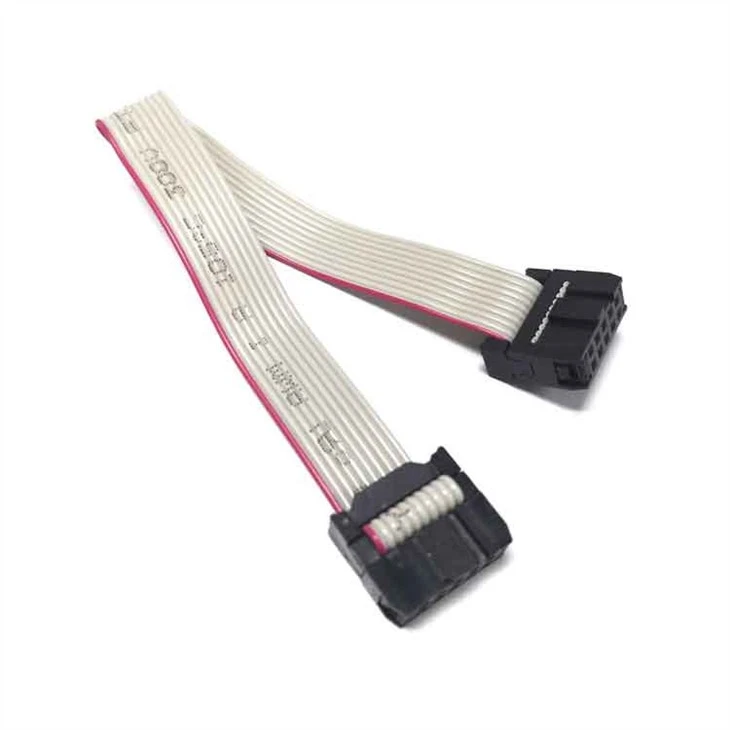

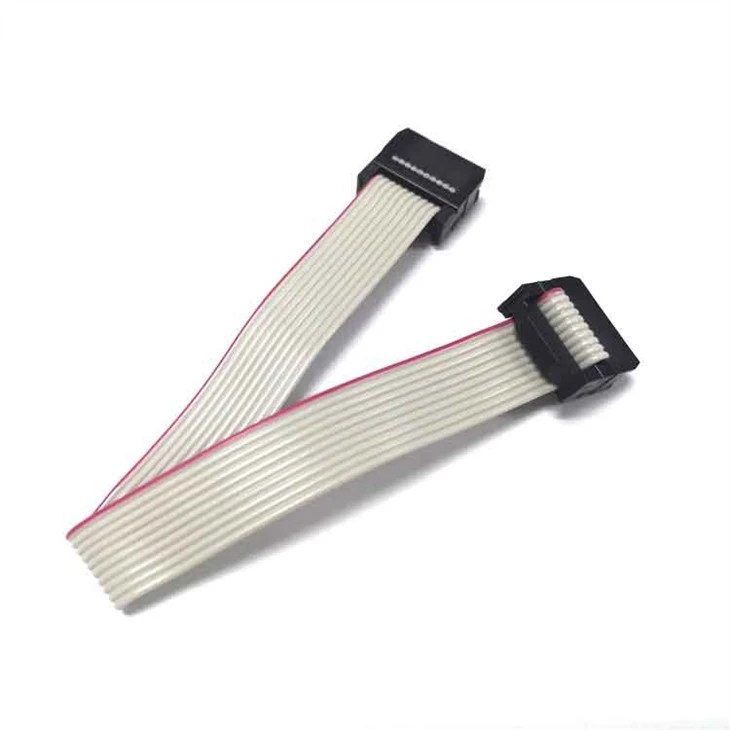

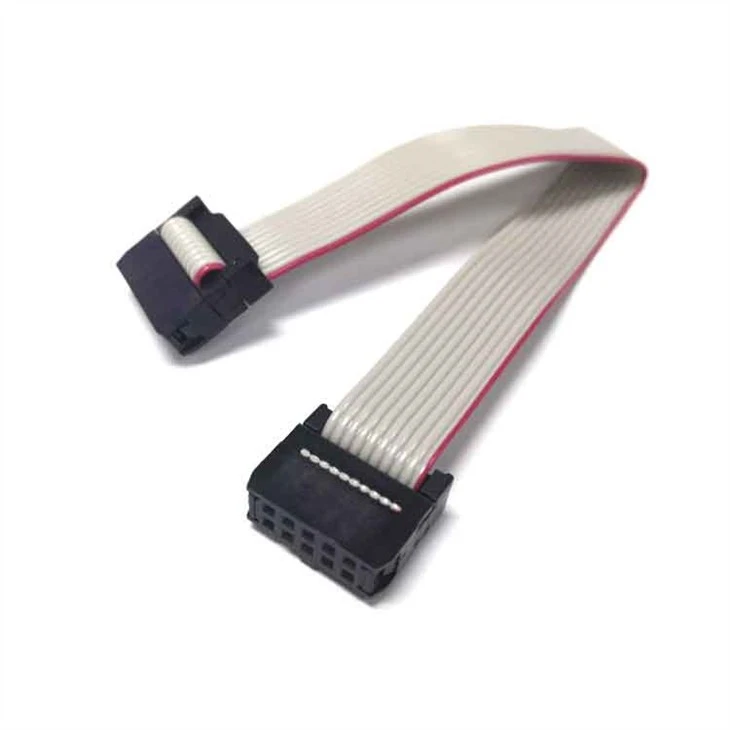

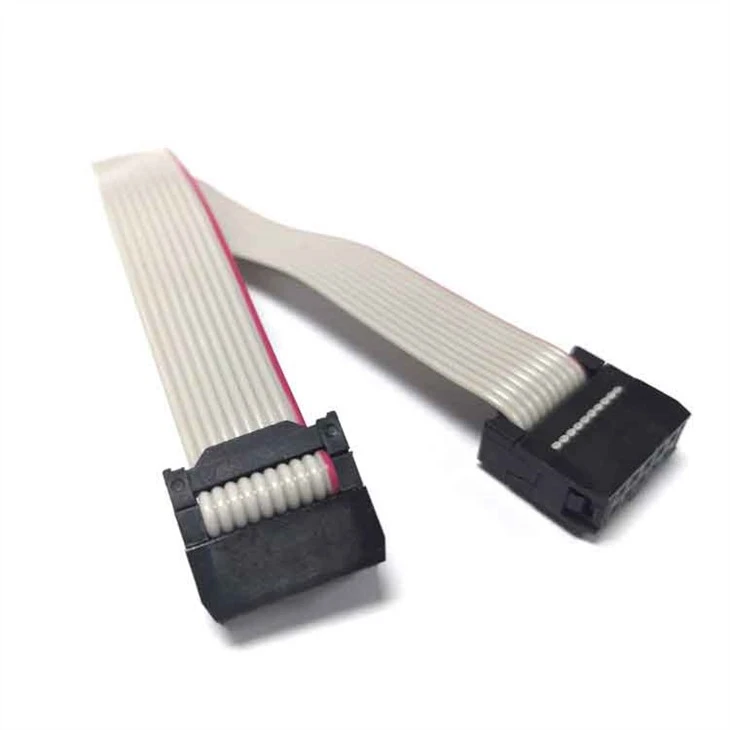

| Product Name | 10 Pin 10 Way Ribbon Cable |
| Cable | UL2651 28AWG |
| Total Length | 180mm |
| Color | Gray color |
| Connector Type | IDC connector |
| Pin Number | 10 Pin |
| Pin Pitch | 2mm pitch |
| Material | SORY standard PBT |
| Rated Current | 1Amp |
| Maximum Voltage | AC 500V / 1Minute |
| Insulation Resistance | 1000mΩ |
| Contact Resistance | 15mΩ |
| Operating Temperature | -40 ° C ~ + 105 ° C |
| Sample | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
More AMP DUOPLUG 2.5 PC Board Frame
| 1-964575-3 | 3-964575-3 | 7-964575-3 | 8-964575-3 | 9-964575-3 |
2-964575-4 | 3-964575-4 | 9-964575-4 | 1-964575-5 | 2-964575-5 |
4-964575-5 | 7-964575-5 | 8-964575-5 | 1-964575-6 | 1-964576-1 |
1-964575-7 | 2-964575-7 | 3-964575-7 | 8-964575-7 | 1-964575-8 |
2-964575-8 | 9-964575-8 | 1-964876-8 | 1-964575-9 | 2-964575-9 |
9-964575-9 | 2-964575-0 |
More AMP DUOPLUG 2.5 Mark II Female Connectors Selectively Loaded
1534415-4 | 1-1740533-4 | 2-1740533-4 | 3-1740533-4 | 1394918-5 |
1534415-5 | 1740533-5 | 1394918-6 | 1534415-6 | 1-1773727-3 |
1-1740533-6 | 2-1740533-6 | 1394918-7 | 1534415-7 | 1740533-7 |
1-1740533-7 | 2-1740533-7 | 3-1740533-7 | 1534415-8 | 1740533-9 |
Application
Production Process
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● ... ...
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Certificate
Shipping And Payment
FAQ
Q: Do you provide OEM Service?
A: OEM & ODM order is warmly welcome. More importantly, our R & D team will provide you professional suggestions.
Q: When will ship my order?
A: We will try our best to ship within 3-5 days once we get the payment confirmation.
Q: Which shipping term you can supply?
A: Air shipment, sea shipment, UPS, FEDEX, DHL, etc.
Q: How can I trace my order?
AWe will email you the tracking number.
