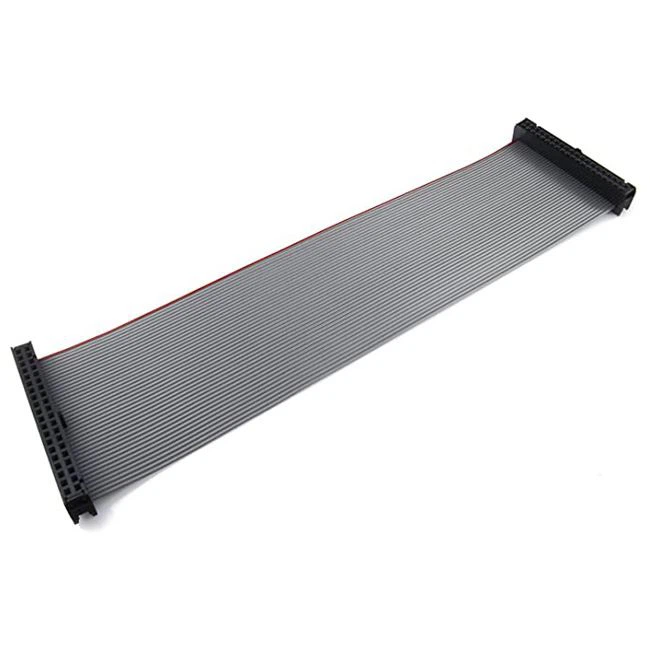

40 way ribbon cable perfect for accessing the GPIO (general purpose input output) port on the Raspberry Pi Model 4/3B/Zero/2B/B+/A+ Board
This is perfect for connecting the Pi to your own projects and circuitry.
| Product name | 40p to 40p GPIO Ribbon Cable |
Neltron Cable | AWM 2651 VW-1 105°C 300V 28 AWG NELTRON CSA AWM I A FT1 FT2 105°C 300V 28 AWG 244239 |
Cable Pitch | 1.27mm |
Total Length | 8" long, and pin #1 is marked with a red wire |
Cable Color | Gray with red edge, rainbow, black, yellow available |
Conductor Construction | 2.54mm IDC Socket, 2x20 pin female connectors |
| Conductor Elongation | 18% ↑ |
Withstand Voltage | 2KV 10mA |
Conductor Resistance | ≤237 ohms / RM ↓ |
Insulation Resistance | ≥100m ohm / RM ↑ |
Operating Temperature | -40 °C ~ + 105 °C |
Service | OEM ODM accepted |
Application
Production Process
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● ... ...
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Certificate
Shipping And Payment
FAQ
1. Is it compatible with raspberry pi 3 and mmdvr?
This cable is compatible with Raspberry Pi 3 (3B and 3B Plus) GPIO.
2. Is it compatible with the pi zero 1.3 (camera version)?
Yes, this cable is compatible with the RPi Zero 1.3 (RPi Zero/3B/2B/B+/A+).
3. Is this compatible with odroid c2?
Yes, this cable is compatible with Odroid C2 40pin GPIO (except 7pin audio I2S interface).
