Product Introduction
Attribute
|
Product Name |
Computer Cable Assembly |
|
Wire |
2468 22AWG |
|
Wire Diameter |
6mm |
|
Core Material |
6 core, bare copper |
|
Jacket |
PVC |
|
Connector 1 |
XHB 6P |
|
Connector 2 |
MX3.0-3P |
|
Rated Temperature |
80℃ |
|
Application |
Computer |
|
Service |
OEM ODM Service |
|
MOQ |
10PCS |
The Computer Cable Assembly is about 20cm long and has a JST XHB 6Pin Connector on one end and the other end has a MX3.0-3P connector. Using computer cables to connect two devices for high-speed Internet access.
Feature highlights
Computer Cable Assembly is a type of signal cable.The 2468 22AWG six-core wire is insulated with PVC material on the Jacket, with an outer diameter of 1.8*3.6 millimeters. The wire is made of bare copper. The design pays more attention to electrical conductivity and durability, and is suitable for parallel wiring applications and extending the power lines of closed-circuit television. And it has passed strict industry standard certifications such as SGS and ROHS, ensuring compliance with global safety regulations.
Product advantages
- The quality is guaranteed. Computer Cable Assembly detection application advanced equipment, the degree of deviation is efficiently reduced to ensure the safety of use.
- Pure copper wire. The production and application of high-quality pure copper wire ensure stable signal transmission and voltage.
- High-quality PVC. It is made of new PVC material, featuring good softness, high wear resistance, excellent insulation and corrosion resistance.
Solutions
We manufacture computer cable assembly suitable for various scenarios, including:
Power Extension Cables - customize power cords of different lengths.
USB Extension Cable- Data cable, maintaining the integrity of data signals.
Signal Cable- used for transmitting data, power and information.
Custom Wire Harness - tailored for use in consumer electronics, industrial machinery, automobiles, aerospace, medical equipment and other fields.
An outstanding supplier located in the "World Factory"
The industries we serve:
Consumer electronics and IT - high-quality cables for home appliances, computers and networks.
Industrial and automotive - Fixed cables for industrial automation and automotive systems.
Electronic communication - high-speed cables used for network facilities and data transmission...................
Production Process
The production process of computer cable assembly is divided into 8 steps:
1.Wire cutting
Electrical discharge wire cutting ensures that the performance accuracy of parts reaches a high level, precise to ±0.001mm, and the surface roughness can be accurate to less than Ra0.8μm.

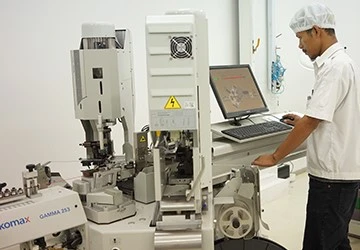

2.Terminal crimp
Wrinkles in cable terminal heads can affect actual use, such as safety issues or electrical failures. The installation of cable terminal heads must be strictly carried out in accordance with standards to ensure the reliability of the lines during cable connection.
3.Peeling
The outer sheath of the cable is removed by stripping the core wire, leaving only the core wire. During this process, it is necessary to be careful not to damage the core wire to avoid affecting the subsequent processing procedures.
4.Tin plating
Tin plating is a very important processing procedure in cable harness assembly to ensure the stability of long-term electrical contact of cables. It can also enhance the electrical transmission speed, soldering performance and corrosion resistance of cables.
5.Assembly
The main function of assembly is to form a circuit network by bundling into bundles to ensure stable and smooth signal transmission. The product is also known as a wire harness assembly.It needs to comply with ROHS environmental protection standards and UL certification, and brand connectors such as MOLEX and TYCO can be used.
6.Twist
The twisting process can test the stability of internal materials and structures, enhance the flexibility and fatigue resistance of cables, and prevent faults such as breakage or performance degradation during use.
7.Inspection
Judge by observing the appearance whether the surface of the wiring loom assembly cable is smooth, or whether there is deformation and damage.
8.Test
Cable assy testing is an effective means to verify whether the product quality is qualified, and it is the guarantee for the normal use of the product. Complete and intact testing equipment is also an indispensable hardware facility.

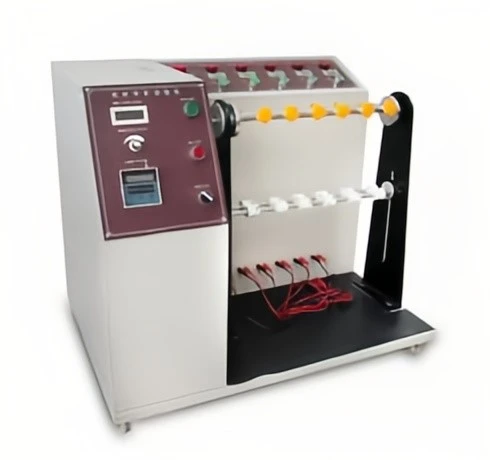

Test Equipment
Computer cable assembly need to be tested to ensure the safe use of computer systems. The test items should include the electrical performance, transmission speed, insulation resistance and other aspects of the cables.
The test frequency is comprehensively determined by the usage environment of the computer cable assembly and the type of cables. We have various types of testing equipment to meet the testing requirements of all kinds of cable and harness assembly, ensuring the safe use of cables after production.
Our Advantage
- Implement a customized product solution. --Computer Cable Assembly can be customized according to your requirements, For example, the specified connectors, materials, length dimensions, etc. of the harness cable assembly.
- High-quality manufacturing.--In accordance with the requirements of SGS international certification, every product undergoes multiple tests to ensure its quality is up to standard.
- Competitive prices. --We are located in the world's factory and support bulk orders. We will provide you with a customized pricing plan. All products are dispatched starting from one piece.
- Efficient delivery and global transportation.-- Efficient production and punctual global delivery.
- Perfect after-sales service. --We have over 10 years of experience and can ensure the quality of our service to you. We offer product warranty and technical support.

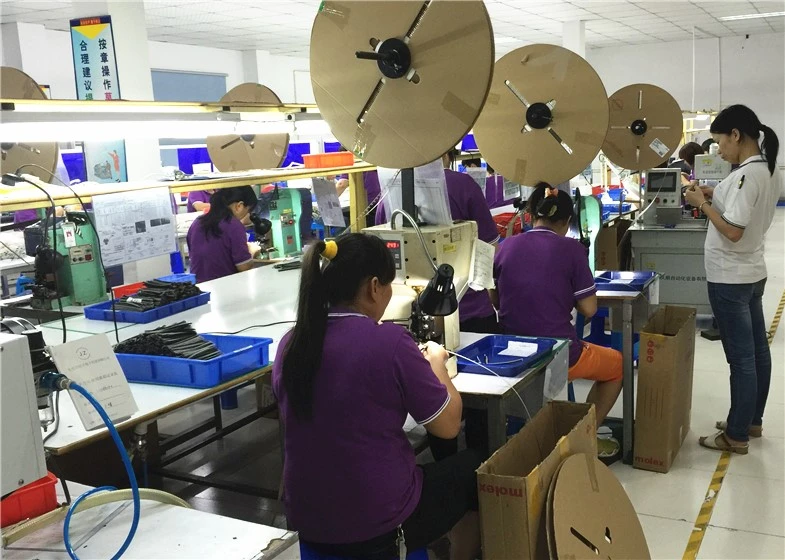

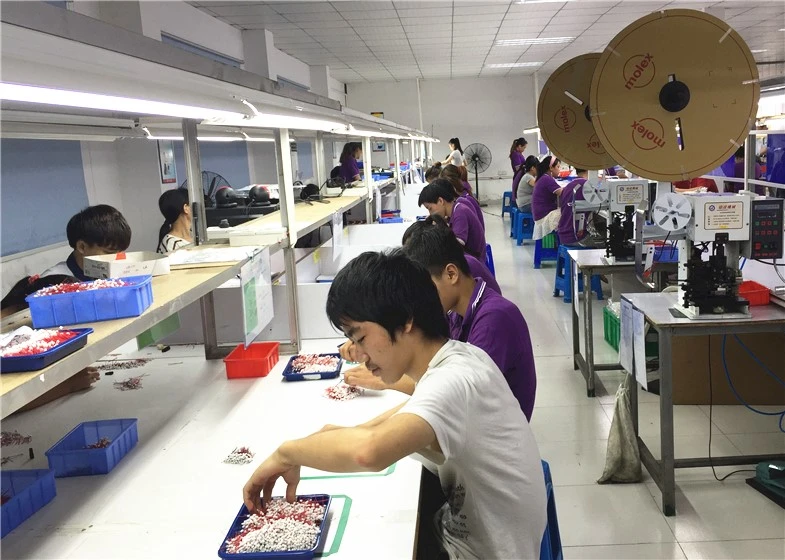

Our factory
ECOCABLES is an outstanding supplier specializing in the production and research and development of wire harnesses and cable assemblies. Since 2000, it has maintained an excellent reputation. All raw materials comply with ROHS standards and have passed strict SGS testing and factory ISO certification. All products have reached international quality standards.
Our factory is located in Dongguan, China, which is known as the "World Factory". We have a research and development team with 20 years of rich experience, helping users accurately position concepts, design drawings, configure materials specified by users and offer suggestions. This includes the design and manufacture of wiring harnesses, connectors, molds, etc.
Our Certificate
Our products have also passed the SGS certification. SGS certification is an international product certification that determines whether the products meet the standards from aspects such as quality, environmental protection and safety. Every product undergoes a very complex inspection process to ensure the details of each item, all for the purpose of providing better services.
The quality management system certification certificate is the guarantee that consumers trust us. When you choose products or customized services, you can rest assured to choose us because we have passed the screening and review of third-party institutions, and the quality of our products or customized services is very professional and reliable.
Shipping And Payment
Frequently Asked Questions
Q1. Can you supply samples before contract?
A: Yes, but customer should pay for the samples and courier.
Q2. What is your payment terms?
A: We use T/T mostly, others like D/P, L/C we do also.
Q3. What is your delivery terms?
A: We do FOB, CIF, CFR, CNF and EXW, FCA, DDU etc
Q4. Can you produce according to samples?
A: Yes, we do produce according to customers' sample and drawings, datas.
Q5. Do you have quality control?
A: We do 100% inspection and QC passed, some items we do two times of inspection before devliery.
