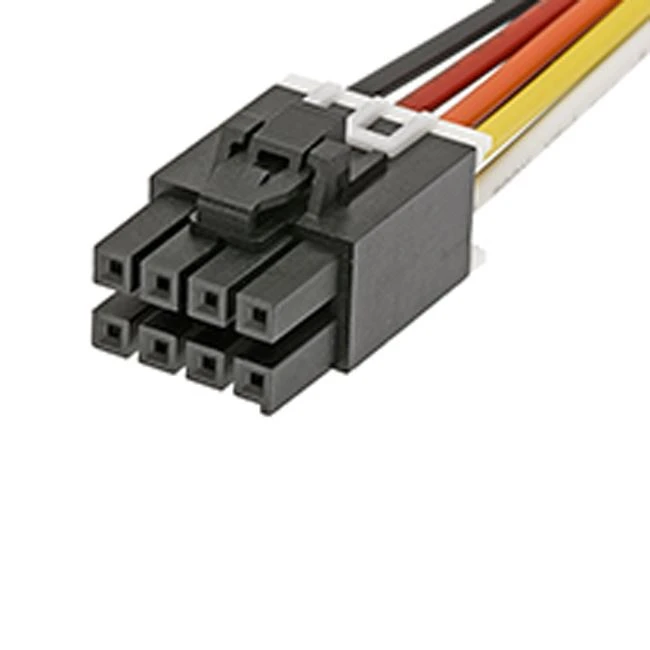

Ultra-Fit Power Connectors Wiring Harness

1. Multiple mechanically keyed color-coded options
2. Optional TPA (Terminal Position Assurance) retainer
3. Positive-lock housing with anti-snag design
4. Terminal interface with six independent points of contact

Product Name	Ultra-Fit Power Connectors Wiring Harness
Wire/Cable Type	UL 1061
Cable Length	300mm
Series	Molex, 45133 series
Application	Power, Wire-to-Wire
Connector to Connector	Ultra-Fit-to-Ultra-Fit
Circuits (Loaded)	8 Pins
Color - Resin	black
Gender	Female to Female
Material - Metal	High Conductivity Copper
Material - Plating Mating	Tin
Material-Plating Termination	Tin
Material - Resin	Nylon
Net Weight	42.7000/g
Number of Rows	2
Pitch - Mating Interface	3.50mm Pitch
Wire Insulation Diameter	2.35mm
MOQ	100PCS Ultra-Fit Power Connectors Wiring Harness

Ultra-Fit Power Connectors

Ultra-Fit Power Connectors provides color coding and keying options to eliminate mismatches in the same circuit size and provides a tangle-free function, allowing the terminal locking mechanism to be incorporated into the socket housing.

More Molex Connectors

451330201	451330203	451330210
451330401	451330403	451330410
451330601	451330603	451330610
451330801	451330803	451330810

Production Process


Wire cutting	Terminal crimp	Peeling	Tin plating

Assembly	Twist	Inspection	Test

Test Equipment

Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
