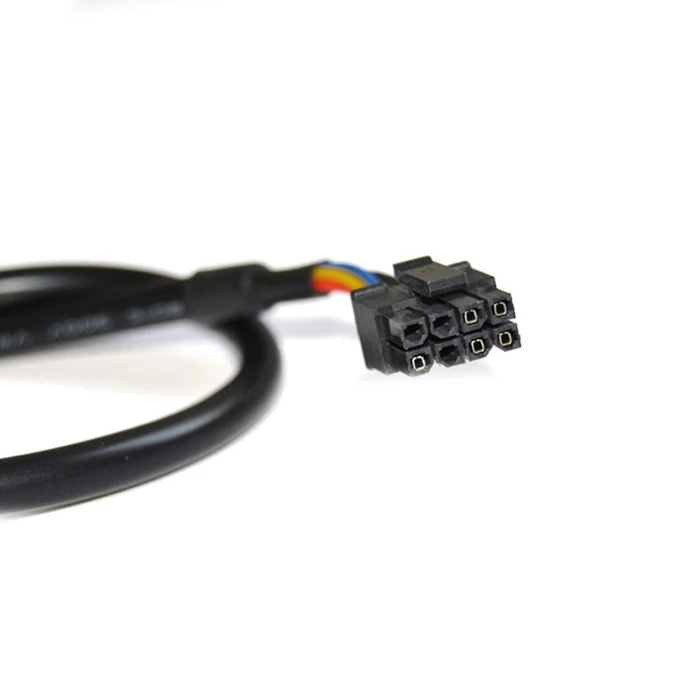

| Product | Molex Cable Harness Assembly |
| Application | game machine |
| Cable | 22 awg*5c |
| Cable Color | black |
| Core Color | black, red, green, yellow, blue |
| Housing 1 | 8 circ., pitch: 3 mm; dual row, molex 0430250800 |
| Terminal 1 | 20-24awg, molex 0430300007 |
| Housing 2 | 2x9 circ., pitch: 2.54 mm, double row, molex 0901420018 |
| Terminal 2 | 24awg, molex #0901190109 or #0901190110 , tyu #tu5005t |
| Terminal 3 | 2x3 circ., pitch: 2.54 mm, double row, molex 0901420006 |
| Service | OEM ODM accept |
| MOQ | 100PCS Molex Cable Harness Assembly |

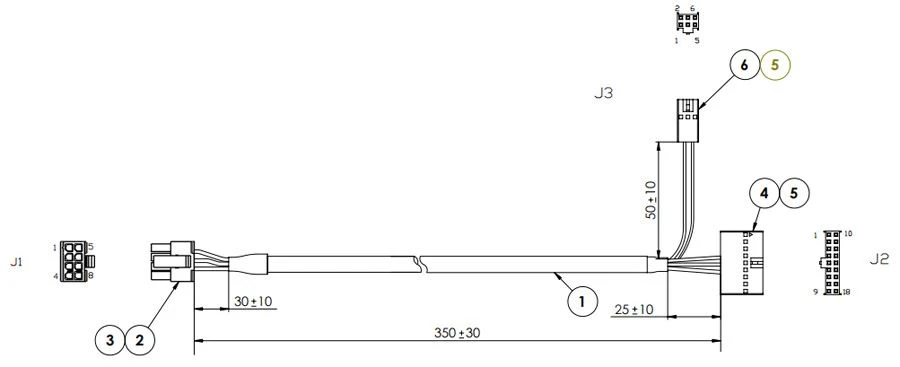

Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Shipping And Payment
FAQ
1. Are you trading company or manufacturer?
We are factory in Dongguan, welcome visit our factory any time
2. What files do you need for a wire harness Assembly or customized quotation?
Drawing, or component type nuber#, specification or physical sample, Equipped with professional equipments, technicians & skilled employees, OEM & customized service are welcome.
3. Are these products quality assured?
All of our products are RoHS compliant, wire harness are UL, CSA, SAA,VDE/CE certificated. We have strict QC, passed ISO9001:2015 quality control system , all products are 100% tested before delivery.
4. Do you have enough capacity?
Our factory have about 30% spare capacity, your order will be accomplished in time.
