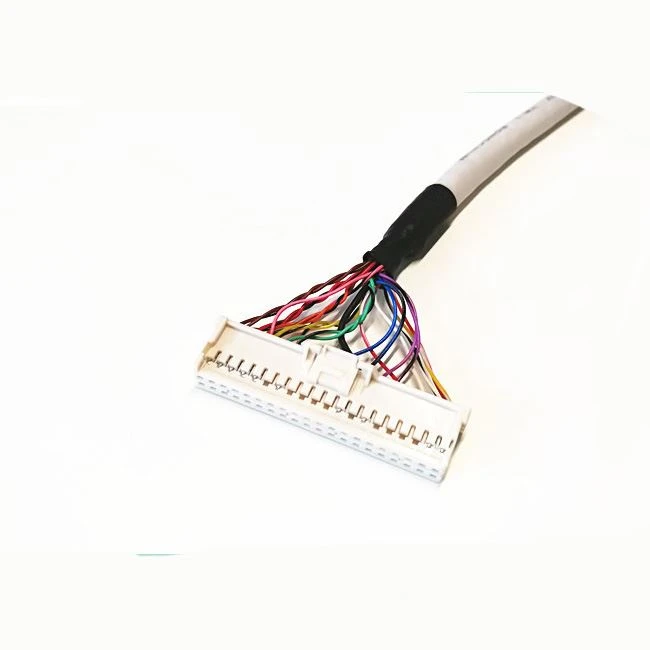

Product Name	Molex 501646 IGrid Wire-to-Board Wire Harness
Cable	UL20276#30AWG+AEB Black or Beige (8P,10P,12P,15P &20P)
Cable Length	Option
Jacket Color	Option
Connector	Molex 501646-4000
Rows	Dual Rows
No. of Positions	40 Pins
Connector Pitch	2.0MM
Rows	Dual Rows
Operating temperature	-40°C to +105°C
Material	All materials are compliant with Rohs
ISO certificate	ISO9001:2008
Performance Test:	100% electrical test for Molex 501646 IGrid Wire-to-Board Wire Harness
Sample	Available

Mates With Part(s):

iGrid Vertical Header (Tin) 501645 Series, (Gold) 503091 Series

iGrid Right-Angle Header (Tin) 501876 Series

Use With Part(s):

iGrid Receptacle Terminal (Tin) 22-26 AWG 501647 Series, 26-28 AWG 501648 Series

iGrid Receptacle Terminal (Gold) 503095 Series

More Molex Connectors

5016461000	5016461001	5016461002	5016461004	5016461006	5016461200	5016461201
5016461202	5016461204	5016461206	5016461400	5016461401	5016461402	5016461404
5016461406	5016461600	5016461601	5016461602	5016461604	5016461606	5016461800
5016461801	5016461802	5016461804	5016461806	5016462000	5016462001	5016462002
5016462004	5016462006	5016462200	5016462201	5016462202	5016462204	5016462206
5016462400	5016462401	5016462402	5016462404	5016462406	5016462600	5016462601

Why Choose Us

1. Satisfy one-stop purchasing service from materials to finished products.

2. Provide one-to-one refined service, from understanding your requirements to completing production.

3. Finish drawing according to customer's requirement.

4. Strictly control and supervise every production process.

Production Process


Wire cutting	Terminal crimp	Peeling	Tin plating

Assembly	Twist	Inspection	Test

Test Equipment

Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
