These JST SM battery wiring harnesses are 505mm long. One end of the cable do tin plating. The other end of cable has a matching female JST SM type receptacle connector. We like the solid and compact nature of these connectors and the latch that keeps the cable from coming apart easily.
| Product Name | JST SM battery wiring harness |
| Wire | UL 1571 AWG #26 |
| Wire Length | 505.0mm±5.0 (3X) |
| Wire Color | white red black |
| Insulation | PVC, OD:Φ1.0mm |
| Receptacle Housing | JST SMR-03V-B, black, 2.5mm pitch |
| Pin Contact | JST SYM-001T-P0.6 |
| Wire End | Tin plating, tin=4.0±0.5mm(3X) |
| Working Temperature | -20~60° c |
| Storage Temperature | -30~95° c |
| Application | E-bike battery, MTB battery, range extender, in-tube battery E-motorcycle battery, moped battery, cargo battery Smart device battery, smart puricare mask battery |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |

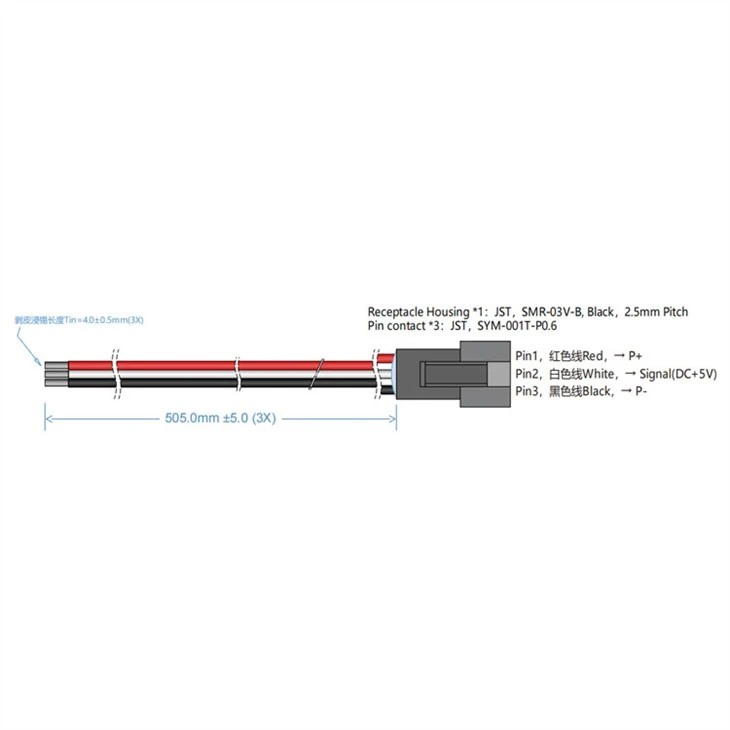

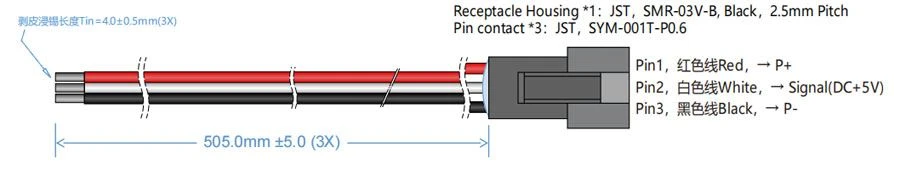

Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Shipping And Payment
FAQ
Q1: Do you customize products?
A1: Yes, we custom wire harness according to customers' request, please contact us!
Q2: Can I get some samples?
A2: Yes, free samples are available for evaluation and freight cost to be collected by customer.
Q3: What is essential in order to get a wire harness quote?
A3: It is best if we have your drawing, but if not, you can provide our details, and the drawing and quotation will be sent to you accordingly.
Q4: Do you test all your goods before delivery?
A4: Yes, we have 100% test and check all goods before shipment.
