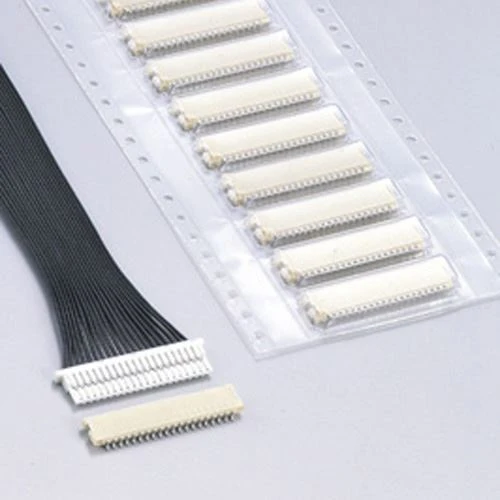

Product Name	JST 1 MM Pitch SHL Connector Wire Harness
Wire/Cable	UL/VDE Cable
Length	Custom length
Connector Series	SHL connector
Pitch	1MM Pitch
Contact	SSHL-003T-P0.2
Temperature range	-25˚C to +85˚C
MOQ	100PCS JST 1 MM Pitch SHL Connector Wire Harness

More Connectors

* Thin design

The mounting height of the normal type is only 1.8mm, and the offset type is only 1.4mm.

* Low insertion force

Adopt unique spring action structure contact, easy to insert into the shell, low insertion force, clear click feeling.

SHL Connector

SHLP-02V-S-B	SHLP-05V-S-B	SHLP-06V-S-B	SHLP-07V-S-B	SHLP-08V-S-B
SHLP-10V-S-B	SHLP-11V-S-B	SHLP-12V-S-B	SHLP-14V-S-B	SHLP-16V-S-B
SHLP-20V-S-B	SHLP-22V-S-B	SHLP-26V-S-B	SHLP-30V-S-B

Production Process


Wire cutting	Terminal crimp	Peeling	Tin plating

Assembly	Twist	Inspection	Test

Test Equipment

Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
