Product Name | 1MM JST SHD Connector Wire Harness |
Wire/Cable | UL/VDE Cable |
Length | Custom length |
Connector Series | SHD connector |
Pitch | 1MM Pitch |
Contact | SSH-003GA-P0.2 |
Housing | SHDR-20V-S-B SHDR-30V-S-B SHDR-40V-S-B SHDR-50V-S-B |
MOQ | 100PCS 1MM JST SHD Connector Wire Harness |
Service | OEM ODM accepted |

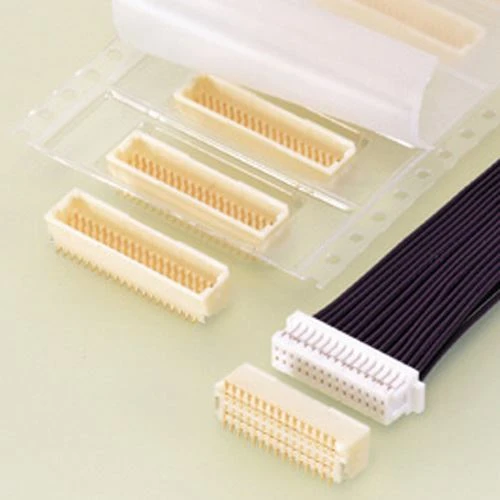

SHD Connector
The SHD connector is compact, with a top entry type mounting height of 6.3 mm, a side entry type mounting height of 5.5 mm, and a width of 5.0 mm for top entry type and 5.1 mm for side entry type.
● Compact, low profile design
● Anti-misinsertion features
● Socket and protrusion
● Header designed for vacuum pick and place robot
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Our Advantage
1. Low MOQ 10pcs
2. 1-3 days prototyping
3. Competitive prices
4. BMW supplier
5. ISO certified
6. Design service
7. 24 hours service
8. Fast delivery
Shipping And Payment
FAQ
Q1: What's the delivery time?
A: It usually takes about 3-15 days to produce the product, but he exact delivery time depends on the order quantity you place the order.
Q2: What is your term of delivery?
A: We accept EXW and FOB.You can choose the one which is the most convenient or cost effective for you.
Q3: How do you solve quality problems?
A: We have 100% test before delivery. But If there is any quality problem or question, we could offer technical support or return service.
