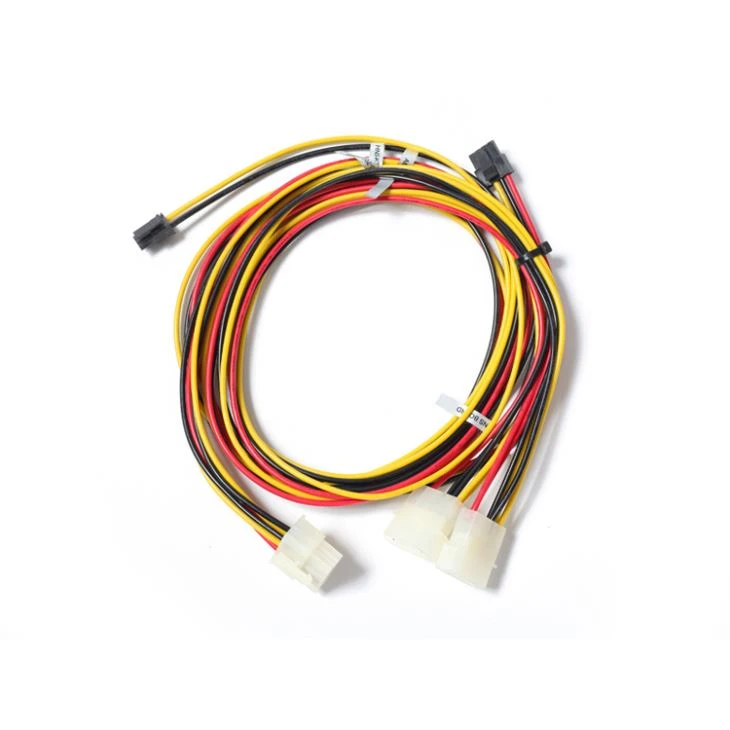

Product Name | Universal Sportster 4 Pin Wiring Harness |
Application | industrial |
Wire | ul1007 18awg Universal Sportster 4 Pin Wiring Harness |

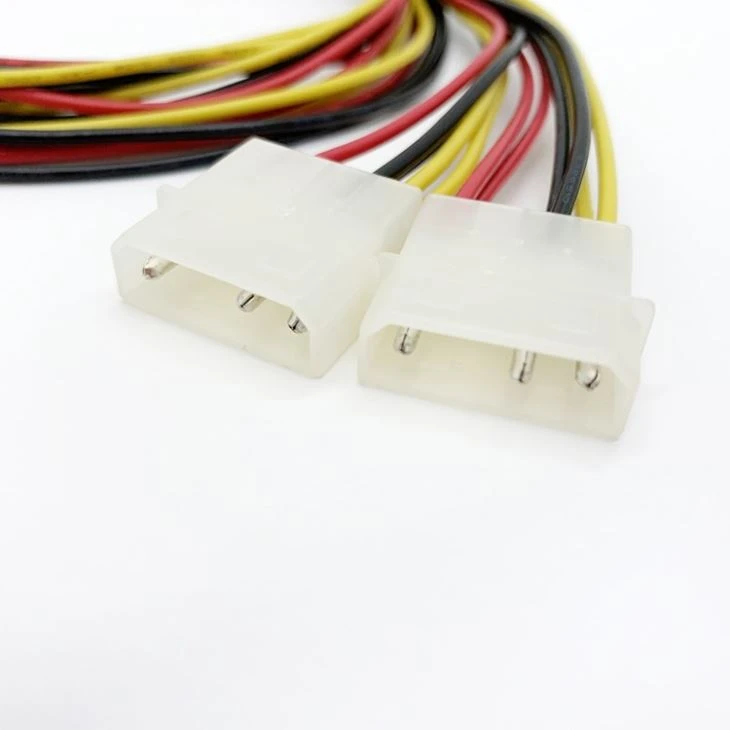

Housing 1 | 1x4, pitch: 5.08mm (disk drive conn.) |
Terminal 1 | 14-20awg te #60620-1 / adamtech #dmc-01-r |

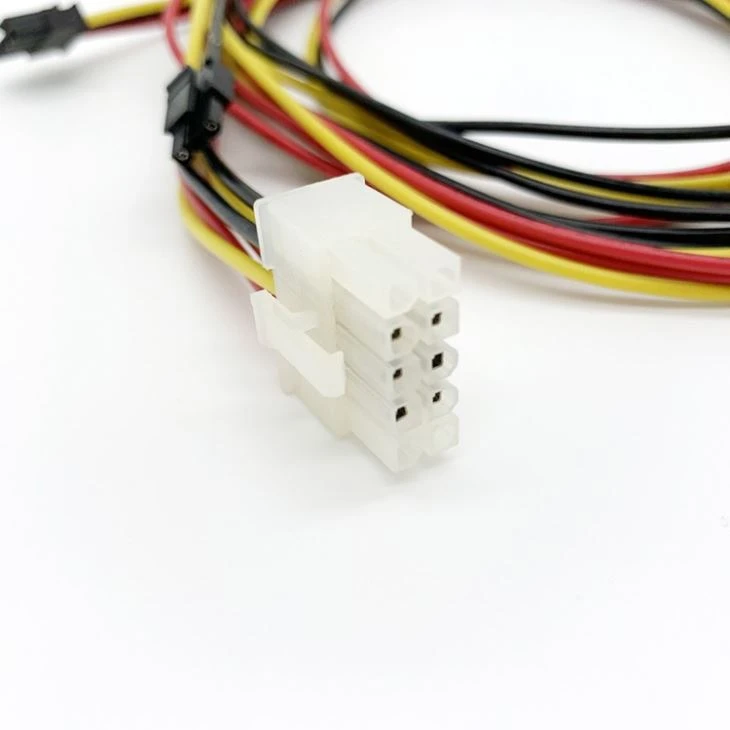

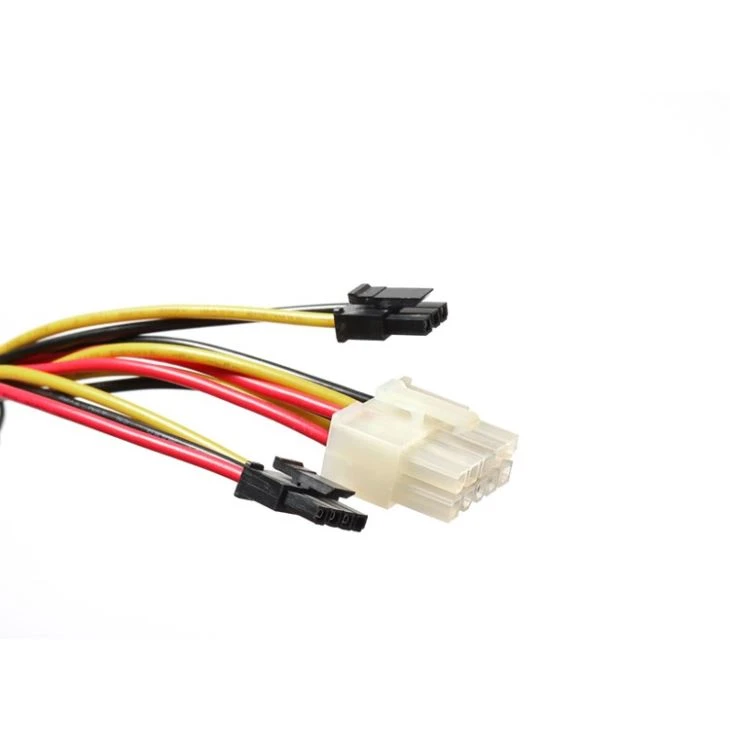

Housing 2 | 10 circ., double row, pitch: 4.2mm, molex 0039012105 |
Terminal 2 | 18-22awg, molex 0039000213 |
Housing 3 | 3 circ., pitch: 3mm, micro-fit, molex 0436450300 |
Housing 4 | 4 circ., pitch: 3.0mm, molex 0436450400 |
Terminal 3, 4 | molex 0430300007; tyu ty3085tph-a |
Conductor | Tinned Copper |
MOQ | 100PCS Universal Sportster 4 Pin Wiring Harness |
The Use of UL1007 Wire
Electrical internal wiring; or contact oil at temperatures not exceeding 60℃ or 80℃, whichever is applicable. Labels can be indicated as follows: 600 V Peak - for electronic use only.
Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Shipping And Payment
FAQ
Q1: Do you customize products?
A1: Yes,we custom wire harness according to customers' requirement. Pls send us samples or drawing then we can move on.
Q2: Can you provide sample? Are they free?
A2: Yes, we could offer the sample for free charge but you need pay the cost of freight.
Q3: What is essential in order to get a wire harness quote?
A3: Drawing of wire harness.
Q4: If customer doesn't have a drawing, what else solution in order to get a quote?
A4: You just provide as many details as possible about your products including wire lengths, gauges, circuits, connector type, etc., and we can quote for you.You can also send us the sample, we will quote and make the sample for your approval.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% computer testing before shipment.
