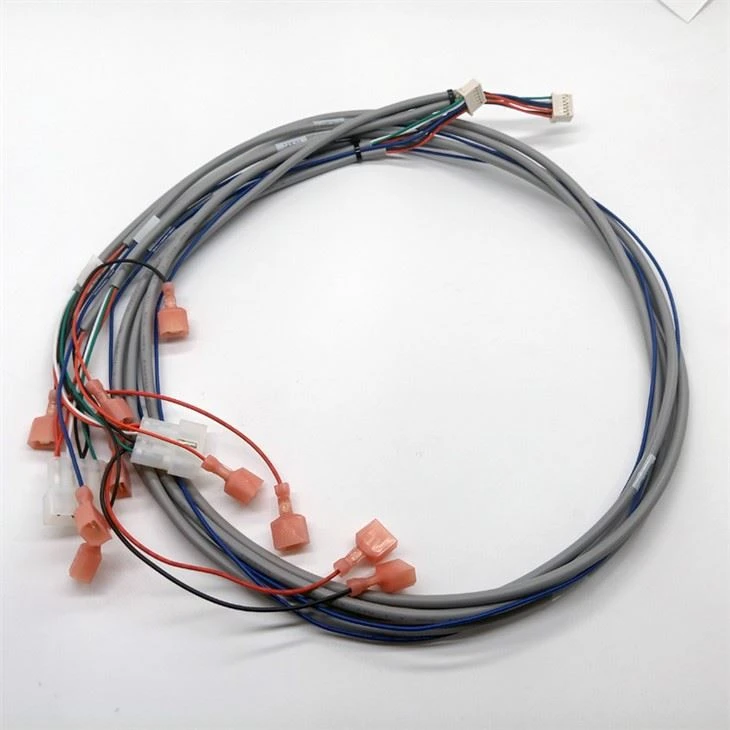

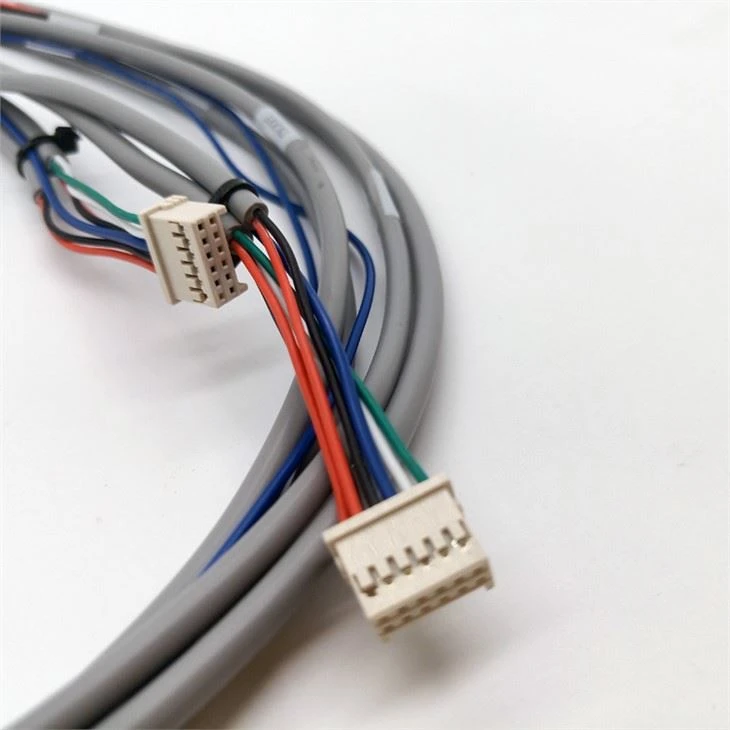

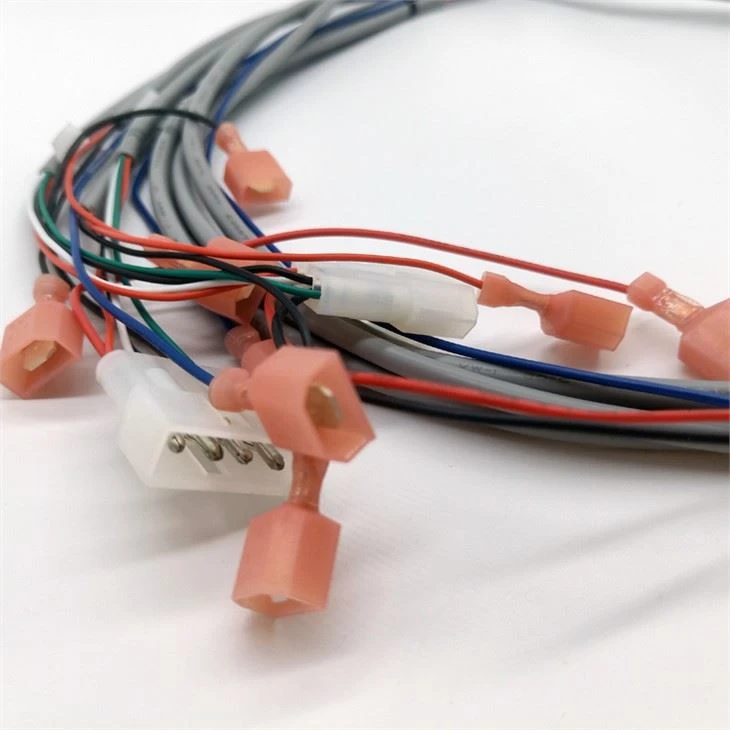

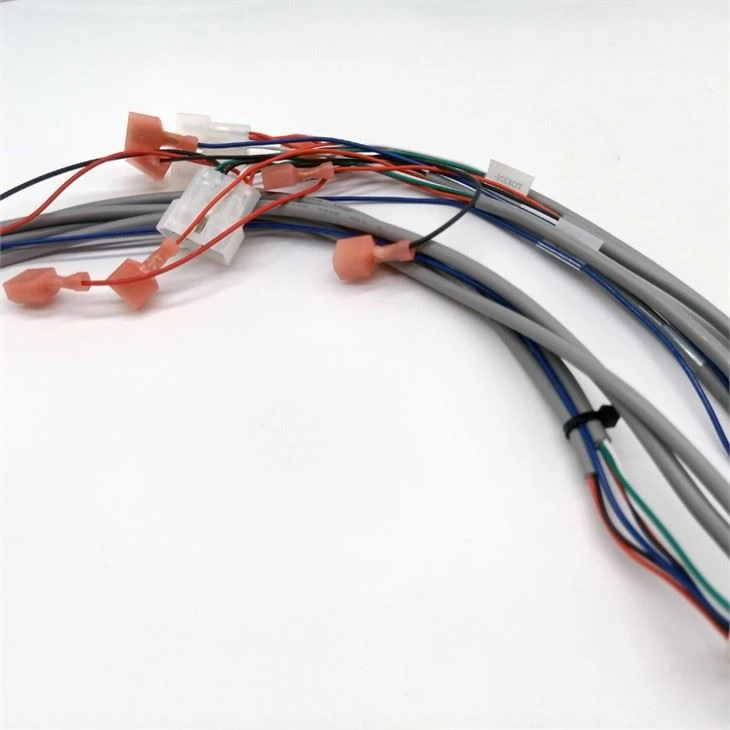

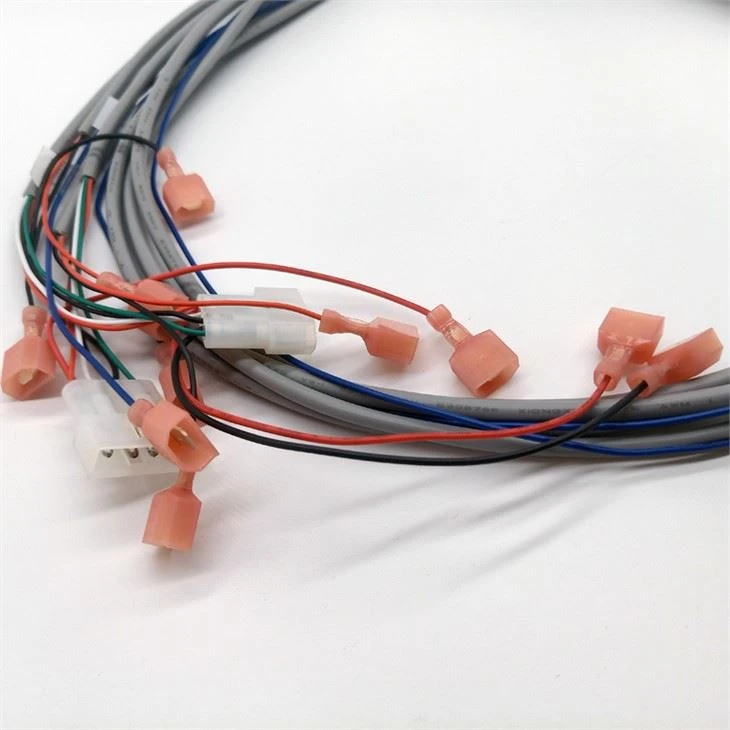

Product Name | molex connector cable assembly |
Cable | UL2464 22AWG 2C(red black) jacket gray |
Cable | UL2464 22awg 4C(red black white green) jacket gray |
Wire | UL1007 22awg(ts17*0.16*1.6) red*1 black*1 |
| Wire | UL1007 22awg(ts17*0.16*1.6)blue |
| Connector housing | MLX501646-1200 (equivalent) |
Terminal | MLX501647-1000(equivalent) |
| Connector housing | MLX03092042(equivalent) |
| Terminal | MLX02092116(equivalent) |
| Terminal | 250*0.8 female RED nylon |
Cable tie | cable tie black |
| Label | white background + black print |
Molex connectors come in thousands of sizes and shapes, but the most common style utilizes a pin-and-socket interconnect: Four independent pieces join a single wire to another wire.

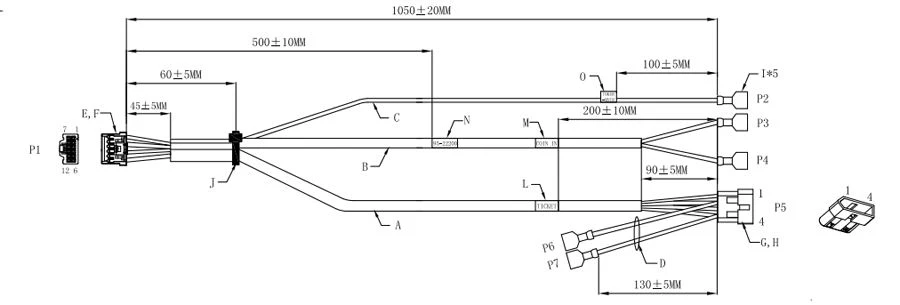

Drawing
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Why Choose Us
 |  |  |  |  |  |
| Professional team | BMW supplier | Free sample | Quality guarantee | Processing custom | Drawing customized |
Shipping And Payment
FAQ
Q1: Do you customize products?
A1: Yes,we custom wire harness according to customers' request, please contact us!
Q2: Can I get some samples?
A2: Yes, free samples are available for evaluation and freight cost to be collected by customer.
Q3: What is essential in order to get a wire harness quote?
A3: It is best if we have your drawing, but if not, you can provide our details, and the drawing and quotation will be sent to you accordingly.
Q4: Do you test all your goods before delivery?
A4: Yes, we have 100% test and check all goods before shipment.
