| Product name | Custom M12 cable |
|
Cable color |
Customized color |
|
Cable jacket |
PVC, PUR, drag chain cable, moving cable, or customized |
|
Cable length |
Customized length |
| Connector type | M12 field wireable connector, M12 bulkhead connector |
|
Connector pin number |
2, 3, 4, 5, 6, 8, 12, 17 pin |
| Housing coded | A, B, C, D, X, Y, S, T, K, L, M |
|
Connector shape |
straight or right angled |
|
Connector Gender |
Each end can be male or female |
|
Termination |
Screw or solder type |
| Shell material | Metal or plastic material |
|
Contact material |
Gold-plated copper |
|
Mounting type |
Front and back mount, PCB mount |
|
Shielding |
Shielded or not |
|
IP rate |
IP67 |
M12 Cable Assemblies And M12 Ethernet Cable
M12 cables, also known as M12 cable assemblies, get their name from the connectors on either one of its ends or both. These cables were overmolded to the M12 connector into a cord set, to make the connection of the M12 connector and cable waterproof. M12 cable assemblies offer a variety of services, including actuators and sensors applications, automation, and industrial Ethernet data transmissions.
However, for applications that involve data transmissions, we must use M12 shielded cables for better results. At ECOCABLES, we thrive in the production of a variety of customized M12 cable assemblies.
| M12 cable for sensor, actuator | M12 A coded cable | M12 D coded cable | |||
|
|
|
||||
| M12 Profibus, Interbus cable | M12 B coded cable | ||||
|
|
|||||
| M12 Ethernet cable | M12 D coded cable | M12 X coded cable | M12 Y coded cable | ||
|
|
|
|
|||

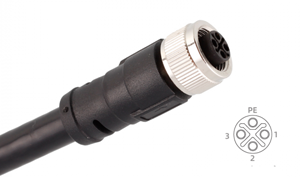

| M12 power cable | M12 S coded cable | M12 T coded cable | M12 K coded cable | M12 L coded cable | M12 M coded cable |
|
|
|
|
|
|
|
| M12 extension cable | M12 to M12 cable | M12 to M8 cable | M12 to USB cable | M12 to DB9 cable | M12 to DB15 cable |
|
|
|
|
|
|
|
| M12 to DB25 cable | M12 to 3 BNC cable | ||||
|
|
|
||||

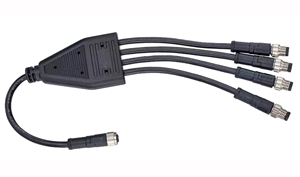

| M12 splitter cable | M12 T splitter cable | M12 Y splitter cable | M12 multi-channel splitter cable | ||
|
|
|
|
M12 Coded Connector Pinout
