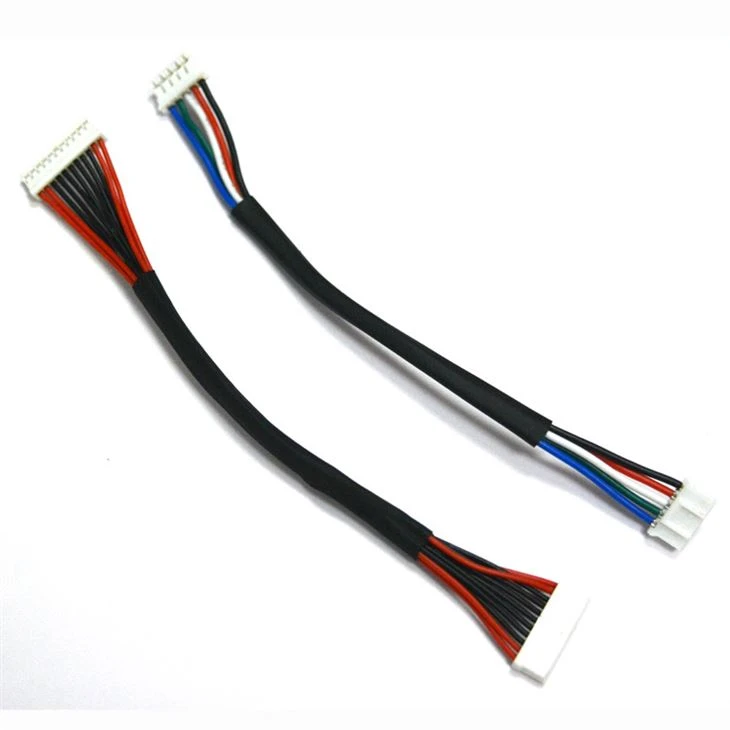

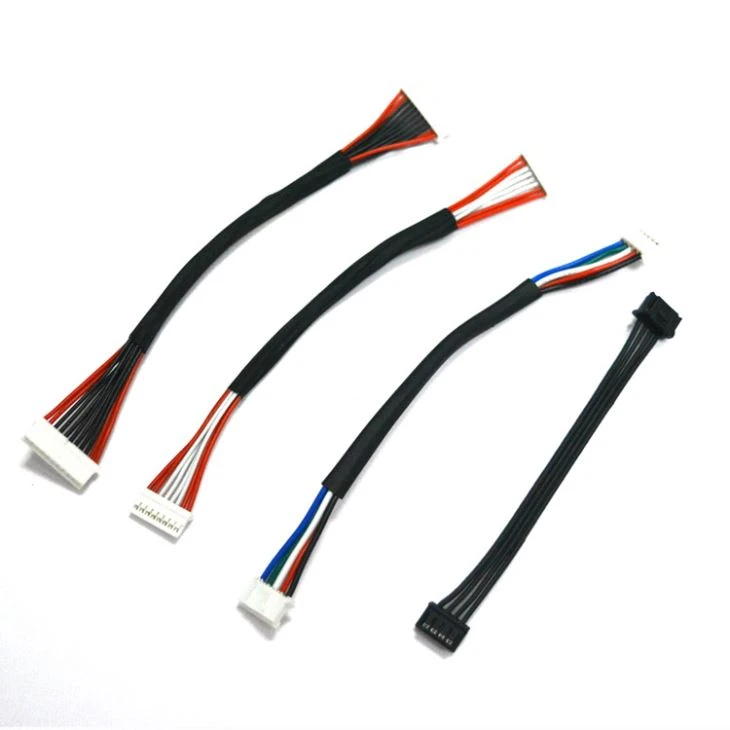

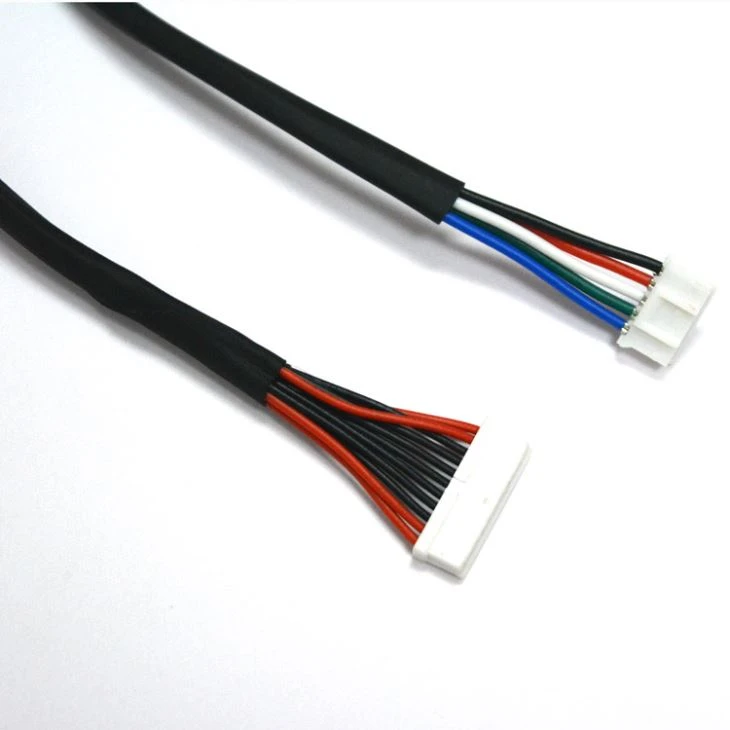

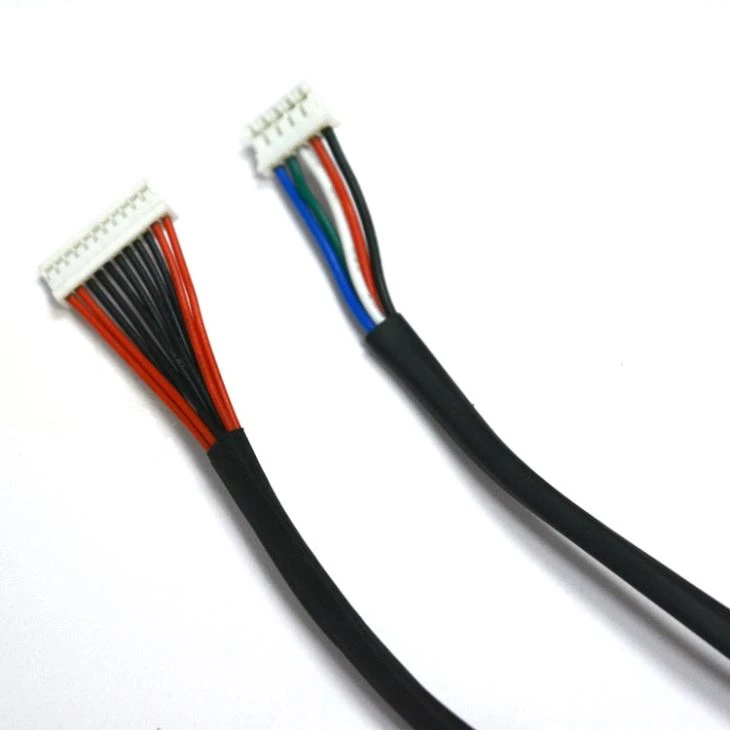

XH 2.54MM Electrical Machinery Wire Harness

Main features

Wire specifications:

Cable type: UL1007 24AWG

Rated voltage: 300V

Insulation material: Polyvinyl chloride (PVC)

Conductor material: tinned copper

Temperature rating: up to 105°C

Stranded: 7 x 32

Customizable length:

Standard cable length is 160mm, but we can customize it to your specific requirements. Just tell us the length you need and we will tailor it for you.

Connector type:

The cable assembly comes pre-installed with a 5-pin connector (XH 2.54MM). If you need a different pin configuration, we can provide customization services.

XH Connector

XH connectors are developed based on the high reliability and versatility of our NH series connectors. The connector is small and the installation height is 9.8 mm.

● Original folded beam contact

● Box-shaped shrouded header

● Header with a boss

● Interchangeability

● Conforming to the HA terminal

Application fields

XH 2.54MM motor cable assemblies are ideal for a variety of motor-related applications including:

1. Robotics: Use it to connect motors to control boards, sensors, and other components in your robotics project.

2. Drone: Ensure reliable power supply between the motor, flight control, and ESC (electronic speed controller).

3. Industrial machinery: applied to manufacturing equipment, conveyor belts and automation systems.

4. Automotive: Connect motors in automotive applications such as window regulators, seat adjusters, and windshield wipers.

How to order

To order an XH 2.54MM motor cable assembly, simply contact our sales team with your specific requirements. We will provide competitive prices and ensure timely delivery.

For inquiries or to request a quote, please email sales003@ecocables.cn or call +1 (123) 456-7890.

Why choose our motor cable assemblies?

Quality assurance:

Our cable assemblies meet UL AWM Style 1007 and 1569 standards for safety and reliability.

Tinned copper conductors minimize resistance and enhance conductivity.

Flexibility and durability:

PVC insulation offers flexibility, making installation and wiring easy.

It is rated for temperatures up to 105°C to withstand harsh environments.

Time-saving solutions:

Pre-installed XH 2.54MM connector to save you installation time.

Customizable lengths eliminate the need for cutting and splicing.

Production Process

Wire cutting	Terminal crimp	Peeling	Tin plating
Assembly	Twist	Inspection	Test

Test Equipment

Our Advantage

1. Low MOQ 10pcs

2. 1-3 days prototyping

3. Competitive prices

4. BMW supplier

5. ISO certified

6. Design service

7. 24 hours service

8. Fast delivery

Shipping And Payment

FAQ

Q1. What's the MOQ?

A: MOQ is 10pcs. And according to your quantity, you will get the corresponding discount.

Q2. When can we get a respond from you?

A: All the inquiry can be handled within 24 hour.

Q3. How about the after service?

A: If you have any questions about the product, please take some photos and email us, we will provide you with the best solution after confirmation.

Q4. What is the XH 2.54MM Motor Cable Assembly?

A: The XH 2.54MM Motor Cable Assembly is a removable, press-fit connector developed based on the high reliability and versatility of the NH Series connectors. Here are some key details about it:

Pitch Dimensions: The pitch or distance between connectors is 2.54 mm.

Current Rating: These cables are typically rated at 2A.

Voltage Rating: They are rated for voltages up to 25V.

Color Coding: Cables are color coded with red for positive and black for negative.

These components are used in a wide range of applications including appliances, automotive, robotics, lighting, PCB control panels, speakers, audio systems, batteries and home appliances due to their reliability and ease of connection

Q5. What is the insulation resistance of the XH 2.54MM motor cable assembly?

A: XH 2.54mm motor cable assemblies have a minimum insulation resistance of 1,000 MΩ. This high level of insulation resistance ensures that the component provides a safety barrier against leakage, which is critical to maintaining circuit safety and performance.

Q6. What is the withstand voltage of XH 2.54MM motor cable assembly?

A: The XH 2.54mm motor cable assembly has a voltage withstand rating of 1,000 VAC per minute. This specification represents the maximum voltage a component can withstand for one minute without breakdown or failure1. It is an important safety and performance characteristic of electrical components, ensuring that they can handle specified voltages during operation.

Q7. What type of wire is suitable for the XH 2.54MM motor cable assembly?

A: The XH 2.54mm motor cable assembly is compatible with wires ranging from AWG #30 to #22. This means it can accommodate a variety of wire sizes, often for different current and voltage requirements. Wire suitable for such components is usually made of tinned copper, which has good electrical conductivity and resistance to oxidation1. For a specific application, it is important to select a wire gauge that matches the circuit's current and voltage requirements to ensure safe and efficient operation.

Q8. What is the PC board thickness suitable for the XH 2.54MM motor cable assembly?

A: The XH 2.54mm motor cable assembly is suitable for PC board thicknesses of 1.6 mm. This specification ensures proper mating and connection of components when mounted on a printed circuit board (PCB).
