Product Name | 16 Pin Flat Ribbon Cable |
Connector | 2.54IDC-16P |
Wire | UL2651 28AWG (Other: 32AWG 30AWG 26AWG 24AWG) |
Wire Color | Grey, red side |
Wire Pitch | PH1.27MM (Other: 0.635MM 1.0MM 2.0MM 2.54MM) |
Wire Structure Material | Plated before stranded or other |
Conductor | 7/0.12MM (Other: 7/0.08MM 7/0.09MM 7/0.1MM 7/0.16MM 7/0.2MM) |
Package | 1pcs × Flat Ribbon Cables |
Service | OED ODM Accepted |
Test | 100% Testing Inspection |
Product Introduction

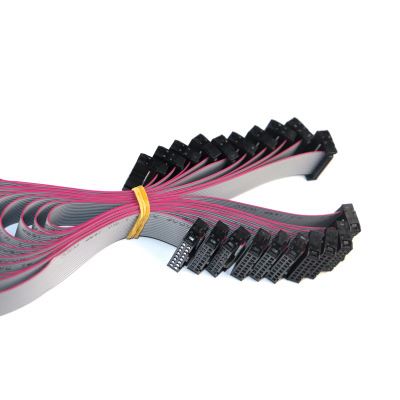

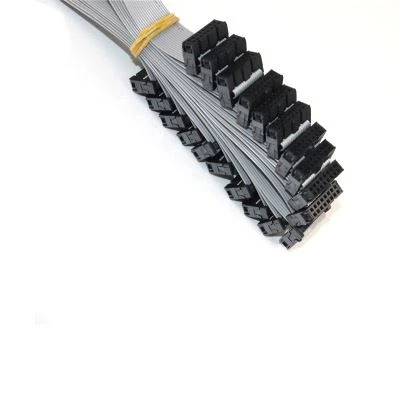

16 Pin Flat Ribbon Cable is a cable that is flat as opposed to being round or circular. Often flat cables can contain multiple conductors, which are all located on the same horizontal plane. The biggest advantage of the ribbon cable is that they can be terminated on a large scale with specially designed insulation displacement connectors (IDCs). It is usually used as interconnects for internal peripherals in computers, such as hard drives, CD drives, and floppy drives. On some older computer systems, they are also used for external connections. We provide you comprehensive customized service on this product, including the wire length and pin number, and we can work out a best best cable solution for your applying occasions, as long as you give us specifications or drawing.
Features
16 Pin Flat Ribbon Cable is produced under 100% test inspection, and it achieves ease of handling, beacause it folds and bends readily, conforms to the mounting area, fastens easily with clamps, adhesive, or double-faced tape, and eliminates the installation and lacing difficulties associated with round wire cabling. Visible conductors in a fixed position within the dielectric simplify coding, inspection and circuit tracing.
More RAST 5 Tab Header (Positive Lock connector Style)
521385-5 | 1-521385-5 | 2-521385-5 | 3-521385-5 | 4-521385-5 |
521386-5 | 2-1969352-5 | 521384-6 | 1-521384-6 | 2-521385-6 |
1-521385-6 | 521385-6 | 521778-6 | 521384-7 | 1-521384-7 |
2-521384-7 | 3-521384-7 | 521385-7 | 1-521385-7 | 2-521385-7 |
3-521385-7 | 1955660-7 | 521384-8 | 1-521384-8 |
More AMP DUOPLUG 2.5 Female Connectors Fully Loaded
2-284865-6 | 284930-6 | 2-284930-6 | 284932-6 | 1-284932-6 |
2-284932-6 | 1-1241121-6 | 3-1987611-6 | 284865-7 | 284930-7 |
284932-7 | 284865-8 | 2-284865-8 | 284930-8 | 284932-8 |
2-284932-8 | 3-829868-8 | 284865-9 | 284932-9 | 3-829868-9 |
1-284865-0 | 2-284865-0 | 1-284932-0 | 1-284930-1 | 1-284932-1 |
1-284865-2 | 2-284865-2 | 4-284932-3 | 3-829869-3 |
Production Process
 |  |  |  |
| Wire cutting | Terminal crimp | Peeling | Tin plating |
 |  |  |  |
| Assembly | Twist | Inspection | Test |
Test Equipment
Good Quality comes from strict control on every process. The best equipment, the excellent technology, make us get a lot of recognition from our customers.
 |  |  |  |
Shipping And Payment
FAQ
Q: Are you trading company or manufacturer?
A: We are wire harness factory.
Q: Are these products quality assured?
A: All of our products are ROHS compliant, cables are UL/VDE/CCC/CE/CEA certificated. We have strict QC, passed ISO9001 Quality control system, all products are 100% tested before delivery.
Q: How long is your delivery time?
A: Generally it is 10-20 workdays, it is according to quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: If I want to customize products, how will it work?
Equipped with professional equipments, technicians & skilled employees, OEM service are welcome. Pls offer us drawings or pictures.
